Description

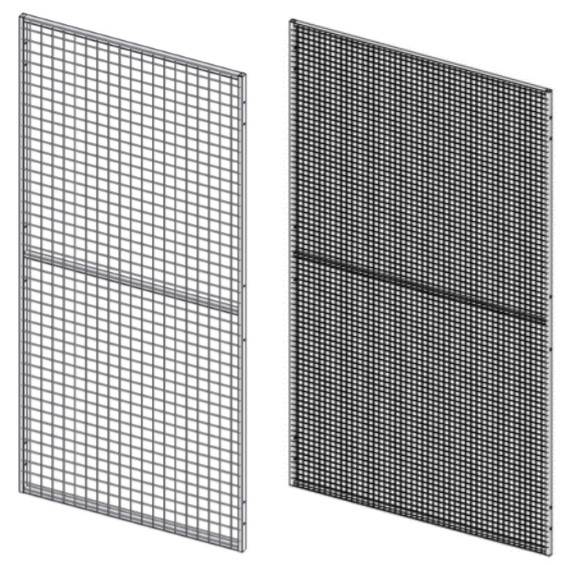

Tubular frame steel mesh panels - are available in eight widths and two heights, panels can be joined in height using connecting tubes in combinations of the 2200mm & 800mm panel heights to meet the requirements. If the required height cannot be reached they can be cut and capped on site using special profile sections or cut and welded prior to delivery. A range of fixing options including posts, post extensions, floor feet and corner brackets make a versatile system to meet most partitioning needs. The Troax UX 450, UR 325 and UR 350 modular industrial mesh wall panel systems create fencing partitions, storage cages, enclosures and dividing walls. The UX tube frames are 30mm x 20mm and the UR tube frames are 19mm x 19mm. Available in powder coated and hot-dip galvanised finishes.

General information
Features

A versatile modular mesh panel system that meets the demands for partitioning in a wide range of applications and environments

Material

Carbon steel

Shape

Rectangular

WarrantyDescription

Our warranty shall apply when the products supplied by Troax and installed in accordance with our standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required

Uniclass 2015
Partition panels (Pr_25_71_57_60)Primary
Digital objects
PlatformCompatibleVersionCertified to
IFC
IFC2X3 2 1.3
Revit
Revit 2016 3 2.0
