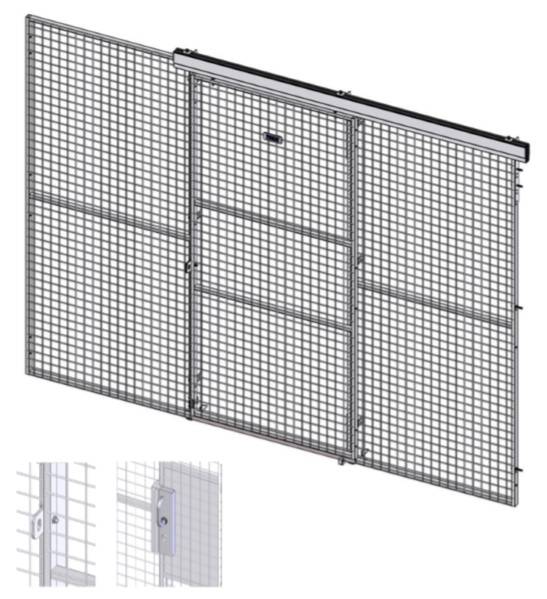

Single Sliding Door - UX 450 (50 x 50mm mesh) & UX325 (25 x 25mm mesh) - steel mesh sliding doors are available in a range of opening widths and heights. Locking options such as a padlock, euro cylinder and ASSA can be incorporated. Doors are available in heights from 2200mm to 4500mm. They are compatible with our UX 450, UR 325 and UR 350 modular mesh wall panel systems to create fencing partitions, storage cages, enclosures and dividing walls. UX tube frames are 30 x 20mm. UR tube frames are 19 x 19mm. Top guide rails are aluminium, which keep running bearings in place. The rails are supplied in lengths 2200, 2500 & 3000mm to be cut or joined to achieve the required lengths.

General information

Runs on overhead composite trolleys with a guide angle through a composite block


Carbon steel mesh panels, fixings and aluminium rail


Our warranty shall apply when the products supplied by Troax and installed in accordance with our standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required

Uniclass 2015
Sliding door and partition sets (Pr_30_59_24_80)Primary
Digital objects
PlatformCompatibleVersionCertified to
IFC2X3 2 1.3
Revit 2015 2 1.3
