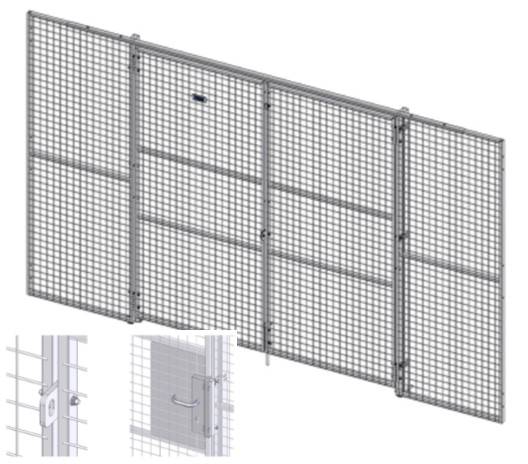

Steel mesh partition wall - hinged double door, available with various locking options, available in powder coated and hot-dip galvanised finishes.
Double Hinged Door - UX 450 (50 x 50mm mesh) & UX 325 (25 x 25mm mesh) - steel mesh hinged doors are available in a range of opening widths and heights. Locking options such as a padlock, mechanical digital, euro cylinder, ASSA, electric strike and emergency exit can be incorporated. Doors are available in heights from 2200mm to 4500mm. They are compatible with our UX 450, UR 325, and UR 350 modular mesh wall panel systems to create fencing partitions, storage cages, enclosures and dividing walls. UX tube frames are 30 x 20mm. UR tube frames are 19 x 19mm.
Finish | Powder coated and Hot-Dip Galvanised |
Material | Carbon steel |
Shape | Rectangular |
WarrantyDescription | Our warranty shall apply when the products supplied by Troax and installed in accordance with our standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required |
Uniclass 2015 |
Platform | Compatible | Version | Certified to |
---|---|---|---|
![]() | IFC2X3 | 2 | 1.3 |
![]() | Revit 2015 | 2 | 1.3 |
