Built under wine cabinet - 60cm wide
Verified by manufacturer 21 hours ago

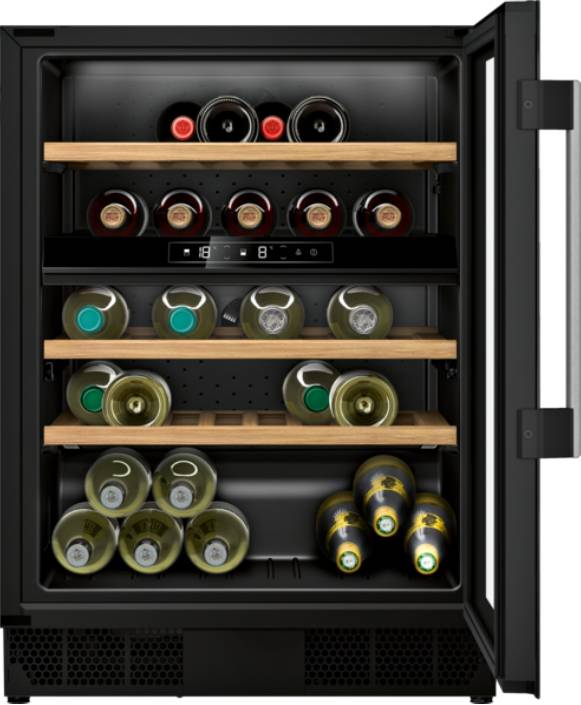

N 70, wine cooler with glass door, 82 x 60 cm.
Application
For domestic applications.
Description
N 70, wine cooler with glass door, 82 x 60 cm.
Front recess to allow for plinth installation and ventilation, reversible glass door with stainless steel bar handle, UV filter protection, 38 dB, dual zone, electronic temp display, LED light with soft start, acoustic door open signal, five shelves (three bamboo), 44 bottle capacity, inner wall colour black.
Features and benefits:
- Stock up to 44 bottles.
- One shelf on telescopic rails.
- Temperature zone (5–20°C) with two temperature cavities.
- Interior light: illuminate the wine cooler with a kitchen highlight.
General information
Color | Black |
Material | Glass Stainless steel |
Shape | Rectangle |
Length | 581 mm |
Width | 598 mm |
Height | 818 mm |
Warranty description | Two year |
Uniclass | |
CAWS | N11/40 Appliances N11/360 Appliances |
Specification data - Refrigerators
Climatic class | SN-ST. |
Installation | Built-in. |
Material and finish | Black with glass door. |
Format | Undercounter. |
Dimensions | |
Height (maximum) | 818 mm. |
Width (maximum) | 598 mm. |
Depth (maximum) | 581 mm. |
Net storage | 120 L. |
Shelves | Five (three, full-width bamboo). |
Door arrangement | Right hinged door, reversible. |
Features | LED light with soft start, dual zone, electronic temp display, interior ventilator, acoustic door open signal. |
Rating | 60 W. |
Electrical supply | 220–240 V, 50–60 Hz. |
EU energy label rating (minimum) | G. |
Sustainability data
Material | Glass Stainless steel |
BIM objects
NBS BIM Object Standard
This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.
Find out more about the NBS BIM Object Standard.
| Platform | Compatible | Version |
|---|---|---|
 Revit | - | 1 |
 IFC | - | 1 |
Literature

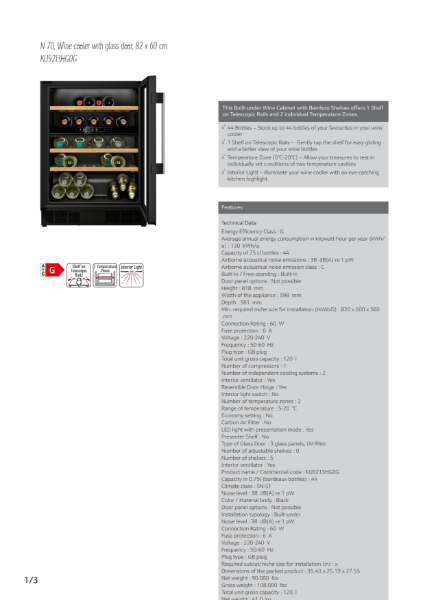

N 70, Wine cooler with glass door, 82 x 60 cm KU9213HG0G
