Built under wine cabinet - 30cm wide

Verified by manufacturer 4 months ago

NEFF Home Appliances

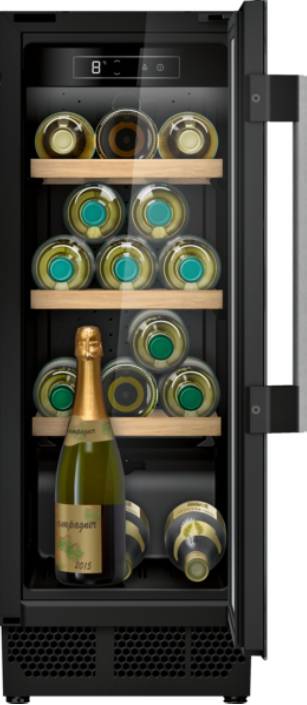

N 70, wine cooler with glass door, 82 x 30 cm.

Jump to:
BOS
0344 8929021 Website

Application

For domestic applications.

Description

N 70, wine cooler with glass door, 82 x 30 cm.


Front recess to allow for plinth installation and ventilation, reversible glass door with stainless steel bar handle, UV filter protection, 38 dB, single zone, electronic temp display, LED light with soft start, acoustic door open signal, four shelves (three bamboo), 21 bottle capacity, inner wall colour black.


Features and benefits:

  • Temperature zone (5–20°C): adjust the temperature from 5°C for whites to 20°C for reds.
  • Interior light: illuminate the wine cooler with a kitchen highlight.

General information

Color

Black

Material

Glass

Stainless steel

Shape

Rectangle

Length

567 mm

Width

298 mm

Height

818 mm

Warranty description

Two year

Material

Glass

Stainless steel

Uniclass

Pr_40_70_26_72 RefrigeratorsPrimary

CAWS

N11/40 Appliances

N11/360 Appliances

Specification data - Refrigerators

Climatic class

SN-ST.

Installation

Built-in.

Material and finish

Black with glass door.

Format

Undercounter.

Dimensions

-

Height (maximum)

818 mm.

Width (maximum)

298 mm.

Depth (maximum)

550 mm.

Net storage

58 L.

Shelves

Three, full-width bamboo.

Door arrangement

Right hinged door, reversible.

Features

LED light with soft start, presenter lighting, child lock, one temperature zone, interior ventilator, acoustic door open signal.

Electrical supply

220–240 V, 50–60 Hz.

EU energy label rating (minimum)

F.

Sustainability data

Material

Glass

Stainless steel

BIM objects

BOS

NBS BIM Object Standard

This BIM object has been authored to meet the requirements of the NBS BIM Object Standard.

Find out more about the NBS BIM Object Standard.

Platform Compatible Version
Revit
-

1

IFC
-

1

Literature

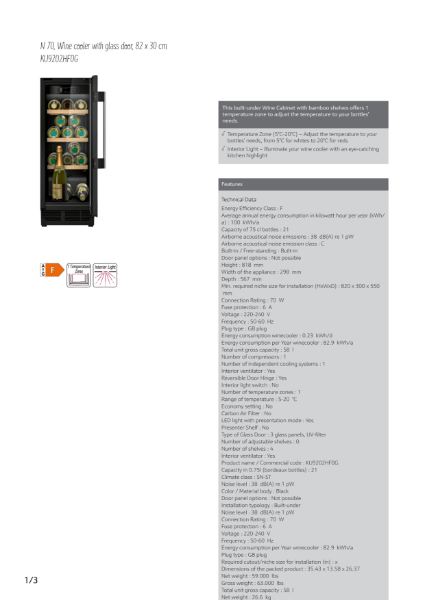

N 70, Wine cooler with glass door, 82 x 30 cm
KU9202HF0G

N 70, Wine cooler with glass door, 82 x 30 cm KU9202HF0G
