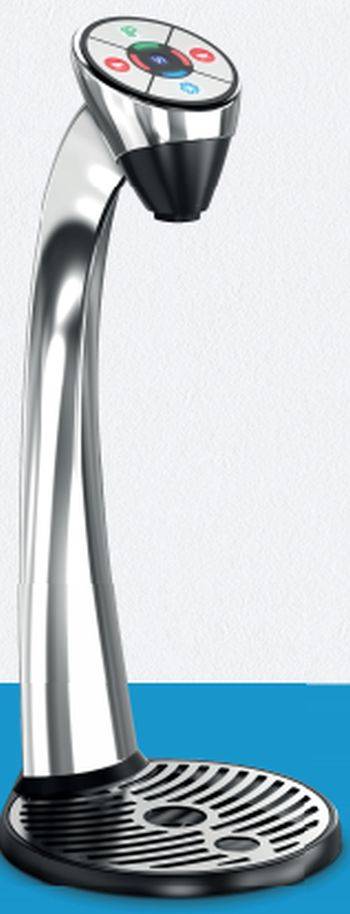

Brita Vivreau ViTap 305 Max
Application

Suitable for use in:

  • Kitchens.
  • Offices.
  • Conferences.
  • Banqueting rooms.

Description

Easy-to-use, multifunctional water dispenser tap, providing chilled still and sparkling water, and hot water to meet individual requirements.


Features and benefits:

  • Space-saving – only the tap is installed onto the work surface, and the cooling-carbonating unit and boiler can be accommodated in the base cabinet underneath.
  • Activated via a single tap.
  • Provides high quality water from local sources.
  • Eliminates the need for costly and polluting transportation and packaging of bottles.
  • Modern design.
  • Includes a hot water safety feature.
  • Provides good water flow with minimal splash.
  • The dispense nozzles are removable to improve hygiene.
  • Plumbed directly into the waste, flush fitting drip tray.
  • 10 L boiler tank capacity.


Size (h x w x d):

  • Tap: 325 x 138 x 165 mm.
  • Cooler-carbonator: 440 x 360 x 360 mm.
  • Boiler: 534 x 230 x 395 mm.
  • Base cabinet suitability: 800 x 800 x 600 mm.


Technical characteristics:

  • Maximum flow rate: 2 L/minute.
  • Dispensing capacity: 6–8 cups per minute at up to 95°C.
  • Frequency: 50 Hz.
  • Maximum current: Cooler-carbonator: 3 A; boiler: 12.6 A.
  • Maximum inlet water temperature: 25°C.
  • Maximum humidity: 60%.
  • Refrigerant: R134a, 0.095 kg.

General information

Color

Silver

Black

Finish

Chrome

Matt black

Material

Brass

Size

325 x 138 x 165 mm

WarrantyDescription

Two year

Uniclass 2015

Pr_40_70_23_42 Instant boiling and cold water tapsPrimary

CAWS

N11/30 Sinks, taps, traps and wastes

N11/350 Sinks, taps, traps and wastes

N12/380 Sinks, taps, traps and wastes

N13/379 Drinking fountains

Specification data - Instant boiling and cold water taps Enhanced data

Third party certification

KIWA.

Water

Chilled, still and sparkling.

Duty

-

Tank capacity

10 L.

Hot cups

Consult manufacturer.

Cold cups

60 L/hour.

Dimensions

325 x 138 x 165 mm.

Electrical connection

-

Power

2800 W.

 (maximum).

Voltage

220–240V.

Water inlet

Cooler-carbonator: 0.25–0.4/ 2.5–4 (MPa/ bar); boiler: 0.035–0.35/ 0.35–3.5 (MPa/ bar).

Product Reference

Brita Vivreau ViTap 305 Max Standard

240 mm dispensing height.

Brita Vivreau ViTap 305 Max Plus

With extended tap height, for easy bottle filling without splash.

Weight

1.6 kg.

Cooler: 39 kg.

Boiler: 12 kg.

Accessories/ Other requirements

Not required.

Equality access panel.

(EAP). Consult manufacturer for details.

Swing bottle.

Bottle with one-piece cap for improved hygiene. Available in different sizes, with personalisation - consult manufacturer for details and insert requirements.

Twist bottle.

Available in 700 ml size, with personalization - consult manufacturer for details and insert requirements.

Wave bottle.

Available in different sizes, with personalization - consult manufacturer for details and insert requirements.
