Description

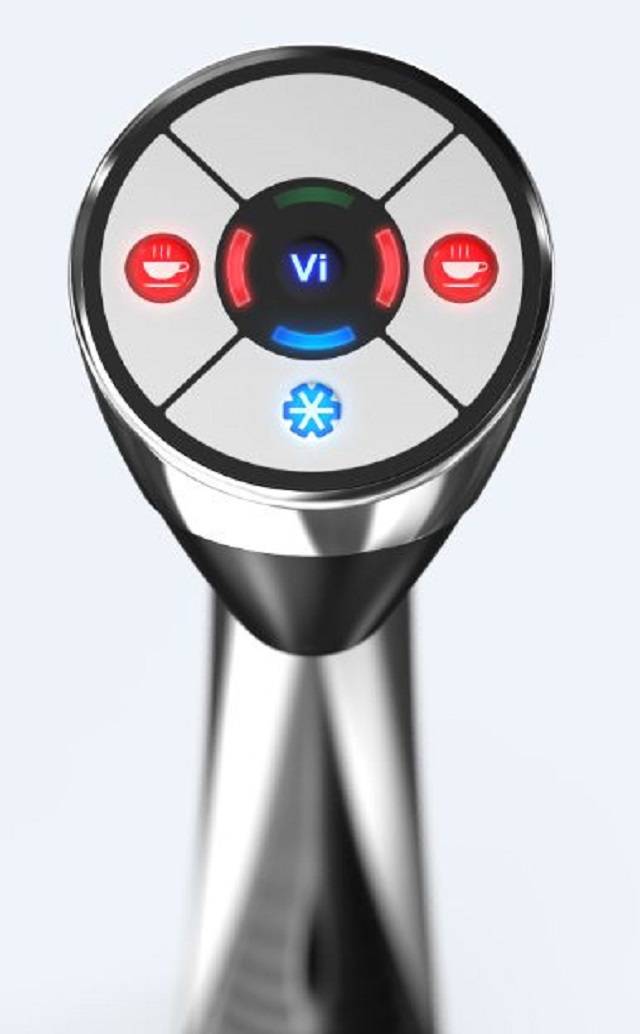

Easy-to-use, multifunctional water dispenser tap, providing chilled still and hot water to meet individual requirements.

Features and benefits:

  • Space-saving – only the tap is installed onto the work surface, and the cooling unit and boiler can be accommodated in the base cabinet underneath.
  • Activated via a single tap.
  • Provides high quality water from local sources.
  • Eliminates the need for costly and polluting transportation and packaging of bottles.
  • Modern design.
  • Includes a hot water safety feature.
  • Provides good water flow with minimal splash.
  • The dispense nozzles are removable to improve hygiene.
  • Plumbed directly into the waste, flush fitting drip tray.
  • 10 L boiler tank capacity.

General information
Specification data
Product Reference

Brita Vivreau ViTap 304 Max

Type

Brita Vivreau ViTap 304 Max Standard

240 mm dispensing height.

Brita Vivreau ViTap 304 Max Plus

With extended tap height, for easy bottle filling without splash. Consult manufacturer for details.

Accessories/ Other requirements

Not required

Equality access panel (EAP)

Consult manufacturer for details.

Swing bottle

Bottle with one-piece cap for improved hygiene. Available in different sizes, with personalisation - consult manufacturer for details and insert requirements.

Twist bottle

Available in 700 ml size, with personalization - consult manufacturer for details and insert requirements.

Wave bottle

Available in different sizes, with personalization - consult manufacturer for details and insert requirements.

Standard product features

Size (h x w x d):

  • Tap: 325 x 138 x 165 mm.
  • Cooler: 440 x 210 x 360 mm.
  • Boiler: 534 x 230 x 395 mm.
  • Base cabinet suitability: 800 x 800 x 600 mm.

Weight:

  • Tap: 1.6 kg.
  • Cooler: 19 kg.
  • Boiler: 12 kg.

Technical characteristics:

  • Cooling capacity: 60 L/hour.
  • Maximum flow rate: 2 L/minute.
  • Maximum power consumption: Cooler: 240 W; boiler: 2800 W.
  • Dispensing capacity: 6–8 cups per minute at up to 95°C.
  • Boiler tank capacity: 10 L.
  • Voltage: 220–240 V.
  • Frequency: 50 Hz.
  • Maximum current: Cooler: 1.42 A; boiler: 12.6 A.
  • Maximum inlet water pressure: Cooler: 0.25–0.4/ 2.5–4 (MPa/ bar); boiler: 0.035–0.35/ 0.35–3.5 (MPa/ bar).
  • Maximum inlet water temperature: 25°C.
  • Maximum humidity: 60%.
  • Refrigerant: R134a, 0.095 kg.
