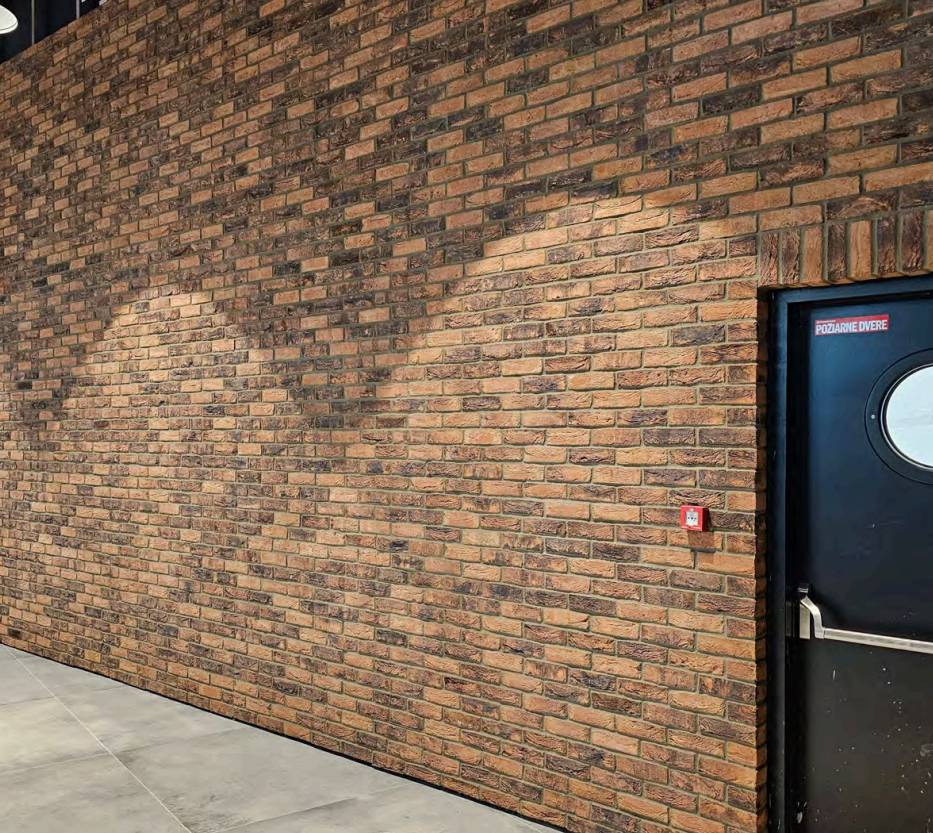

BRICKNOLOGY® Brick Slip System - Brick Slip Cladding
Verified by manufacturer 1 day ago
CWCT Certificate
Certificate type
BRICKNOLOGY® is genuine, mechanically secured and rear supported brick slip cladding, with proven efficiencies.
Application
Suitable for new build, refurbishment or modular offsite projects, including facades, wall cladding, balconies, and most applications where brick is used (excluding below DPC level).
Description
BRICKNOLOGY® is genuine, mechanically secured and rear supported brick slip cladding, with proven efficiencies, that unifies a traditional looking brick exterior with a patent-pending brick slip and mortar retention technology.
Every brick slip and building corner is mechanically retained to metal support rails, ensuring complete safety, durability and performance of the highest standard.
Features and benefits:
- Resistant to wind loading: BRICKNOLOGY has been subject to wind pressure tests at +3000 Pa, and wind suction tests at 6600 Pa, almost twice the UK standard, with no visible damage.
- Suitable for installation at any building height, subject to appropriate facade engineering calculations being carried out by qualified professionals.
- The patent-pending BRICKNOLOGY® brick slip retention technology seamlessly integrates their purpose-cut or extruded brick slips, steel support rails and mortar into a single, cohesive brick cladding finish.
- Purpose-made steel rails, brick slips and mortar are classified as Euroclass A1 in accordance with EN 13501-1 and Delegated Regulation 2016/364.
- Its lightweight* construction reduces the demand on foundations and minimizes the need for additional support structures, yielding significant cost savings compared to traditional brickwork.
- *Weighs 45 kg/m² dry and 65 kg/m² wet making it over 50% lighter than traditional brickwork.
- Exceptional efficiency and ease of installation, ensuring a fast-track approach to brick cladding.
- Minimal weather dependency for installation - only the mortaring dependent upon the weather.
- Bricks classified as F2 Frost Resistance, in accordance with EN 771-1, specification for clay masonry units are used with BRICKNOLOGY®.
General information
Color | Brown Orange Red Beige White |
Finish | Brick |
Material | Brick Steel Cement |
Shape | Square Rectangle Other |
Length | Bespoke |
Width | Bespoke |
Uniclass | |
CAWS | H20/150 Sheet cladding (attached to metal support systems) H20/10 Sheet cladding H92/120 Rainscreen cladding |
Specification data - Drained and back-ventilated rainscreen cladding systems
Classification data | |
Thermal insulation | Required. Guidance for specification option: Consult manufacturer for options and insert requirements. |
Secondary support structure | BRICKNOLOGY® steel support rails. Guidance for specification option:
Manufacturer guidancePurpose-made steel support rails, fabricated to provide the mechanical retention of the purpose-made brick slips and additional key attachment into the purpose-made mortar. They are perforated to provide a true ventilated brick cladding, allowing the brick slips to breathe. |
Cladding panels | |
Material | BRICKNOLOGY® clay brick slips, 215 x 65 mm. BRICKNOLOGY® clay brick slips, other. Guidance for specification option: Consult manufacturer for options and insert requirements. Manufacturer guidanceSpecify Colour/ Texture separately below.
|
Panel joints | BRICKNOLOGY® injection-pointed mortar, Extra White. BRICKNOLOGY® injection-pointed mortar, Beige White. BRICKNOLOGY® injection-pointed mortar, Grey White. BRICKNOLOGY® injection-pointed mortar, Light Sand. BRICKNOLOGY® injection-pointed mortar, Silver Grey. BRICKNOLOGY® injection-pointed mortar, Grey. BRICKNOLOGY® injection-pointed mortar, Dark Grey. BRICKNOLOGY® injection-pointed mortar, Anthracite. BRICKNOLOGY® injection-pointed mortar, Black. Manufacturer guidanceTo EN 13888-1. Purpose-made mortar supplied in ready to mix 25 kg bags provides two essential functions:
It is recommended that mortar is not applied at temperatures below 5ºC. |
Reveals | Guidance for specification option: Insert requirements including drawing or schedule where applicable. |
System accessories | Guidance for specification option: Consult manufacturer for options and insert requirements, or omit. |
Colour/ Texture | Guidance for specification option: Brick slips: Over 350 colours and textures available as standard; consult manufacturer for options and insert requirements. |
Testing | CWCT tested. European Technical Assessment achieved. Guidance for specification option: Consult manufacturer for details. |
Reaction to fire | BRICKNOLOGY® purpose made steel rails, brick slips and mortar are classified as Euroclass A1 in accordance with EN 13501-1 and Delegated Regulation 2016/364. |
Weight | 45 kg/m² (dry); 65 kg/m² (wet). |
Frost resistance | Bricks classified as F2 Frost Resistance, in accordance with EN 771-1, specification for clay masonry units are used with BRICKNOLOGY®. |
Sustainability data
Country of product manufacture | Slovakia Guidance for specification option: Brick slip cutting and grooving. |
Material | Brick Steel Cement |
Product certifications
CWCT Certificate
BRICKNOLOGY® - CWCT Certificate
Literature
Literature type
BRICKNOLOGY® - Brochure
BRICKNOLOGY® Mortar Sheet - Data Sheet
