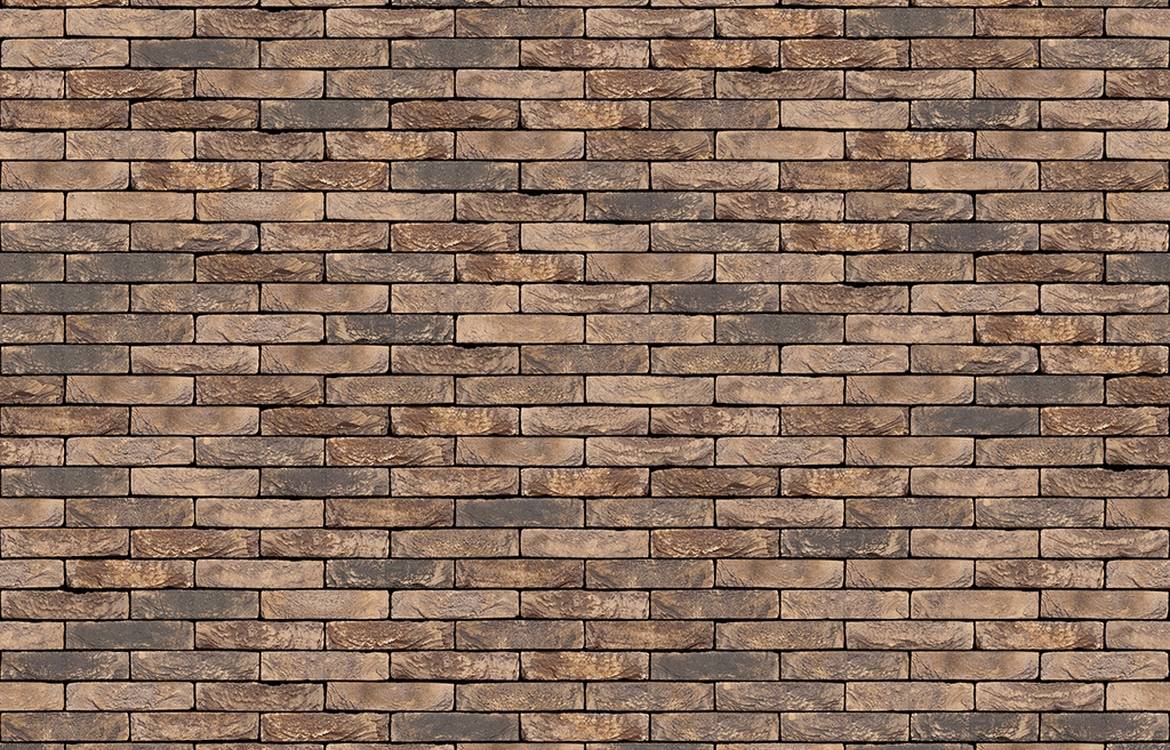

A grey facing brick, with multi-shades of brown, anthracite-beige and dark grey.
The raw materials are excavated in Weichsel loam layers, the local loam of Aeolian origin dating from the Ice Age. This löss mainly consists of a silt-like fraction, suited ideally for the manufacturing of hand form bricks. By using specific sand types for surface covering, the desired colour is achieved.
Features and benefits:
For more information about Vandersanden and to discover our complete range of specifier solutions, please visit www.vandersanden.com.
Be informed and inspired by the potential of brick to transform your projects. Register for our specifier Inspiration Guide here
Over 1.1 million possibilities!
Create, download and visualise beautiful brick facades with our New Texture Generator here
Stay up to date and discover new trends, techniques, and innovations with our RIBA CPDs here
Color | Grey Brown Black Beige |
Finish | Sanded Coated |
Material | Clay |
Shape | Rectangle |
Length | 212 mm 214 mm |
Width | 101 mm |
Height | 51 mm 65 mm |
Uniclass | |
CAWS | F10/110 Clay facing brickwork F10/5 Facing brickwork |
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Appearance | Grey-brown with shades of dark grey and black, with a sanded-coated and grained structure. |
Work size (length x width x height) | 212 x 101 x 51 mm. |
Tolerances | |
Mean value | T2. |
Range | R1. |
Compressive strength | |
Mean compressive strength (minimum) | ≥20 N/mm².Guidance for specification option: Tested to the bed face. |
Category | Manufacturer guidanceManufacturer's standard. |
Durability designation | F2. |
Density | |
Gross dry | 1530 kg/m³. |
Net dry | 1640 kg/m³. |
Water absorption | ≤17% m/md. |
Configuration | Frogged. |
Recycled content | Manufacturer guidanceManufacturer's standard. |
Thermal conductivity | ≤0.55 W/m·K.Guidance for specification option: Lambda 50/50. |
Thermal resistance | Manufacturer guidanceManufacturer's standard. |
Water vapour permeability | 5/10 µ. |
Bond strength | General: 0.15 N/mm²; thin layer: 0.30 N/mm². |
Reaction to fire | Class A1 to BS EN 13501-1. |
Active soluble salts | S2. |
Jointing | Beige. Light grey. Grey. Joint free. White. |
Country of material origin | Manufacturer guidanceEurope. |
Country of product manufacture | Belgium |
Material | Clay |
Recyclability | Recyclable |
