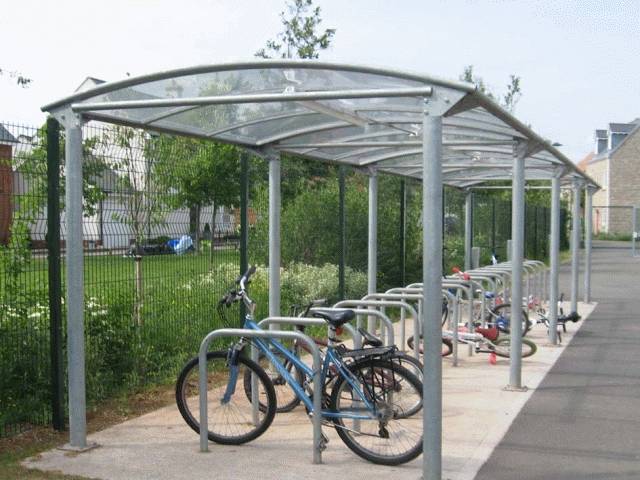

Bolton Cycle Shelter


The Bolton Cycle Shelter is a modern, robust design that has been exhaustively tested to ensure both it’s stabil­ity and strength. The oversized 101 mm diameter galvanised steel legs provide a strong aesthetic. The curved roof with cross beam support ensures the shelter can withstand a high level of abuse. The one metre wide 5 mm PET sheets clamped to the frame further enhance the strength inherent in the design. The Boston Shelter can be specified with any number of extension bays, making it suitable for both use as a cycle shelter but also as a walkway if required.


  • Free standing.
  • Double sided.
  • Roof end frame is made of 64 mm tube, with box section supports.
  • Uprights are made of 101 mm tube.
  • All steel parts are galvanized to BS EN ISO 1461:1999.
  • Roof cladding: Clearview PETG 5 mm thick sheeting.
  • Four Sheffield cycle stands can fit per bay.
  • Extension bays available to accommodate larger quantities of bicycles.
  • All racks are sold separately.
  • Shipped in sections for easy assembly on site.
  • Also available ragged for casting in.
  • Painted frames are also available.

General information


Free standing

Double sided

Roof end frame is made of 64 mm tube, with box section supports

Uprights are made of 101 mm tube

All steel parts are galvanized to BS EN ISO 1461:1999

Show more


Length: 3300 mm

Depth: 2460 mm

Height above ground: 2100 mm

Uniclass 2015

Pr_20_65_78_58 Open sided sheltersPrimary


B91/340 Cycle shelter

Specification data - Open sided shelters

Product Reference

Bolton Shelter, 138200550




Extension bay

Not required

Required, 138200555

Standard product features


  • Length: 3300 mm.
  • Depth: 2460 mm.
  • Height above ground: 2100 mm.


  • Main bay: 210.0 kg.
  • Extension bay: 186.0 kg.

Product Options

Colour/ Finish:

Galvanized finish as standard. Most RAL and BS colours are available as painted finishes – contact manufacturer for further details. Polyester coloured coatings are available by special order.
