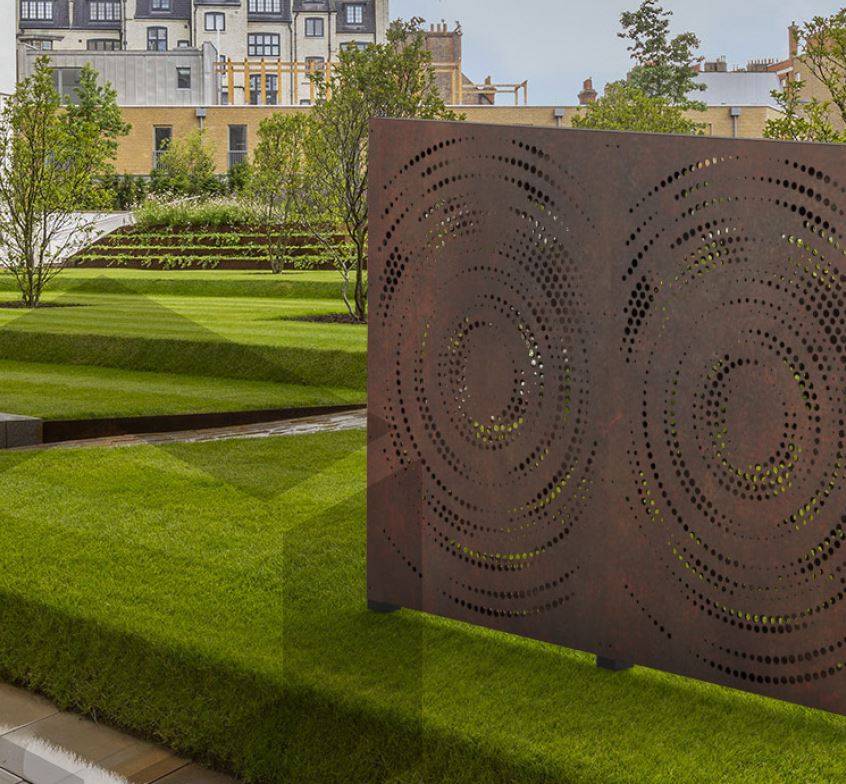

Blokks Wind Mitigation Screen
Verified by manufacturer 7 months ago
Pattern 1
Pattern 1
Wind mitigation and privacy screen.
Application
Suitable for wind mitigation applications
Description
Wind mitigation and privacy screen is available in various patterns with certain porosity levels it can also be made bespoke to any laser cut style or set pattern. It’s twin-clad approach conceals the internal structure to achieve a seamless fascia.
Features and benefits:
- Available in stainless steel, mild steel or weather steel.
- Available in stainless, Corten and polyester powder-coated finishes.
- Can be made bespoke to any laser cut style or set pattern.
- Expected life span is between 25–50 years depending on material and finish.
- High durability.
General information
Color | Beige Black Blue Brown Cream |
Finish | Powder-coated Galvanized Weathered Polished Brushed |
Material | Steel Stainless steel |
Shape | Rectangle |
Length | 80 mm |
Width | 1410 mm Guidance for specification option: Panel width. 1604 mm Guidance for specification option: Overall width. |
Height | 1300 mm 2000 mm 2800 mm |
Uniclass | |
CAWS | K30/170 Mesh panel partitions |
Specification data - Perforated metal mesh
Material | Brushed stainless steel.Polished stainless steel.Textured weathering steel.Polyester powder-coated, galvanized mild steel.Special polyester powder-coated, galvanized mild steel. |
Colour | Guidance for specification option: Insert colour requirements.
|
Holes | |
Shape | Round. |
Pitch pattern | Pattern 1. |
Dimensions | |
Sheet thickness | 106 mm. |
Hole size (maximum) | Manufacturer's standard. |
Open area (%) | 15%. |
Panel heights | 1300 mm. 2000 mm. 2800 mm. Manufacturer guidanceAbove FFL. |
Panel width | 1410 mm. |
Sustainability data
Contains Red List materials | No |
Country of product manufacture | United Kingdom |
Literature
Product Datasheet
