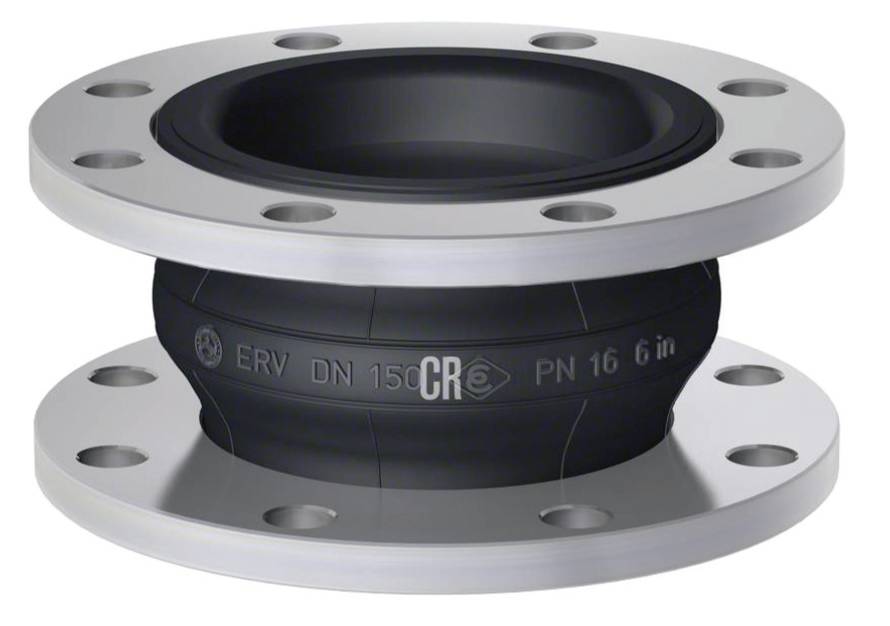

BlackBand Chloroprene Rubber Bellow PN16
Verified by manufacturer 8 months ago
ERV-CR 25.16
ERV-CR 25.16
A rubber bellow for water, weak chemicals and oils.
Application
- Suitable for cold and warm water, swimming pool water, seawater, wastewater (weakly sour or alkaline), water containing oil, cooling water with oily additives, lubricating oil, grease and air and compressed air.
- Not suitable for drinking water, acids, alkalis, chemicals, heating oil, diesel, gasoline and jet fuel, petroleum, solvents, other hydrocarbons and hot compressed air.
Description
The Elaflex BlackBand ERV-CR rubber bellow features a chloroprene rubber (CR), seamless, abrasion resistant liner with PA textile cord reinforcement and CR cover.
Features and benefits:
- Available from DN25 to DN1000.
- A wide choice of configuration, flange and restraint options.
- Axial, lateral and angular range of movement.
General information
Color | Black |
Finish | Natural |
Material | Rubber Carbon steel |
Shape | Circle |
Length | 130 mm 200 mm 250 mm 260 mm 300 mm |
Width | 115 mm 140 mm 150 mm 165 mm 185 mm |
Height | 115 mm 140 mm 150 mm 165 mm 185 mm |
Warranty description | One year |
Uniclass | |
CAWS | S90/110 Mains cold water supply S90/110 Mains cold water supply |
Specification data - Axial expansion compensators
Material | |
Bellows | Chloroprene rubber (CR). |
Inner sleeve | Chloroprene rubber (CR). |
Connections | Swivelling flanges, DIN PN 10/16, carbon steel, zinc plated. |
Bellow | 25 mm (1"). |
Length | 130 mm. |
Flange | 115 mm. |

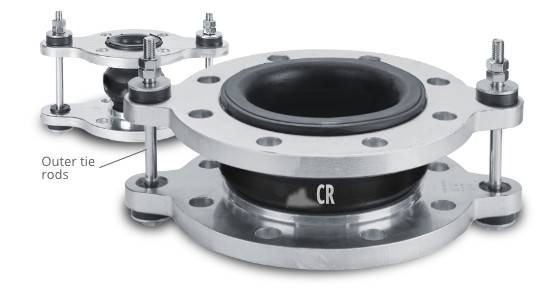

Edge restraints | Untied. Tied. |
Sustainability data
Contains Red List materials | No |
Country of material origin | Europe |
Country of product manufacture | Europe |
Recyclability | 100% |
Literature
Product Data Sheet - Elaflex Black Band / ERV-CR
