YellowBand Nitrile Rubber Bellow PN16

Verified by manufacturer 6 months ago

ERV-G 25.16

FlexEJ Variant:

A nitrile rubber bellow for oils and fuels.

Jump to:
+44 (0) 1384 881 188 Website

Application

For petroleum-based products with aromatic content up to 50%, fuels (ethanol content up to 85%), aviation fuels, town gas and natural gas except for liquefied petroleum gas.

Description

The Elaflex YellowBand ERV-G rubber bellow has a nitrile rubber (NBR), seamless, abrasion resistant liner with PA textile cord reinforcement and chloroprene rubber (CR) cover.


Features and benefits:

  • Available from DN25 to DN150.
  • A wide choice of configuration, flange and restraint options.
  • Axial, lateral and angular range of movement.

General information

Color

Black

Yellow

Finish

Natural

Material

Rubber

Carbon steel

Shape

Circle

Length

130 mm

160 mm

150 mm

175 mm

200 mm

Show more

Width

115 mm

140 mm

150 mm

165 mm

185 mm

Show more

Height

115 mm

140 mm

150 mm

165 mm

185 mm

Show more

Warranty description

One year

Uniclass

Pr_65_52_28_05 Axial expansion compensatorsPrimary

CAWS

S91/330 Domestic low pressure gas supply pipelines

S91/330 Domestic low-pressure gas supply pipelines

Specification data - Axial expansion compensators

Material

-

Bellows

Chloroprene rubber (CR).

Inner sleeve

Nitrile rubber (NBR).

Connections

Swivelling flanges, DIN PN 10/16, carbon steel, zinc plated.

Bellow

25 mm (1").

Length

130 mm.

Flange

115 mm.

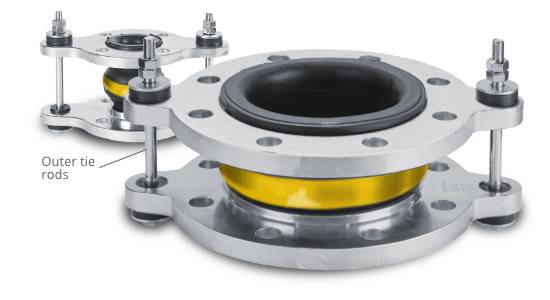

Edge restraints

Untied.

Tied.

Sustainability data

Contains Red List materials

No

Country of material origin

Europe

Country of product manufacture

Europe

Recyclability

100%

Literature

Product Data Sheet - Elaflex Yellow Band / ERV-G

Product Data Sheet - Elaflex Yellow Band / ERV-G

FlexEJ Full Company Product Catalogue

FlexEJ Full Company Product Catalogue

Product Data Sheet - Elaflex Red Band / ERV-R

Product Data Sheet - Elaflex Red Band / ERV-R

Product Data Sheet - Elaflex Red Spot / ERP

Product Data Sheet - Elaflex Red Spot / ERP
