Bivio - Clay Facing Brick
Verified by manufacturer 5 months ago
WF
WF

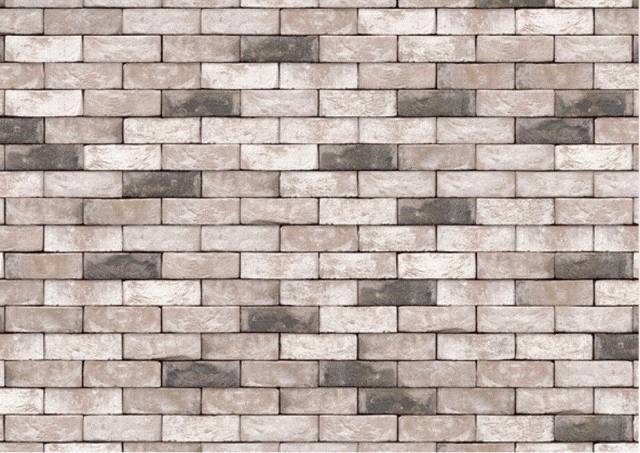

A light grey facing brick with multi-shades of beige, white and dark grey.
Application
Building applications.
Description
A mix of different kinds of clay forms the basis for this facing brick. Löss, the local loam of Aeolian origin dating from the Ice Age, is the most important base material. This löss mainly consists of a silt-like fraction, suited ideally for the manufacturing of hand form bricks. By using specific sand types for surface covering, the desired colour is achieved.
Features and benefits:
- Hand formed.
- Multi-shade.
- Seven joint styles available.
General information
Color | Grey White Beige |
Finish | Sandfaced Guidance for specification option: Sanded-coated. |
Material | Clay |
Shape | Rectangle |
Length | 212 mm 214 mm |
Width | 101 mm |
Height | 51 mm 65 mm |
Uniclass | |
CAWS | F10/110 Clay facing brickwork F10/5 Facing brickwork |
Specification data - Clay bricks
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Appearance | Light grey, with beige, white and dark grey shades, with a sanded-coated and grained structure. |
Work size (length x width x height) | 212 x 101 x 51 mm. |
Tolerances | |
Mean value | T2. |
Range | R1. |
Compressive strength | |
Mean compressive strength (minimum) | ≥20 N/mm².Guidance for specification option: Tested to the bed face. |
Category | Manufacturer guidanceManufacturer's standard. |
Durability designation | F2. |
Density | |
Gross dry | 1530 kg/m³. |
Net dry | 1640 kg/m³. |
Water absorption | ≤17% m/md. |
Configuration | Frogged. |
Recycled content | Manufacturer guidanceManufacturer's standard. |
Thermal conductivity | ≤0.55 W/m·K.Guidance for specification option: Lambda 50/50. |
Thermal resistance | Manufacturer guidanceManufacturer's standard. |
Water vapour permeability | 5/10 µ. |
Bond strength | 0.15 N/mm² (bond strength general); 0.30 N/mm² (bond strength thin layer). |
Reaction to fire | Class A1 to BS EN 13501-1. |
Active soluble salts | S2. |
Jointing | Beige. Light grey. Dark grey. Joint free. White. |
Sustainability data
Country of material origin | Manufacturer guidanceEurope. |
Country of product manufacture | Belgium |
Material | Clay |
Recyclability | Recyclable |
