Suggested for use in medium traffic areas of approximately 60 people. Can provide:

  • 180 cups of boiling water per hour.
  • 150 cups of chilled and sparkling water per hour.


Instant filtered drinking water system.

Features and benefits:

  • Provides sparkling, boiling and chilled water.
  • Uses a CO2 injection system, which ensures the saturation of CO2 in the water is high - improving the water lifespan and taste.
  • The level of sparkling can be adjusted, with options available of up to 5 bar of CO2 pressure to suit individual requirements.
  • Improved, consistent chilling capacity and recovery time due to ice bank technology with a chilled reservoir, which both sparkling and chilled water supply pass through to improve carbonation.
  • SplashFree™ system electronically varies the boiling water flow, adjusting to eliminate splashing.
  • Includes a safety switch.
  • Boiling water is dispensed at 98.5°C as standard. The boiling water reserve ensures boiling water is always readily available, even after the hot water supply through the mixer tap has been fully drawn.
  • The temperature of the chilled water can be adjusted to 15°C or lowered to 6°C for differing refreshment needs. Required temperatures are quickly reached and maintained.
  • The filtration system removes sediment and chemicals, allows the flow of minerals through and suppresses harmful bacteria in the water. Fibredyne™ technology gives filters a longer life, higher flow rate and lower pressure drop.
  • Supplied with a 1.5 m flex cord and plug, and CO2 cylinder which will provide approximately 200–350 litres of sparkling water.
  • 24-month warranty.


Suggested for use in medium traffic areas of approximately 60 people. Can provide:

  • 180 cups of boiling water per hour.
  • 150 cups of chilled and sparkling water per hour.


  • WaterMark™ approved.
  • Tested to ATS5200.105 and AS/ NZS 4020.

General information



boiling, chilled and sparkling water; adjustable sparkling water; adjustable chilled temperature; ice bank technology for chilled and sparkling water




24 month parts and labour warranty

Uniclass 2015 Instant boiling and cold water taps (Pr_40_70_23_42)
Specification data
Product Reference

Quadra Sparkling (906060)

Dispenser -

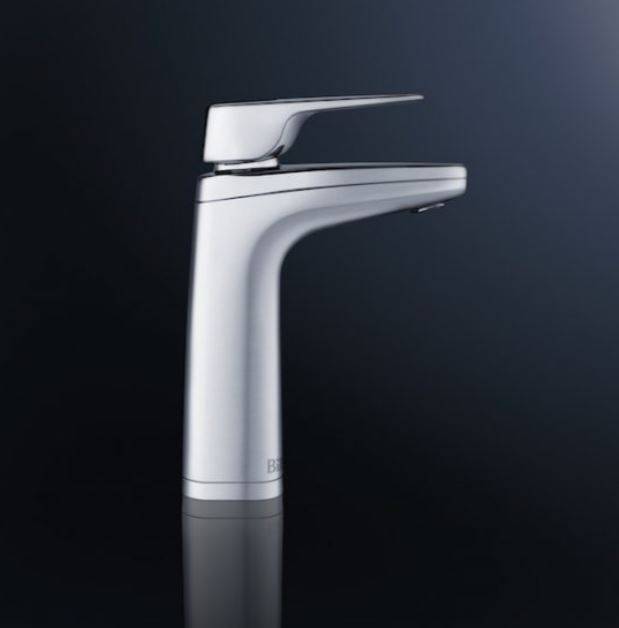

XL Levered (L)


Brushed Chrome (BR)

Brushed Rose Gold

Chrome (CH)

Florentine Bronze

Gloss Black

Gun Metal Grey

Matte Black (MB)

Matte White (MW)


Rose Gold (RG)

Special Finish (SP)

Urban Brass

Accessories/ Other requirements -
Font with 120 mm riser


Not required

120 mm riser


Not required

Tubing extension kit (990720)


Not required

Standard product features

Size (h x w x d):

  • Chilled and sparkling unit: 420 x 180 x 460 mm.
  • Boiling unit: 340 x 180 x 460 mm.

Technical characteristics:

  • Power outlet: Two 13 A outlets (to accommodate the two separate modules).
  • Water pressure: Minimum of 2.5 bar.
  • Water supply: A single 15 mm (1/2") stop-tap with a male thread should be installed.
  • CO2 cylinder supply: 1100 g.

Product Options


The standard dispenser and finish is XL Levered (L) in chrome (CH) - 906060LCHUK. Consult manufacturer for further details.

Accessories/ Other requirements:

Most accessories are available in Chrome (CH), Brushed Chrome (BR), Matte Black (MB), Matte White (MW), Rose Gold (RG) or Special Finish (SP). Consult manufacturer for further details.
