Application

Suitable for a range of applications including:

  • Health centers.
  • Ambulatories.
  • Laboratories.
  • Operating rooms.
  • Bathrooms.
  • Swimming pools.
  • Gyms.
  • Schools.
  • Day centers.
  • Restaurants.
  • Halls and corridors.
  • Elevators.
  • High-traffic and high-wear areas.

Description

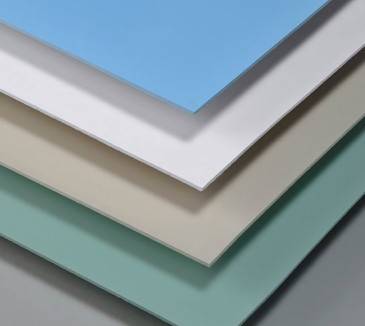

A compact sheet with an opaque and anti-reflective surface that offers high resistance to impact and wear. A solution that meets hygiene standards and regulations, while contributing to significant savings in cleaning and maintenance costs. The Elite Macroclean® sheet is a new solution in thermoplastic material for the cladding of interiors and walls in public and hospital structures with aesthetic value.

The use of Beplas two-part polyurethane adhesive or Multibead adhesive guarantees good installation quality for the Elite Macroclean® cladding. The fire classification B-s1, d0, guarantee of minimum toxicity in case of fire, is essential for hospital use or in centers with people with reduced mobility.

Features and benefits:

  • Uncontaminated and 100% recyclable material.
  • Free from halogens (chlorine bromine, etc).
  • Does not disperse any smell unlike polyvinyl chloride (PVC), even at high temperatures.
  • High impact resistance - suitable for indoor environments with frequent passage of people.
  • Good abrasion resistance.
  • Provides electrical and thermal insulation.
  • Resistant to humidity.
  • Chemical resistance.
  • Easily washable with soap and water.
  • Classification of reaction to fire B-s1, d0.
  • Easily machinable mechanically.
  • Can be cold bent.
  • Unalterable after installation.
  • Non-porous material, hygienic and free from bacteria. Does not absorb dirt.
  • Wide temperature range of use (from -20° to 100° C).
  • Coloured with mass pigments - does not lose colour.
  • Waterproof.
  • Easy to install.
  • Classified A+ with respect to volatile substances (VOCs).

General information

Color

White

Beige

Blue

Green

Other

Finish

Anti-microbial

Matt

Material

Polycarbonate

Shape

Rectangle

Length

3200 mm

Width

1250 mm

Height

1.7 mm

Uniclass

Pr_25_71_14_62 Plastics sheet wall claddingsPrimary

CAWS

K13/145 Proprietary plastics cladding

K13/145 Proprietary plastics cladding

Specification data - Plastics sheet wall claddings

Classification data

Material

Polycarbonate sheet.

Thickness

1.7 mm.

Sheet size

1250 x 3000 mm.

Finish

Matt.

Colour

White.
Beige.
Blue.
Green.
Other.

Guidance for specification option:

Other colours on request. Consult manufacturer and insert requirements.

Edges

Welded.

Guidance for specification option:

The joint between the panels is seamless, using a unqiue cold weld system.

Fire performance

To BS EN 13501-1, Class B-s1, d0.

Fixing

Be-plas two-part polyurethane adhesive.
Multibead.

Density

1.2 g/cm³.

Manufacturer guidance

To ISO 1183.

Elongation

Elongation at yield point: 6%.
Elongation at break: 120%.

Manufacturer guidance

To ISO 527.

Impact strength

Charpy impact strength with V-notch: 75 kJ/m² (at 23°C).
Notched izod impact strength: 70 kJ/m² (at 23°C).

Manufacturer guidance

To ISO 179/1eA, ISO 180/1A.

Vicat softening temperature

145–149°C.

Manufacturer guidance

To ISO 306.

ThermalConductivity

0.20 W/(m·K).

Manufacturer guidance

To ISO 8302.

Water absorption

0.35%.

Manufacturer guidance

To ISO 62.

Water vapour permeability

15 g/(m²/day).

Manufacturer guidance

To ISO 15106-1.

Coefficient of linear expansion

0.65 10-4/K.

Manufacturer guidance

To ISO 11359-2.

YieldStress

63 MPa.

Manufacturer guidance

To ISO 527.

Elastic modulus

2350 MPa.

Manufacturer guidance

To ISO 527.

Sustainability data

Material

Polycarbonate

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

100 %
