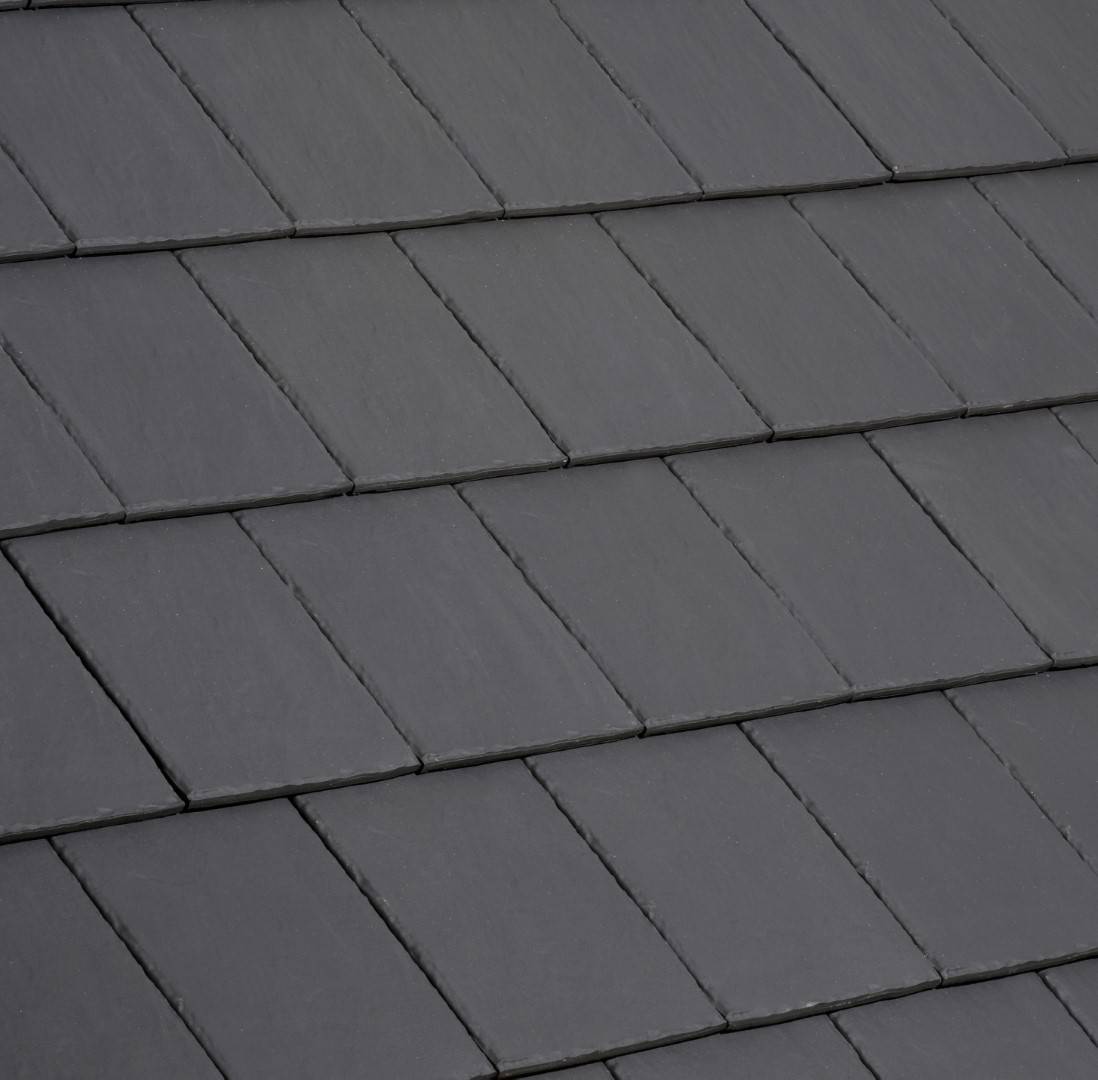

Beauvoise Graphite - Clay Rooftile

Name: Beauvoise Graphite - Clay Rooftile
Brand: Edilians
SKU: nbDBGvrvCbD8F5tD6z8954

Verified by manufacturer 18 hours ago

Edilians

Interlocking clay slate tile.

Jump to:

Request BIM

+44 (0)7818 043807 Website

Application

Made of Beauvais clay, the Beauvoise Graphite Terracotta tile retains the pure lines and straight front edge of the Beauvoise Huguenot tile, whose mould was used in its design. With its slightly finer profile, slate grey colour and textured surface, it creates a perfect imitation of natural slate roofs, at a much lower cost per square metre, while retaining the undeniable advantages of terracotta roofing.

Description

The Beauvoise Graphite tile is a blend of the best of its origins the historic clay of Beauvais and the sleek, polished look of slate. These small format plain interlocking tiles are without a doubt a new classic in contemporary roof style.

Features and benefits:

Up to a 30% saving against natural slate.
Varied all round chamfered slim line edge.
Authentic modular slate size.
Minimum 22.5° roof pitch.
Low overall weight of 39 kg/m².
Insurance-backed 30-year durability guarantee.

General information

Color	Black
Finish	Matt
Material	Clay
Shape	Square Rectangle
Length	322 mm
Width	200 mm
Warranty description	30 year

Uniclass	Pr_25_93_72_12 Clay interlocking tilesPrimary
CAWS	H65/105 Clay roof tiling H65/5 Roof tiling

Specification data - Clay interlocking tiles

Classification data
Standard	To BS EN 1304.
Colour	Slate.
Surface finish	Textured.
Size	322 x 235 mm.
Batten size	38 x 25 mm rafter centres: 450 mm. 0 x 25 mm rafter centres: 600 mm.
Staples/nails	50 x 3.35 mm. Manufacturer guidance (Nail size)
Roof pitch	22.5°. Manufacturer guidance (Minimum)
