This product is no longer available

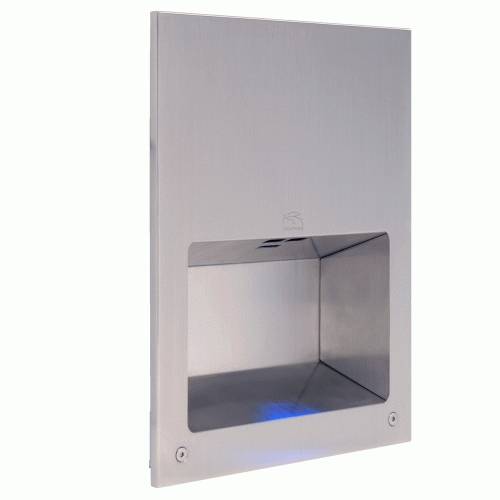

BC2007 Dolphin Velocity Eco Slimline Recessed Hand Dryer
Description

Stainless steel, high speed recessed hand dryer. It is an ultra-slim hand-dryer, with a recess depth of only 94 mm and a projection of 10 mm.

Features:

  • Motor only: 250–500 W.
  • Heater element: 250–500 W (with on/off switch facility).
  • Combined power output: 500–1000 W.
  • Infra-red, self-adjusting sensor.
  • Sound level of 75 dB at 1 m.
  • IPX1 rated and Class 1 rated isolation.
  • Dryer delivers 91.3 m³/hour.
  • Dries hands in 13 seconds - reducing the CO2 emissions.
  • 16 000–29 000 rpm brush motor - air speed adjustable (slower speed makes running quieter).
  • Operating power consumption less than 5 A at 230 V.
  • Stand by power less than 0.5 W.
  • Three-year warranty.
  • Outlet temperature 55°C (131°F) at 25°C (77°F) ambient temperature.
  • Average reuse rate under WEEE Directive: 78%.
  • Average recovery rate under WEEE Directive: 96%.
  • Ska compliant.

General information
Features

Motor only: 250–500 W

Heater element: 250–500 W (with on/off switch facility)

Combined power output: 500–1000 W

Infra-red, self-adjusting sensor

Sound level of 75 dB at 1 m

IPX1 rated and Class 1 rated isolation

Dryer delivers 91.3 m³/hour

Dries hands in 13 seconds - reducing the CO2 emissions

16 000–29 000 rpm brush motor - air speed adjustable (slower speed makes running quieter)

Operating power consumption less than 5 A at 230 V

Stand by power less than 0.5 W

Three-year warranty

Outlet temperature 55°C (131°F) at 25°C (77°F) ambient temperature

Average reuse rate under WEEE Directive: 78%

Average recovery rate under WEEE Directive: 96%

Ska compliant

Uniclass 2015
Pr_40_70_62_37 Hand dryersPrimary
CAWS

N13/472 Hand dryers

V90/590 Equipment

Specification data - Hand dryers
Product Reference

BC2007 Dolphin Velocity Eco Slimline Recessed Hand Dryer

Standard product features

Dimensions (h x w x d):

320 x 400 x 94 mm.

Product Options

Projection:

10 mm when recessed.

Finish:

Satin.
