BauderVIP INV Inverted Roof Insulation
Verified by manufacturer today
Application
BauderVIP INV panels are suitable for use on roof areas where a lack of construction depth or space is an issue such as roofs, roof terraces, enclosed balconies over heated spaces and insulated walkways, in an inverted roof build up.
Description

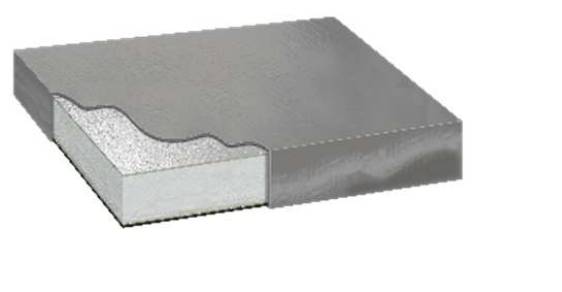

BauderVIP INV is an Inverted Roof Rigid vacuum insulation panel with a microporous core which is evacuated, encased and sealed in a gas tight membrane. BauderVIP INV panels are encapsulated in a protective Polyurea coating for increased robustness and easier handling on site.
Surface finish:
- Top: Protective Coating.
- Core: Microporous Core.
- Bottom: Protective Coating.
General information
Color | Grey |
Finish | Coated |
Material | Polymeric |
Shape | Rectangle Square |
Length | 600 mm 1200 mm |
Width | 300 mm 400 mm 600 mm |
Height | 20 mm 25 mm 30 mm 40 mm 50 mm |
Warranty description | Manufacturer guidanceTo be used as part of a full Bauder Waterproofing System only. Please contact Bauder for information regards the many systems and guarantees available. |
Uniclass | |
CAWS | J41/26 Thermal insulation Q37/310 Inverted roof insulation |
Specification data - Vacuum insulated panels
Classification data | |
Edges | Square. |
Panel facings | Polyurea coating – Grey – RAL 7037. |
Dimensions | |
Size (length x width) | 600 x 400 mm. 600 x 600 mm. 1200 x 400 mm. 1200 x 600 mm. 1200 x 300 mm. |
Thickness | 20 mm. 25 mm. 30 mm. 40 mm. 50 mm. |
Density (minimum) | To BS EN 1602: 170 kg/m³ |
Thermal conductivity (maximum) | 0.010 W/mK. Manufacturer guidanceThermal Conductivity values vary by panel size and thickness (0.008–0.010 W/mK). |
Compressive strength (minimum) | To BS EN 826: 150 kPa. |
Fire performance | To EN 13501-1:2018: Euroclass E. |
Sustainability data
Material | Polymeric |
Expected Life | Lifetime |
Literature

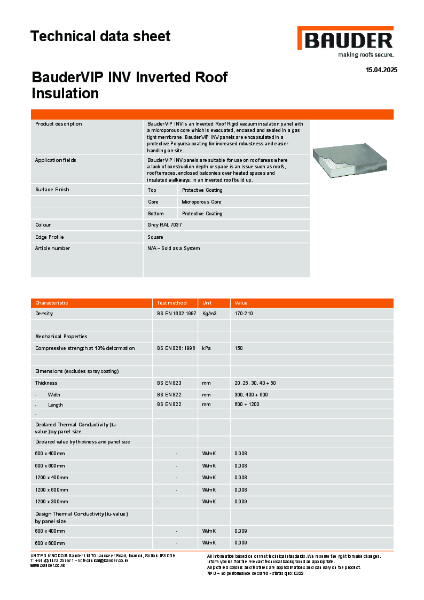

BauderVIP INV - Technical Data Sheet
