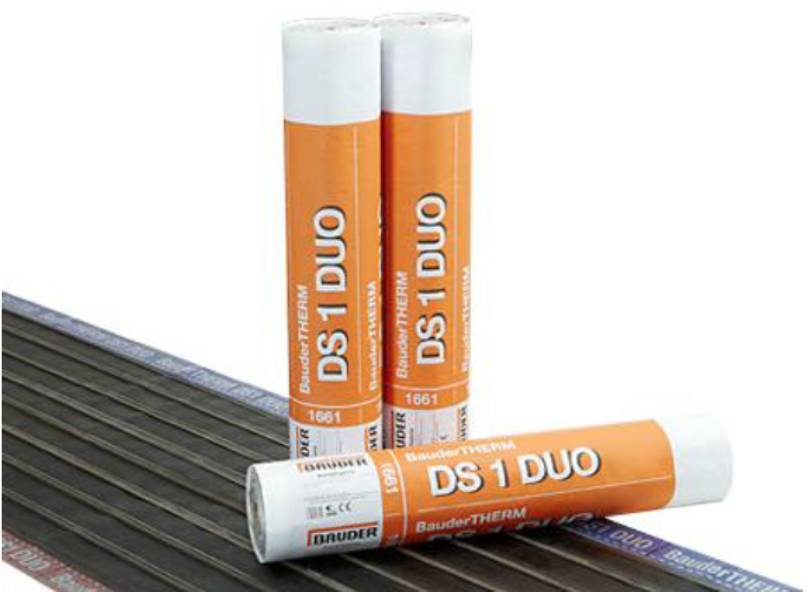

BauderTHERM DS 1 DUO Air & Vapour Control Layer

Name: BauderTHERM DS 1 DUO Air & Vapour Control Layer
Brand: Bauder Ltd
SKU: pu6rPrktnvgUFEiCVf814U

Verified by manufacturer 2 days ago

Bauder Ltd

Third party certifications:

EPD
Certificate type

Self-adhesive SBS elastomeric bitumen air and vapour control layer (AVCL).

Jump to:

+44 (0)1473 257671 Website

Application

Air & Vapour Control Layer for use in a warm roof flat roofing system. Top surface with heat-activated THERM-stripes for adhering certain insulation types.

Description

Elastomer bitumen air & vapour control layer, self-adhesive with variable technology for lap sealing. The two side laps of the membrane have differing finishes. On one lap there is a self-adhesive finish, whist the opposite lap has a glass fleece. This allows the membrane to be sealed with either a gas

torch or hot air welder.

Only to be used as part of a full Bauder Waterproofing System.

General information

Color	Black
Finish	- Manufacturer guidance Top: Heat activated bitumen stripes with mica between. Bottom: Peel off release film covering self-adhesive bitumen.
Material	Bitumen Aluminium Polyester
Shape	Rectangle
Length	7500 mm
Width	1080 mm
Height	3.5 mm
Warranty description	- Manufacturer guidance A comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information.

Uniclass	Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary
CAWS	J41/395 Air and vapour control layer J41/110 Built-up reinforced bitumen membrane warm deck roof covering J41/115 Single-layer reinforced bitumen membrane warm deck roof covering J41/10 Reinforced bitumen membrane warm deck roof covering

Specification data - Reinforced bitumen roofing sheets

Material	-
Carrier material	Polyester coated aluminium foil and glass fleece.
Bitumen modification	Elastomeric.
Thickness (minimum)	3.5 mm.
Weight (minimum)	4.5 kg/m².
Surface finish	-
Top	Heat activated bitumen stripes with mica between.
Underside	Self-adhesive backing.
Colour	Black.
Third-party certification	BBA Certificate 10/4744, Environmental Product Declaration S-P-00414, BRE Green Guide A+ to B rating (depending on deck type).

TensileStrength	Length: ≥400/50 N/mm; Diagonal: ≥300/50 N/mm. Guidance for specification option: To EN 12311-1.
Elasticity	Length and diagonal: ≥2%. Guidance for specification option: To EN 12311-1. Manufacturer guidance Elasticity at fracture of re-inforcement.
Water vapour transmission	≥1500. Guidance for specification option: To EN 1931.
Watertightness	Type B (passed). Guidance for specification option: To EN 1928.
Reaction to fire	Class E. Guidance for specification option: To EN 13501-1.
Water vapour resistance	7500 MNs/g.

Sustainability data

Country of product manufacture	Germany
Material	Bitumen Aluminium Polyester
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	0.05 kg CO₂ eq/m² Manufacturer guidance Please refer to EPD on the Bauder website. EPD data can vary, please ensure that the scope and context of the EPD data is considered when comparing EPD’s for different products.
