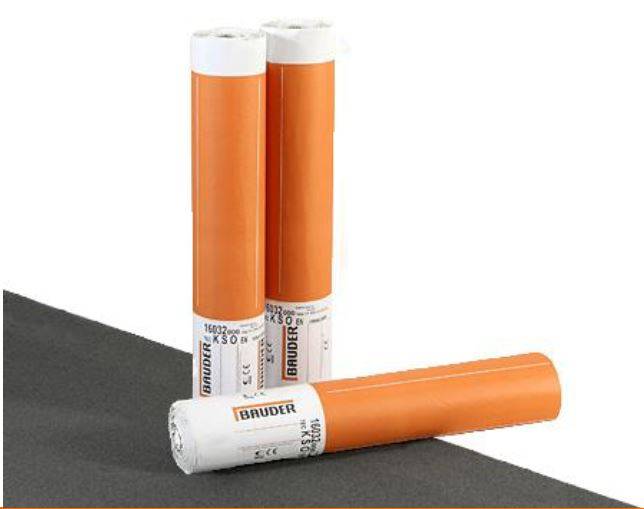

BauderTEC KSO-P SN Capping Sheet

Name: BauderTEC KSO-P SN Capping Sheet
Brand: Bauder Ltd
SKU: xnEDPerLBRwLKZkkvHTMSz

Verified by manufacturer 2 days ago

Bauder Ltd

Third party certifications:

EPD
Certificate type
CCPI System
Certificate type

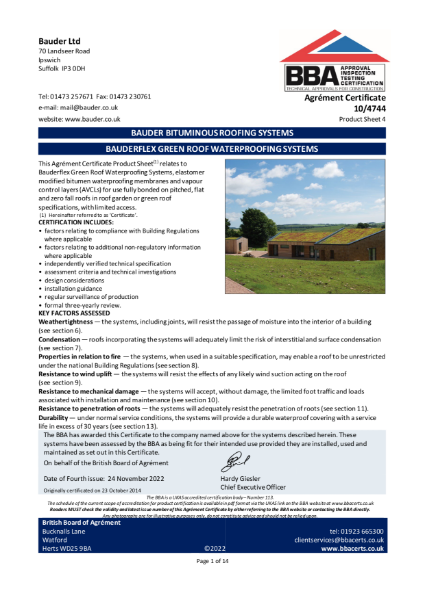

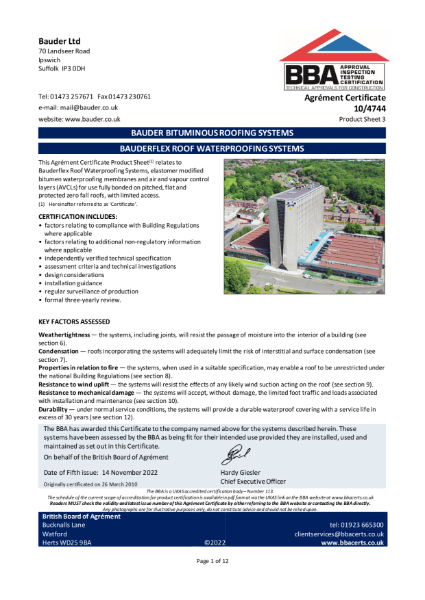

BBA Agrément Certificate
Certificate type

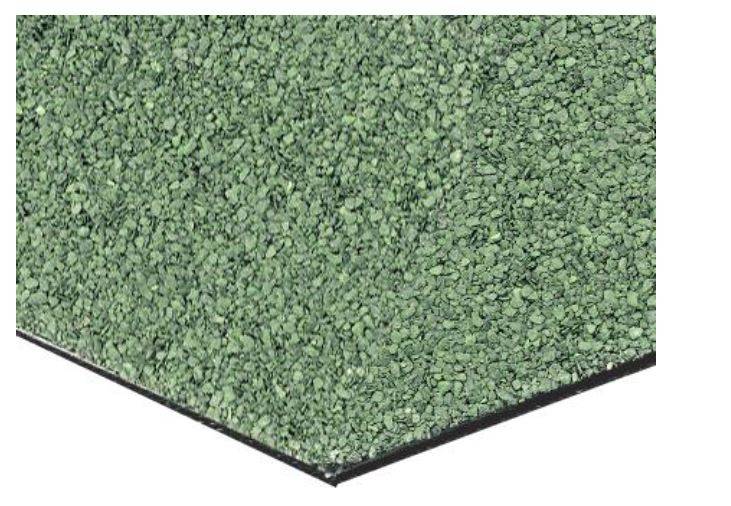

A self-adhesive SBS elastomeric bitumen capsheet and detailing capsheet, with mineral finish.

Jump to:

+44 (0)1473 257671 Website

Application

This product is designed to be installed using hot air welding equipment for whole roof areas and for detailing in areas with close proximity to combustible materials that are not deemed to be torch-safe. It can be used as a capsheet for System Airtech, and as part of, and in conjunction with, all Bauder bitumen membrane systems in flame-free situations.

Description

Polymer bitumen dual formulation torch-on capping sheet. APP plastomeric top and SBS elastomeric bottom self-adhesive capping sheet. The lap of the membrane is equipped with a glass fleece to the underside. This allows the membrane to be sealed with a hot air welder.

Only to be used as part of a full Bauder Airtech System or where flame-free detailing is required in a full Bauder Bituminous system.

General information

Color	Grey Guidance for specification option: Charcoal grey
Finish	Mineral
Material	Bitumen
Shape	Rectangle
Length	5000 mm
Width	1000 mm
Height	4 mm
Warranty description	- Manufacturer guidance A comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information.

Uniclass	Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary
CAWS	J41/10 Reinforced bitumen membrane warm deck roof covering J41/115 Single-layer reinforced bitumen membrane warm deck roof covering J41/135 Single-layer reinforced bitumen membrane cold deck roof covering J41/405 Single-layer reinforced bitumen waterproof covering J41/125 Single-layer reinforced bitumen membrane inverted roof covering

Specification data - Reinforced bitumen roofing sheets

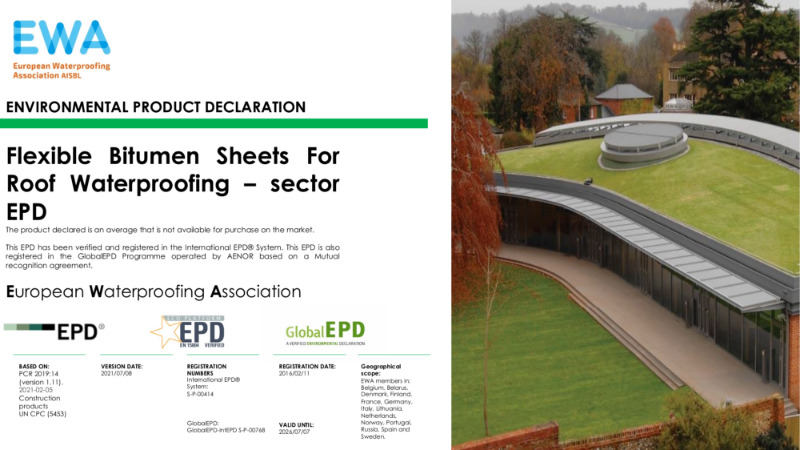

Third-party certification	Environmental Product Declaration S-P-00414, BRE Green Guide A+ to B rating.
Material	-
Bitumen modification	Elastomeric.
Thickness (minimum)	4 mm.
Weight (minimum)	5.1 kg/m².
Surface finish	-
Top	Mineral chippings.
Underside	Peel off release film over self-adhesive bitumen.
Colour	Charcoal grey.

Reaction to fire	Class E.
Watertightness	Type B: Passed.
TensileStrength	Length ≥1000/50 mm and Transverse ≥900/50 mm.
Reinforcement	Polyester.
Elongation	Length and transverse: ≥40%.

Sustainability data

Country of product manufacture	Germany
Material	Bitumen
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	0.05 kg CO₂ eq/m² Manufacturer guidance Please refer to EPD on the Bauder website. EPD data can vary, please ensure that the scope and context of the EPD data is considered when comparing EPD’s for different products.
