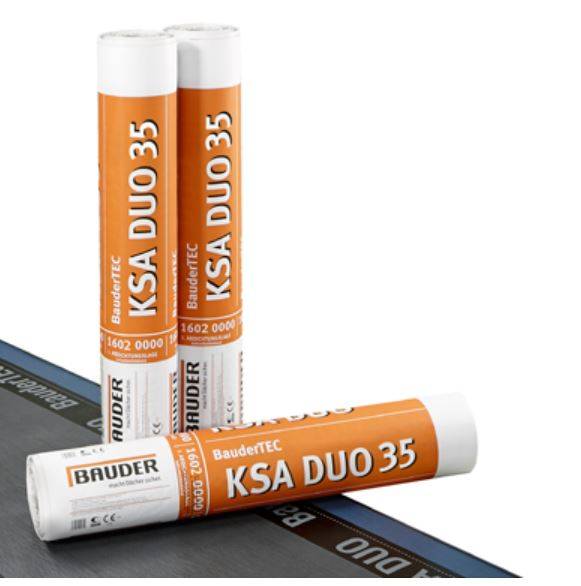

BauderTEC KSA DUO 35 Underlayer

Name: BauderTEC KSA DUO 35 Underlayer
Brand: Bauder Ltd
SKU: gdREQoDFctCVW4VSii7sSr

Verified by manufacturer 2 days ago

Bauder Ltd

Third party certifications:

EPD
Certificate type
BBA Agrément Certificate
Certificate type
CCPI System
Certificate type

Self-adhesive SBS elastomeric bitumen underlayer.

Jump to:

+44 (0)1473 257671 Website

Application

Underlayer in a flat roof system

Description

Elastomer bitumen self-adhesive underlayer with variable technology for lap sealing. The two side laps of the membrane have differing finishes. On one lap there is a self adhesive finish, whilst the opposite lap has a glass fleece. This allows the membrane to be sealed with either a gas torch or hot air welder.

Only to be used as part of a full Bauder Total Roof System PLUS Waterproofing System.

General information

Color	Grey
Finish	Foil
Material	Bitumen Guidance for specification option: SBS elastomeric bitumen.
Shape	Rectangle
Length	7500 mm
Width	1000 mm
Height	3.5 mm
Warranty description	- Manufacturer guidance A comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information.

Uniclass	Pr_25_57_08_75 Reinforced bitumen roofing sheetsPrimary
CAWS	J41/14 Reinforced bitumen membrane inverted roof covering J41/12 Reinforced bitumen membrane cold deck roof covering J41/130 Built-up reinforced bitumen membrane cold deck roof covering J41/120 Built-up reinforced bitumen membrane inverted roof covering J41/115 Single-layer reinforced bitumen membrane warm deck roof covering J41/10 Reinforced bitumen membrane warm deck roof covering J41/110 Built-up reinforced bitumen membrane warm deck roof covering

Specification data - Reinforced bitumen roofing sheets

Material	-
Bitumen modification	Elastomeric.
Thickness (minimum)	3.5 mm.
Weight (minimum)	4 kg/m².
Surface finish	-
Top	Foil.
Underside	Peel off release film covering self-adhesive bitumen.
Colour	Grey.
Third-party certification	BBA certificate 10/4744, EPD S-P-00414, BRE Green Guide A+ to B (dependent upon deck type).

Reinforcement	200 g/cm² glass fleece.
Elongation	Length and transverse: ≥2%.
TensileStrength	Length and Transverse: ≥1000 N/ 50 mm.
Watertightness	Passed at 100 kPa/24h.
Reaction to fire	Class E.

Sustainability data

Country of product manufacture	Germany
Material	Bitumen Guidance for specification option: SBS elastomeric bitumen.
Embodied carbon A1-A3 (production stage) as defined in BS EN 15804	0.05 kg CO₂ eq/m² Manufacturer guidance Please refer to EPD on the Bauder website. EPD data can vary, please ensure that the scope and context of the EPD data is considered when comparing EPD’s for different products.
