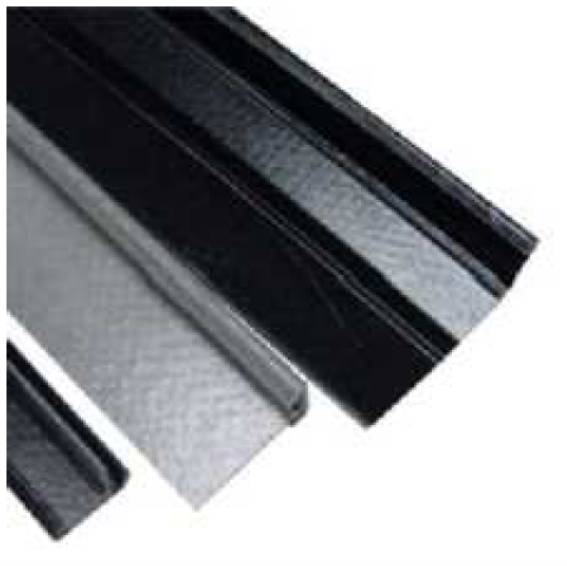

Bauder GRP Watercheck Trim
Verified by manufacturer 8 months ago
Glass reinforced plastic trim.
Application
Suitable for use at the roof edge with Bauder Bituminous Roof Systems and Bauder Cold Liquid Applied Waterproofing Systems.
IMPORTANT: Bauder GRP Water Check Trim to be used on parapets and perimeter kerbs wider than 200mm – must not
be used on its own as a check kerb.
Description
A high quality, maintenance free, GRP Trim for use at the roof edge with Bauder Bituminous Roof Systems. It has a far lower coefficient of thermal expansion than aluminium or steel meaning less movement at the joints, along with a higher strength to weight ratio.
Only to be used as part of a full Bauder Waterproofing System.
General information
Color | Black |
Material | Glass Reinforced Plastic (GRP) |
Shape | Rectangle |
Length | 3000 mm |
Width | 80 mm |
Height | 2.5 mm |
Warranty description | Manufacturer guidanceA comprehensive range of guarantee options are available. Please contact your local Bauder Area Technical Manager for more information. |
Uniclass | |
CAWS | J41/12 Reinforced bitumen membrane cold deck roof covering J41/14 Reinforced bitumen membrane inverted roof covering J41/10 Reinforced bitumen membrane warm deck roof covering J41/345 Perimeter trims |
Specification data - Roof membrane perimeter trims
Material | GRP. |
Size | 80 x 65 mm.Guidance for specification option: Face depth x fixing arm. |
Colour | Black. |
Length (maximum) | 3 m. |
Accessories | Internal jointing sleeves.90° pre-formed angles. |
Thickness: | 2.5 mm. |
Sustainability data
Country of product manufacture | China |
Embodied carbonA1-A3 (production stage) as defined in BS EN 15804 | Manufacturer guidancePlease refer to EPD on the Bauder website. |
Literature
Bauder GRP Trim & GRP Watercheck Trim
Flat Roof Design Considerations - Bauder
New Build Flat Roof Solutions - Bauder brochure
Refurbishment Flat Roof Solutions - Bauder brochure
Reinforced Bitumen Membrane Systems - Bauder brochure
Rooflights, Outlets & Products - Bauder
