Bauder Bitumen Cable Duct DN 110
Verified by manufacturer 3 days ago
Weatherproof sleeve for cables and pipes.
Application
Compatible with Bauder Bitumen waterproofing systems.
Description

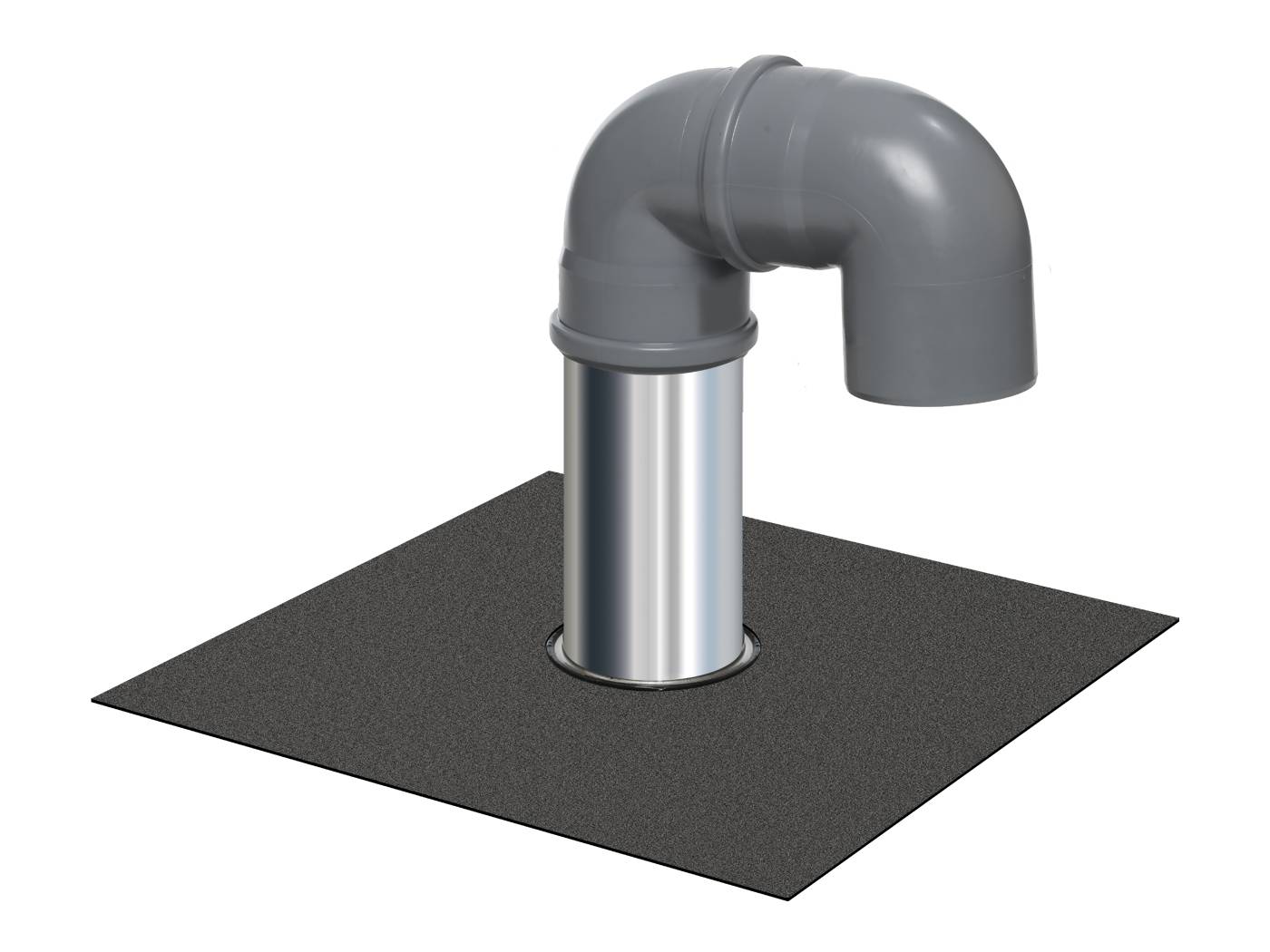

Designed to provide a weatherproof sleeve for cables or pipes which penetrate through a flat roof. Supplied with an integral SBS bitumen membrane flange for easy installation.
The two elbows direct cables and pipes either horizontally or vertically and shelter the exit point from rain or water ingress.
General information
Color | Grey Silver |
Material | Stainless steel Guidance for specification option: Base plate and pipe Bitumen Guidance for specification option: Membrane flange PVC Guidance for specification option: PVC elbows |
Shape | Other |
Length | 330 mm Guidance for specification option: Base Plate dimension |
Width | 330 mm Guidance for specification option: Base Plate dimension |
Height | 380 mm |
Warranty description | Manufacturer guidanceOnly to be used as part of a full Bauder Bitumen Waterproofing System. Please refer to Waterproofing System for further information. |
Uniclass | |
CAWS | P30/30 Pipeducts P30/320 Pipeducts |
Specification data - Pipe sleeves
Classification data | |
Material | Stainless Steel base plate and pipe, SBS bitumen membrane flange and PVC elbows. |
Form | RBM = GB14109700. |
Size: | Baseplate: 330 x 300 mm. Membrane flange size: 500 x 500 mm. |
Diameter | Duct diameter: 110 mm. |
Height: | Duct height: 380 mm. |
Sustainability data
Material | Stainless steel Guidance for specification option: Base plate and pipe Bitumen Guidance for specification option: Membrane flange PVC Guidance for specification option: PVC elbows |
Literature

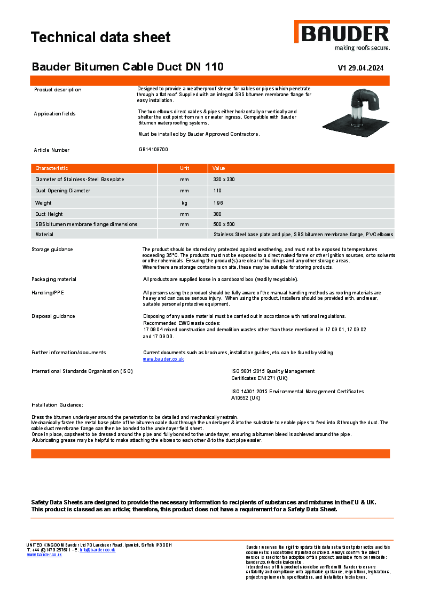

Bauder Bitumen Cable Duct DN 110 - Technical Data Sheet
