A heavy duty, industrial, single skin partitioning system designed for secure storage and protective screening.
Bastion is a fully demountable, relocatable single skin steel partitioning system designed and manufactured for secure storage and protective screening. The system, of heavy duty angle frame construction is based on standard panels in full steel, full mesh, steel and mesh or steel and glass and comes complete with a range of door styles. All components are factory finished in epoxy powder coat. The system offers simple and quick installation.
| Color | Sandstone - BS.08.B.17, Grey - BS.0.A.05, Grey - RAL 7037, White - RAL 9010 & Blue - RAL 5010. Non- standard colours are available on request |
| Material | Carbon steel |
| WarrantyDescription | Our warranty shall apply when the products supplied by Troax and installed in accordance with our standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required |
| Uniclass 2015 |
| Product Reference | Bastion partitioning |
| Partition height | 2440 mm2743 mm3000 mm3657 mm |
| Partition abutments | - |
| Head | Insert requirements. |
| Deflection allowance | Insert requirements. |
| Floor | Insert requirements. |
| Wall/ Vertical structure | Insert requirements. |
| Framing | Exposed angle frame |

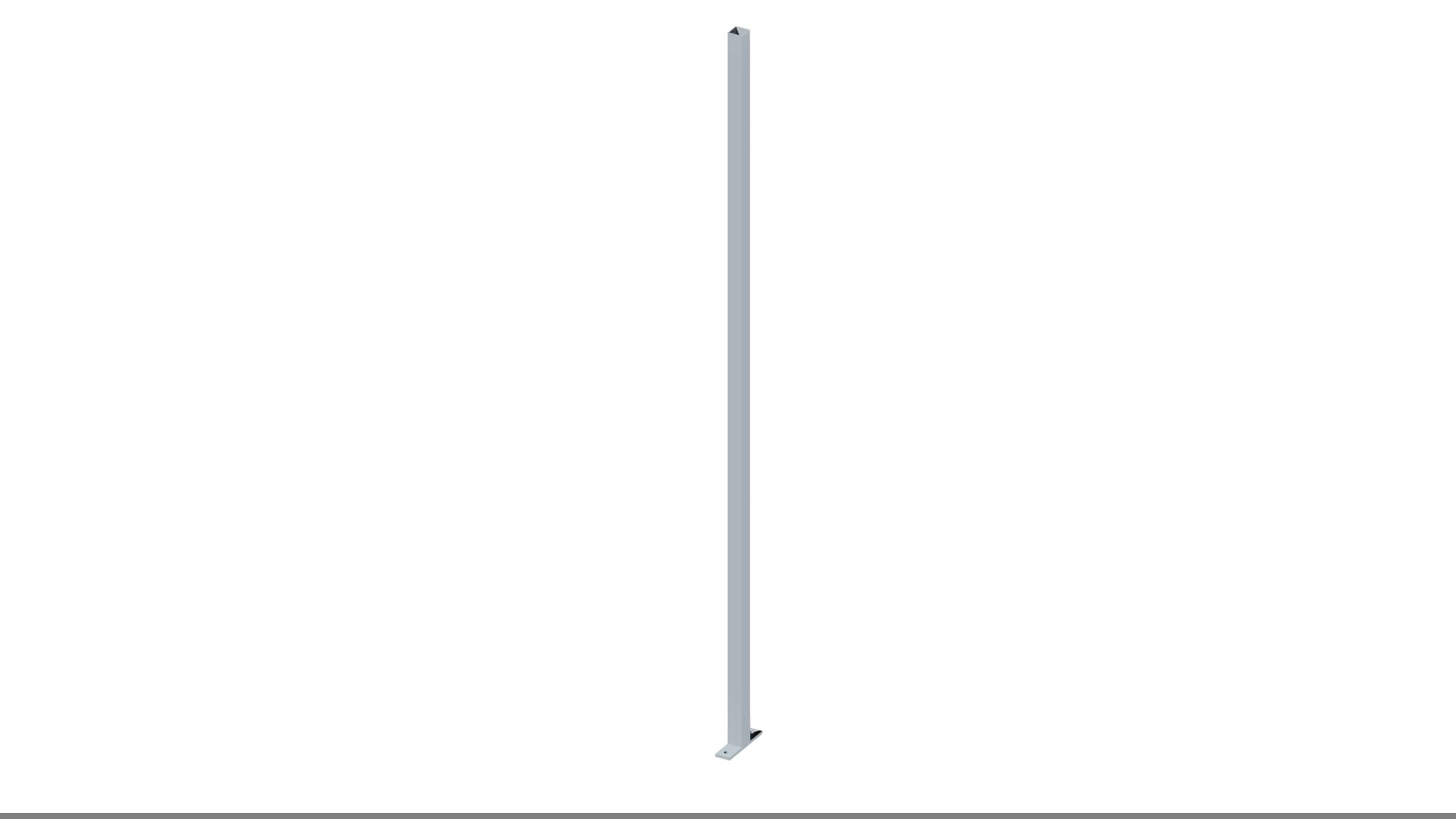

| Junctions/ Corners | 40 x 40 mm hollow section steel mullions to corners and junctions with 40 x 40 or 100 x 50mm hollow section steel support mullions at 3600 mm centres, bolted to the floor with M10 countersunk expanding anchors |
| Trim | Top capping channel |
| Panels | - |
| Type | Full meshFull steelSteel/ GlassSteel/ Glass/ SteelSteel/ Mesh |
| Width | Insert requirements. |
| Finish | Epoxy powder coated |
| Colour | Grey BS 00A05Grey RAL 7037Sandstone BS 08B17White RAL 9010Blue RAL 5010 |
| Joint treatment | Exposed bolted panels and mullions |
| Glazing | Half glazed from 1251–2400mm above fflGlazed panel from 1251–1987 mm above ffl |
| Glass | 6.4 mm single glazing6 mm single glazing |
| Doorset | - |
| Type | Steel hinged single doorSteel hinged double doorSteel sliding door |
| Door frame | 40 x 40 x 2.5 mm thick angle |
| Door | 900 x 2006 mmSingle leaf. 1000 x 2006 mmSingle leaf. 1800 x 2006 mmDouble leaf. 2000 x 2006 mmDouble leaf. 1200 x 2210 mmSliding. 1800 x 2210 mmSliding. 2400 x 2210 mmSliding. |
| Vision panel | Half glazed |
| Ironmongery | Manufacturer's standard |
| Accessories | Ceiling and lightsDrop-down hatch with hinged flapSliding glass hatch |
| Standard product features | Panel weight: Nominally 14 kg/m² excluding glass. |
| Product Options | Partition abutments: Consult manufacturer for recommendations and details. Panels: Standard widths: 300, 400, 500, 600, 700, 800, 900, 1000, 1200 mm (non-standard widths are available). Standard heights: 2440, 2743, 3000, 3657 mm (non-standard heights and multi-tiered options are available). Configurations:
Consult manufacturer for availability of alternative meshes and to obtain samples. Colour: Partitions are available in a range of five standard colours, but non-standard and corporate colours, to the nearest BS or RAL colour, are available on request. Glass: Glazed panels incorporate a two piece, plastic ‘clip-in’ glazing bead, which accommodates any 6 to 6.4 mm thick glass. Doors:
Ironmongery: Ironmongery options include: 3 lever mortise lock with lever handles, pull handle and push plate, mortise lock with euro profile cylinder, digital lock, claw lock for sliding doors and all doors can be padlockable. Accessories:
|
| Platform | Compatible | Version | Certified to |
|---|---|---|---|
 IFC | IFC2X3 | 2 | 1.3 |
 Revit | Revit 2016 | 3 | 2.0 |
