Bastion is a single skin steel, durable solution for heavy duty partition walls, cages and enclosures available in a variety of styles in powder coated and Hot-Dip Galvanised finishes.

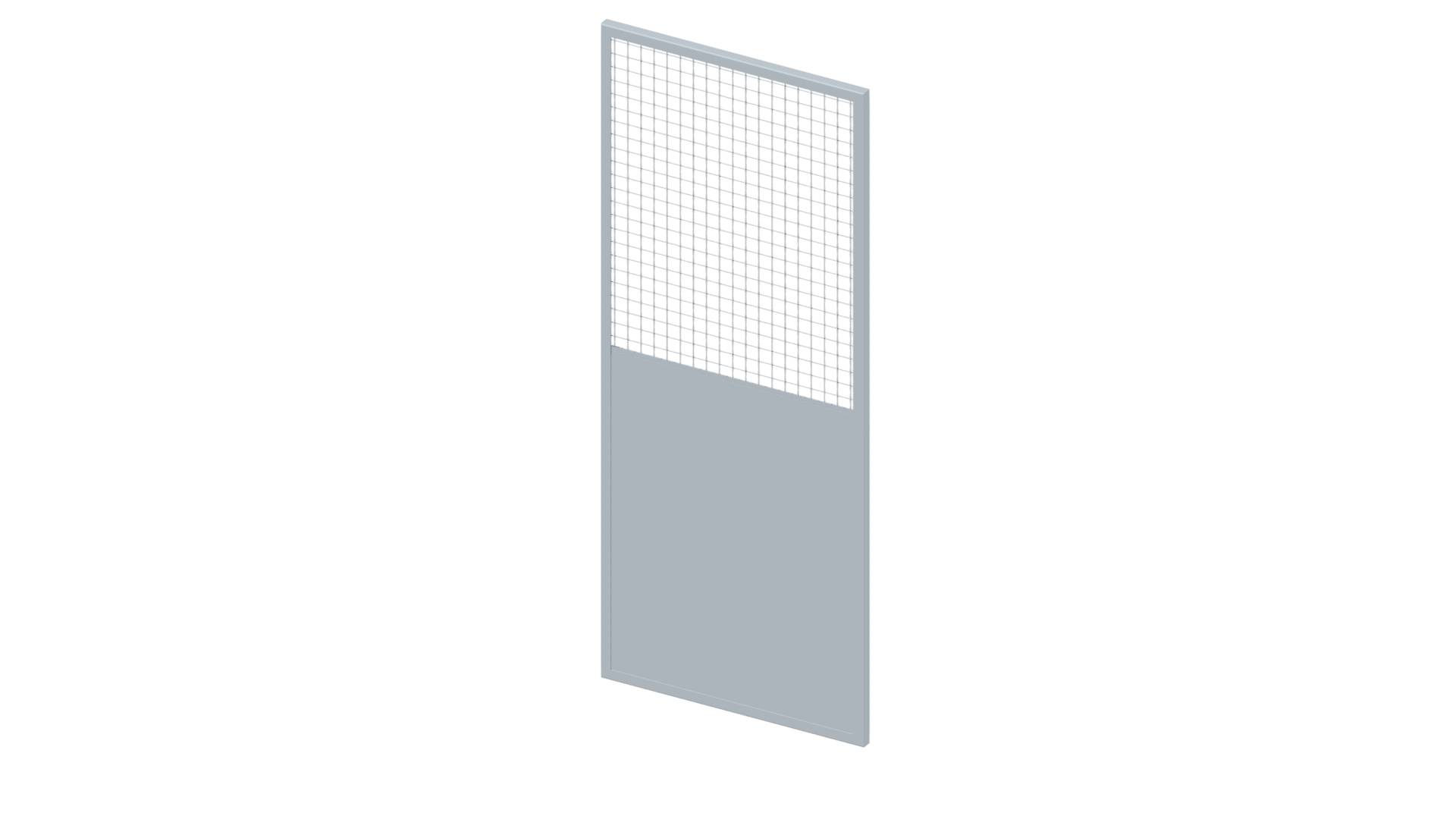

Bastion is a fully demountable, relocatable single skin steel partitioning system designed and manufactured for secure storage and protective screening. The system, of heavy duty angle frame construction is based on standard panels in full steel, full mesh, steel and mesh or steel and glass and comes complete with a range of door styles. All components are factory finished in epoxy powder coat. The system offers simple and quick installation.
Superb strength, adaptability and durability
Our warranty shall apply when the products supplied by Troax and installed in accordance with our standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required
K30/10 Relocatable partition system
K30/130 Relocatable partition system
K30/135 Relocatable partition/ Ceiling system
K30/170 Mesh panel partitions
|Wall/ Vertical structure|
Exposed angle frame
40 x 40 mm hollow section steel mullions to corners and junctions with 40 x 40 or 100 x 50mm hollow section steel support mullions at 3600 mm centres, bolted to the floor with M10 countersunk expanding anchors
Top capping channel
Steel/ Glass/ Steel
Epoxy powder coated
Grey BS 00A05
Grey RAL 7037
Sandstone BS 08B17
White RAL 9010
Blue RAL 5010
Exposed bolted panels and mullions
Half glazed from 1251–2400mm above ffl
Glazed panel from 1251–1987 mm above ffl
6.4 mm single glazing
6 mm single glazing
Steel hinged single door
Steel hinged double door
Steel sliding door
40 x 40 x 2.5 mm thick angle
900 x 2006 mm
1000 x 2006 mm
1800 x 2006 mm
2000 x 2006 mm
1200 x 2210 mm
1800 x 2210 mm
2400 x 2210 mm
Ceiling and lights
Drop-down hatch with hinged flap
Sliding glass hatch
|Standard product features|
Nominally 14 kg/m² excluding glass.
Consult manufacturer for recommendations and details.
Standard widths: 300, 400, 500, 600, 700, 800, 900, 1000, 1200 mm (non-standard widths are available).
Standard heights: 2440, 2743, 3000, 3657 mm (non-standard heights and multi-tiered options are available).
Consult manufacturer for availability of alternative meshes and to obtain samples.
Partitions are available in a range of five standard colours, but non-standard and corporate colours, to the nearest BS or RAL colour, are available on request.
Glazed panels incorporate a two piece, plastic ‘clip-in’ glazing bead, which accommodates any 6 to 6.4 mm thick glass.
Ironmongery options include: 3 lever mortise lock with lever handles, pull handle and push plate, mortise lock with euro profile cylinder, digital lock, claw lock for sliding doors and all doors can be padlockable.
