Bastion is a fully demountable, relocatable single skin steel partitioning system designed and manufactured for secure storage and protective screening. The system, of heavy duty angle frame construction is based on standard panels in full steel, full mesh, steel and mesh or steel and glass and comes complete with a range of door styles. All components are factory finished in epoxy powder coat. The system offers simple and quick installation.

General information
Material

Carbon steel

WarrantyDescription

Our warranty shall apply when the products supplied by Troax and installed in accordance with our standard installation instructions or by Troax installers and will be subject to assessment by a Troax representative if deemed to be required

Uniclass 2015 Partition panels (Pr_25_71_57_60)
Specification data
Product Reference

Bastion partitioning

Partition height

2440 mm

2743 mm

3000 mm

3657 mm

Partition abutments -
Head

Insert requirements.

Deflection allowance

Insert requirements.

Floor

Insert requirements.

Wall/ Vertical structure

Insert requirements.

Framing

Exposed angle frame

Junctions/ Corners

40 x 40 mm hollow section steel mullions to corners and junctions with 40 x 40 or 100 x 50mm hollow section steel support mullions at 3600 mm centres, bolted to the floor with M10 countersunk expanding anchors

Trim

Top capping channel

Panels -
Type

Full mesh

Full steel

Steel/ Glass

Steel/ Glass/ Steel

Steel/ Mesh

Width

Insert requirements.

Finish

Epoxy powder coated

Colour

Grey BS 00A05

Grey RAL 7037

Sandstone BS 08B17

White RAL 9010

Blue RAL 5010

Joint treatment

Exposed bolted panels and mullions

Glazing

Half glazed from 1251–2400mm above ffl

Glazed panel from 1251–1987 mm above ffl

Glass

6.4 mm single glazing

6 mm single glazing

Doorset -
Type

Steel hinged single door

Steel hinged double door

Steel sliding door

Door frame

40 x 40 x 2.5 mm thick angle

Door

900 x 2006 mm

Single leaf.

1000 x 2006 mm

Single leaf.

1800 x 2006 mm

Double leaf.

2000 x 2006 mm

Double leaf.

1200 x 2210 mm

Sliding.

1800 x 2210 mm

Sliding.

2400 x 2210 mm

Sliding.

Vision panel

Half glazed

Ironmongery

Manufacturer's standard

Accessories

Ceiling and lights

Drop-down hatch with hinged flap

Sliding glass hatch

Standard product features

Panel weight:

Nominally 14 kg/m² excluding glass.

Product Options

Partition abutments:

Consult manufacturer for recommendations and details.

Panels:

Standard widths: 300, 400, 500, 600, 700, 800, 900, 1000, 1200 mm (non-standard widths are available).

Standard heights: 2440, 2743, 3000, 3657 mm (non-standard heights and multi-tiered options are available).

Configurations:

  • Full mesh: 40 x 40 x 2.5 mm thick angle frames with 50 x 50 x 3 mm steel mesh welded to framing. Panels are bolted together using M8 x 16 hexagon head bolts.
  • Full steel: 40 x 40 x 2.5 mm thick angle frames with 0.7 mm steel sheets welded to framing. Panels are bolted together using M8 x 16 hexagon head bolts.
  • Steel/ Mesh: 40 x 40 x 2.5mm thick angle frames with 0.7 mm steel sheets and 50 x 50 x 3 mm steel mesh welded to framing. Panels are bolted together using M8 x 16 hexagon head bolts.
  • Steel/ Glass: 40 x 40 x 2.5mm thick angle frames with 0.7 mm steel sheets welded to framing with aperture for glazing. Plastic glazing bead is provided. Panels are bolted together using M8 x 16 hexagon head bolts.

Consult manufacturer for availability of alternative meshes and to obtain samples.

Colour:

Partitions are available in a range of five standard colours, but non-standard and corporate colours, to the nearest BS or RAL colour, are available on request.

Glass:

Glazed panels incorporate a two piece, plastic ‘clip-in’ glazing bead, which accommodates any 6 to 6.4 mm thick glass.

Doors:

  • Single leaf hinged steel doors: 900 and 1000 mm wide x 2006 mm high, with over panels to suit overall height of partition. non-standard door sizes are available.
  • Double leaf hinged steel doors: 1800 and 2000 mm wide x 2006 mm high, with over panels to suit overall height of partition. non-standard door sizes are available.

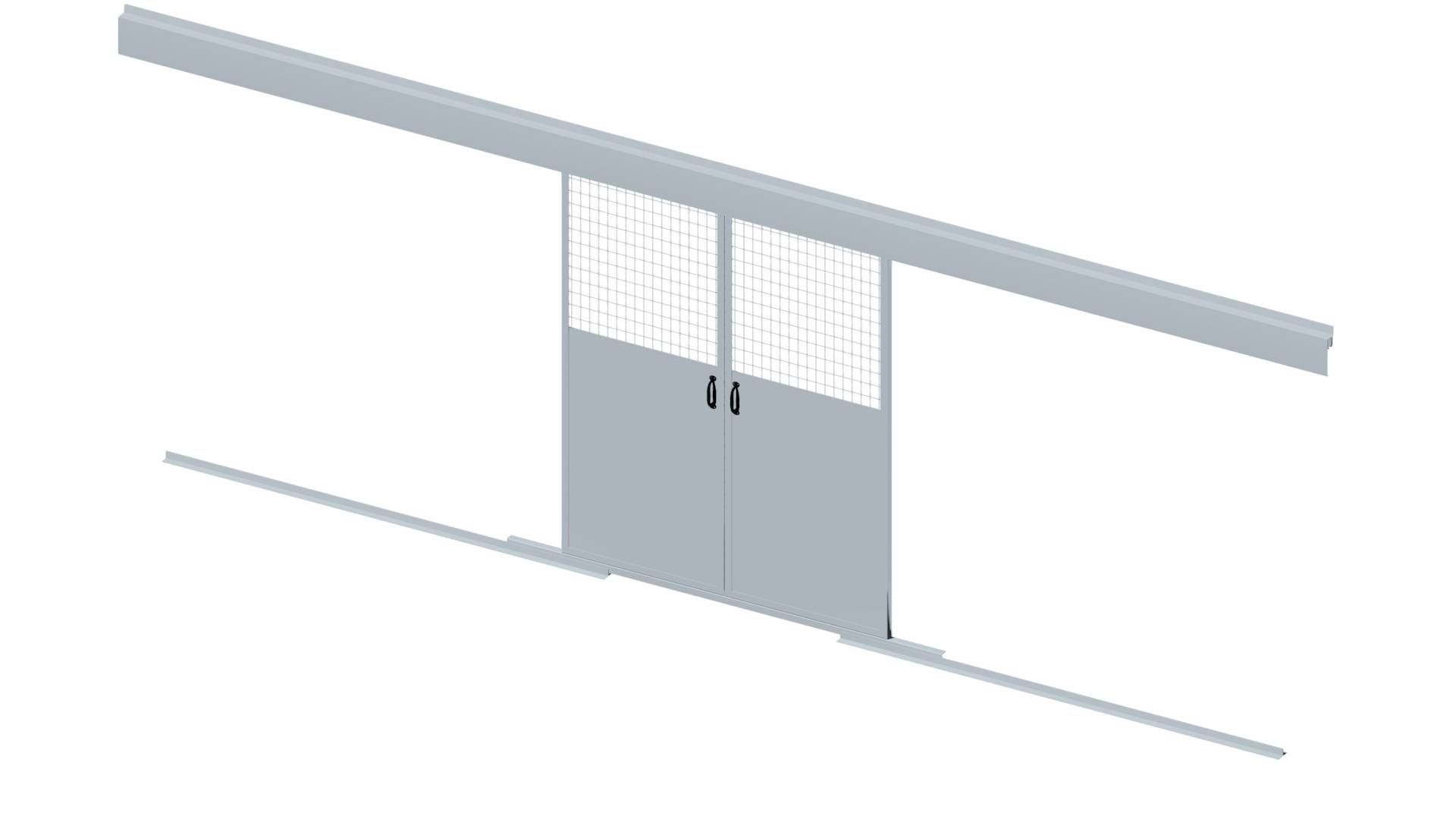

  • Sliding steel doors: 1200, 1800 and 2400 mm wide x 2210 mm high. non-standard door sizes are available. Sliding doors use low friction trolleys for maintenance free operation. Bottom guide rails do not intrude into door opening, and make for free access for all types of traffic. Doors can be single leaf or bi-parting.

Ironmongery:

Ironmongery options include: 3 lever mortise lock with lever handles, pull handle and push plate, mortise lock with euro profile cylinder, digital lock, claw lock for sliding doors and all doors can be padlockable.

Accessories:

  • Steel ceilings, mesh ceilings, self-supported tiled ceilings and suspended tiled ceilings.
  • Drop-down hatch: Hinged steel panel can be used as a serving shelf.
  • Sliding glass hatch: For inter communication between areas.
