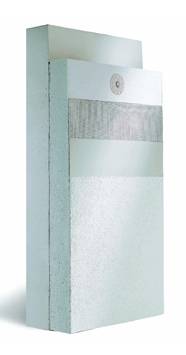

Name: Basic 1 - Insulated façade system
Brand: bJGVbv4JUonqRm4XJNtMjv
SKU: 7Ti3SU2UUFfBaeYuSkuij5

BBA Agrément Certificate

Certificate type

Uniclass 2015

Ss_25_45_72_28 External wall insulation systemsPrimary

CAWS

M21/20 External wall insulation system . . . . . .

M21/210 External wall insulation system

Product Reference

Alsecco Basic 1

Sub primer

Sub Primer HT

Solvent-free synthetic-resin dispersion primer.

Sub Primer P

Synthetic-resin dispersion primer.

Insulation

Adhesive

Armatop MP

Bonding and reinforcing compound.

Thermastick FW

Adhesive for bonding to most manufactured sheathing board substrates.

Type

EPS 15 SE, EPS 70

Polystyrene insulation boards with square edges for fixing by bonding and anchoring.

Thickness

Insert requirement, available 20–400 mm.

Colour

Graphite Enhanced EPS 030

0.030 W/mK.

Graphite Enhanced EPS 031

0.031 W/mK.

Graphite Enhanced EPS 032

0.032 W/mK.

White EPS 037

0.037 W/mK.

White EPS 038

0.038 W/mK.

Mechanical fixings

Insert requirements, many options available dependent on individual application.

Reinforcement

Type

Mesh 32

System mesh.

Panzer Mesh

To prepare highly impact-resistant reinforcing layers, for use with Mesh 32.

Basecoat

Armatop MP

Bonding and reinforcing compound.

Finish

Primer

Top Primer P

Pigmented synthetic-resin bonded primer.

Top Primer SC

Pigmented filled primer.

Top Primer SI

Pigmented silicate bonded primer.

FinishType

Alsilite F

Silicate mineral plaster with a smooth finish.

Alsilite R

Silicate mineral plaster with a grooved finish.

Alsilite T

Silicate mineral plaster with a scraped finish..

Alsitect R

Decorative silicate plaster with a grooved finish.

Alsitect T

Decorative silicate plaster with a scraped finish.

Duratop A

Mineral-based plaster with a scraped finish.

Miratect R

Mineral-based decorative plaster with a grooved finish.

Miratect S

Mineral-based decorative plaster with a smooth finish.

Miratect T

Mineral-based decorative plaster with a scraped finish.

Orgatect F

Decorative synthetic-resin plaster with a smooth finish.

Orgatect R

Decorative synthetic-resin plaster with a grooved finish.

Orgatect T

Decorative synthetic-resin plaster with a scraped finish.

Silitect R

Decorative silicone-resin plaster with a grooved finish.

Silitect T

Decorative silicone-resin plaster with a scraped finish.

Silitect T Ice

Fast-setting silicone-resin decorative render with scraped finish.

Colour

Insert requirement, many options available, contact manufacturer for information.

Protective coating

Paint

Not required

Alsicolor Carbon

Carbon-fibre reinforced silicone resin paint.

Alsicolor Finish

Acrylic-resin paint.

Alsicolor SC

Silicone-resin paint.

Colour

Insert requirement, many options available, contact manufacturer for information.

Accessories

None

Alsecco acrylic-based joint sealant

Alsecco aluminium profiles

Alsecco profile connectors and fixings

Alsecco PU foam

Alsecco PVC-U profiles

Alsecco sealing tape

Alsecco stainless steel profiles

Standard product features

Fire rating:

B-s1, d0 or B-s2, d0.

Product Options

Sub primer:

- Sub Primer HT:

Material: Acrylic-resin dispersion.

Colour: Opaque blue (transparent when dry).

Density: 1.0 g/cm³.

Drying time: 2–4 hours (approximate).

- Sub Primer P:

Material: Styrene acrylate dissolved in solvent.

Colour: Transparent.

Density: 0.82 g/cm³.

Insulation boards:

Material: Expanded polystyrene (EPS).

Size: Up to 1200 x 600 mm.

Tensile strength: ≥80 kPa.

Insulation adhesive:

- Armatop MP:

Material: Cement-based, comprising limestone sand and additives.

Colour: Grey.

Density: 1.4 g/cm³.

Adhesive pull strength: ≥0.08 N/mm² (on polystyrene).

Capillary water absorption: w = <0.2 kg/(m²h^½).

Diffusion-equivalent air-layer thickness: sd = <0.1 m (at 2 mm).

Drying time: 1–3 days (approximate).

- Thermastick FW:

Material: Acrylate copolymer dispersion.

Colour: White.

Density: 1.65 g/cm³.

Drying time: 72 hours (approximate).

Reinforcement:

- Mesh 32:

Material: Multi-stranded alkali-resistant glass-fibres with a polymer coating.

Size: 4 x 4 mm.

Width: 1100 mm.

Weight: 160 g/m².

Colour: White.

Tensile strength: Longitudinal: 2000 N/50mm; Transverse: 2000 N/50mm.

- Panzer Mesh:

Size: 6 x 6 mm.

Width: 1000 mm.

Weight: 330 g/m².

Colour: White.

Tensile strength: Longitudinal: 3200 N/50mm; Transverse: 3500 N/50mm.

Finish primer:

- Top Primer P:

Material: Synthetic-resin dispersion.

Colour: Natural white.

Drying time: 2–6 hours (approximate).

- Top Primer SC:

Material: Acrylic-resin dispersion.

Colour: Natural white.

Drying time: 2–6 hours (approximate).

- Top Primer SI:

Material: Silicate bonded primer for silicate based render finishes.

Colour: Natural white or pigmented.

Drying time: 2–6 hours (approximate).

Platform

Compatible

Version

Certified to

IFC

IFC2X3

1.3

Revit

Revit 2016

2.0
