Application

A solution for perimeter security and property demarcation. Other applications include:

  • Civic and public sector.
  • Residential and commercial.
  • Schools and education.
  • Health and emergency services.
  • Industrial use.
  • Infrastructure.
  • Utilities.

Description

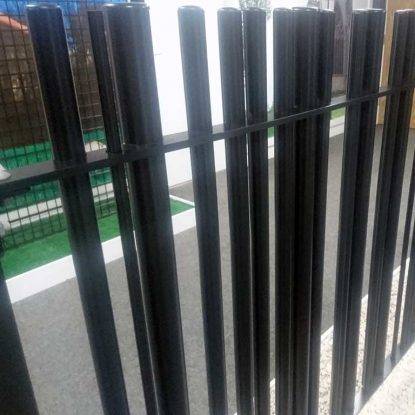

Railing fencing system, which has the ability to custom design and spell out a word in barcode format. Manufactured from various vertical bar tubes in thicknesses between 12–20 mm, dependent on the desired wording.

Features and benefits:

  • Designed with vertical railings to suit the desired word in a barcode format, which can then be scanned using a barcode reader or smartphone.
  • Robust.
  • Unique design.
  • Has horizontal bars at the top and bottom of the panels for strength.
  • Available in a variety of colours.
  • Matching gates are available.

Applications:

A solution for perimeter security and property demarcation. Other applications include:

  • Civic and public sector.
  • Residential and commercial.
  • Schools and education.
  • Health and emergency services.
  • Industrial use.
  • Infrastructure.
  • Utilities.

General information
Finish

Galvanized and polyester powder-coated (PPC)

Uniclass 2015
Carbon steel framed vertical section panels (Pr_25_71_50_15)Primary
Specification data - Carbon steel framed vertical section panels
Product Reference

Barcode Railings

Height

0.5–2 m. Consult manufacturer and insert requirements.

Colour

Insert RAL colour requirement.

Fixing

Bolt down

In ground

On wall

Gates -
Pedestrian

Required

Single leaf, 1.2 m wide, or width to suit, consult manufacturer and insert requirements.

Not required

Vehicular

Required

Single or double leaf, 3.0 m wide, or width to suit, consult manufacturer and insert requirements.

Not required

Post finials

Required

Not required

Accessories/ Other requirements

Consult manufacturer and insert customization requirements.

Standard product features

Finish:

Galvanized and polyester powder-coated (PPC).

Posts and rails:

Each post is manufactured using square hollow section (SHS) posts.

  • Posts: At 0.5–1.5 m height: 50 x 50 mm; at 1.55–2 m: 70 x 70 mm.
  • Rails: At 0.5–1.5 m height: 40 x 10 mm; at 1.55–2 m: 50 x 10 mm.
  • Post centres: 2760 mm.

Post to panel fixing:

Vertical bar panels are fixed to the posts using slotted cleats, cup square bolts and shear off nuts. Mid panel feet are supplied to support the panel and prevent sagging.

Product Options

Gates:

Available as swing or sliding gates. Framed in a 50 x 50 mm SHS post, with vertical bar style railing infill, slide latch, rubber bump stop and two suitable gate posts. Vehicular gates also come with drop bolts.
