Bailey System 17000 FR (Warm Roof)
Verified by manufacturer 2 months ago

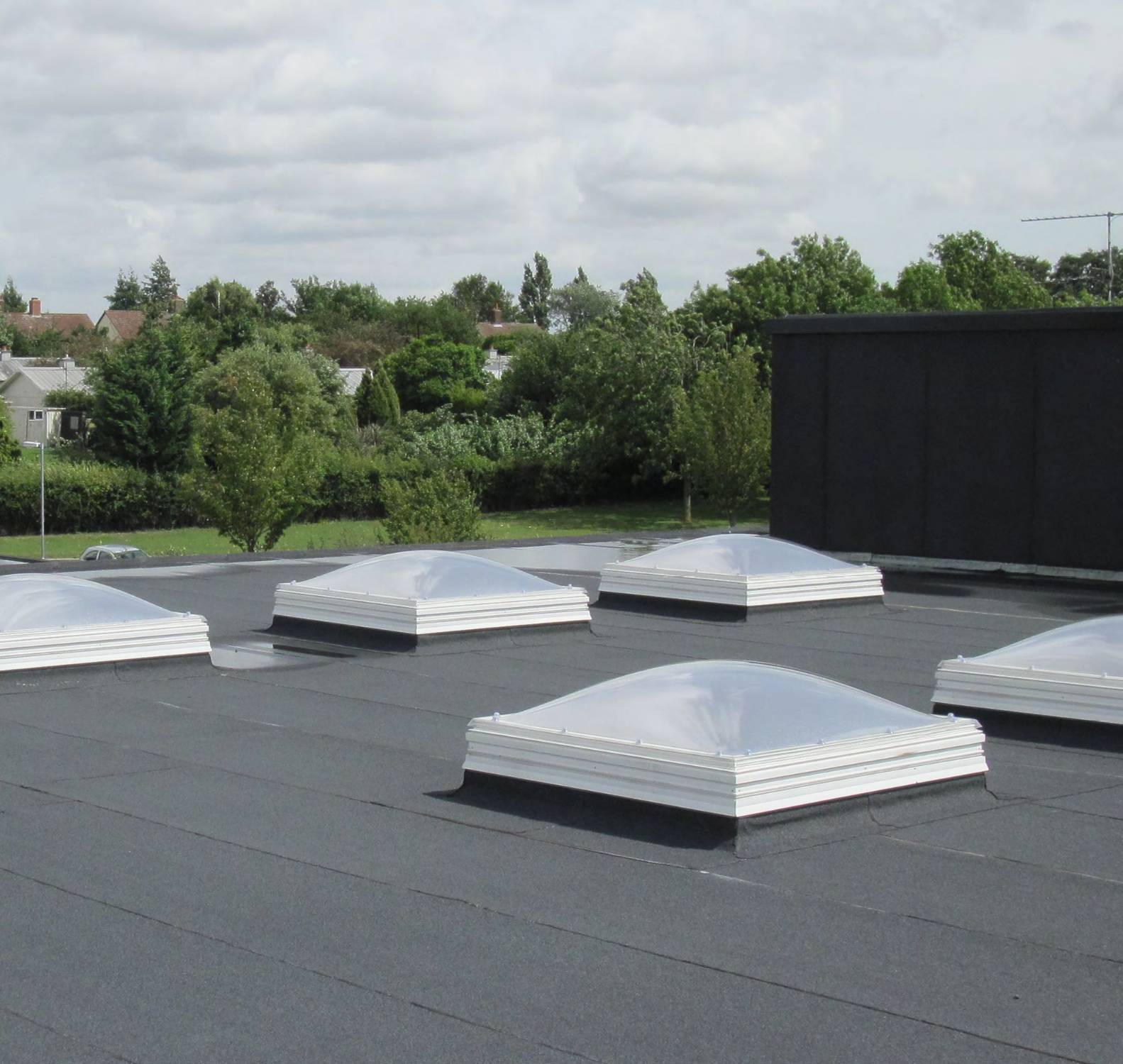

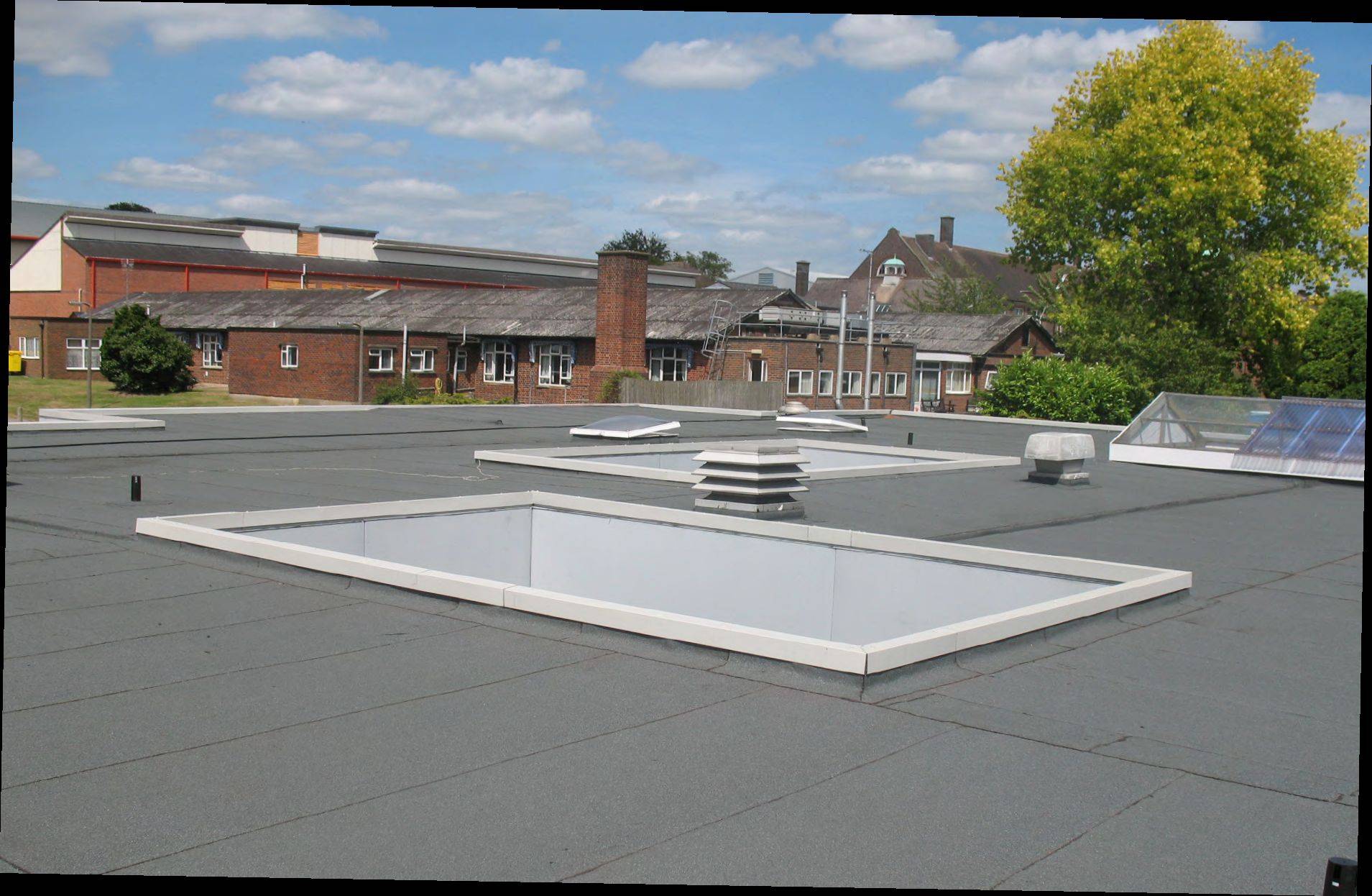

Flame retardant torch-on waterproofing system for flat roofs.
Application
Suitable for refurbishment or new build.
Can be used for many types of roof, including flat, pitched and barrel vaulted.
Can also be used on waveform roofs or those with a distinctive design and shape.
Description
Flame retardant torch-on waterproofing system for flat roofs.
Features and benefits:
- Secure, durable covering for flat roofs.
- BBA certified.
- Manufactured with an untearable, spun bond polyester carrier, coated in polyalphaolefin (PAO) modified bitumen, combining the strength of APP with the flexibility of SBS products.
- Resistant to UV light.
- Life expectancy in excess of 30 years.
- Best suited to projects where a high performance product is a key requirement.
Also available as a self-adhered warm roof system or as a self-adhered cold roof system (all specified separately).
An anti-root version, System 17000 AR can also be specified.
General information
Color | Black Guidance for specification option: Charcoal. |
Finish | Mineral |
Material | Bitumen Guidance for specification option: Spun bond polyester carrier, coated in polyalphaolefin (PAO) modified bitumen. |
Shape | Rectangle |
Size | Guidance for specification option: 1 m-wide roll. |
Length | 8000 mm |
Width | 1000 mm |
Height | 5.0 mm |
Warranty description | 30 year Guidance for specification option: Consult manufacturer for details. |
Uniclass | |
CAWS | J41/110 Built-up reinforced bitumen membrane warm deck roof covering J41/10 Reinforced bitumen membrane warm deck roof covering |
Product range |
Specification data - Reinforced bitumen membrane warm roof covering systems
Preparation | |
Horizontal work | Bailey self-adhesive membrane primer.Guidance for specification option: 22 L cannister. Bailey AMC high penetration bitumen primer.Guidance for specification option: 25 L drum. |
Skirtings and vertical work | Bailey self-adhesive membrane primer.Guidance for specification option: 22 L cannister. Bailey AMC high penetration bitumen primer.Guidance for specification option: 25 L drum. |
Air and vapour control layer | |
Type | Bailey Alpha-Bar aluminium cored-bitumen self-adhesive vapour barrier.Bailey Alpha-Bar aluminium cored-bitumen torch-on vapour barrier. |
Attachment | Self-adhered.Guidance for specification option: Bailey Alpha-Bar aluminium cored-bitumen self-adhesive vapour barrier only. Gas torch application.Guidance for specification option: Bailey Alpha-Bar aluminium cored-bitumen torch-on vapour barrier only. |
Insulation | |
Type | Bailey Sure-Therm PIR bitumen-faced flat board insulation, __ mm.Guidance for specification option: Insert requirements. Bailey Sure-Therm PIR bitumen-faced tapered insulation scheme, __ falls.Guidance for specification option: Insert requirements; .standard falls: 1:80, 1:60, 1:40. Non-standard falls available. Bailey Sure-Therm PIR glass tissue-faced flat board insulation, __ mm.Guidance for specification option: Insert requirements. Bailey Sure-Therm PIR glass tissue-faced tapered insulation scheme, __ falls.Guidance for specification option: Insert requirements; .standard falls: 1:80, 1:60, 1:40. Non-standard falls available. Bailey Sure-Therm non-combustible mineral wool flat board, __ mm.Guidance for specification option: Insert requirements. Bailey Sure-Therm non-combustible mineral wool tapered insulation scheme, __ falls..Guidance for specification option: Insert requirements; .standard falls: 1:80, 1:60, 1:40. Non-standard falls available. |
Fixing | Bonding with hot bitumen.Sure-Bond PU insulation adhesive.Bailey Sure-Fix insulation tube washers, Bailey Sure-Fix steel deck fixings.Guidance for specification option: To required length. Bailey Sure-Fix insulation tube washers, Bailey Sure-Fix timber deck fixings.Guidance for specification option: To required length. Bailey Sure-Fix insulation tube washers, Bailey Sure-Fix concrete deck fixings.Guidance for specification option: To required length. |
Waterproof covering | |
First layer | |
Type | Bailey Alpha-Vent perforated venting layer. |
Attachment | Loose-laid. |
Intermediate layer | |
Type | Bailey System 17000 3mm torch-on underlay. |
Attachment | Torch-on. |
Top layer | |
Type | Bailey System 17000 FR torch-on mineral capsheet. |
Attachment | Torch-on. |
Detail work | |
Flashings | Bailey System 17000 3 mm underlay and FR torch-on mineral capsheet. |
Skirtings and upstands | Bailey System 17000 3 mm underlay and FR torch-on mineral capsheet. |
Welted drips | Bailey System 17000 FR torch-on mineral capsheet. |
Cover strips | Bailey System 17000 FR torch-on mineral capsheet. |
Surface protection | Bailey 300 g/m² geotextile protection fleece. |
System accessories | Not required.Outlets - specified below.Guidance for specification option: See 'Outlets' for details. Bailey Sure-flow stainless steel leaf guard - F-631-L.Bailey Sure-flow stainless steel parapet leaf guard - F-632-LP.Bailey Sure-flow stainless steel cylindrical leaf guard - F-633-LC.Bailey Sure-flow stainless steel balcony leaf guard - F-634-LB.Bailey Flow-therm standard retaining unit - 25–105 mm - F-652-25/105.Bailey Flow-therm parapet leaf guard - 110 mm - F-663-110.Bailey Flow-therm parapet leaf guard - 75 mm - F-663-75.Bailey Flow-therm parapet connecting pipe - 110 mm - F-664-110.Bailey Flow-therm parapet connecting pipe - 75 mm - F-664-75. |
Execution | Manufacturer guidanceBailey System 17000 FR should only be installed by approved or registered contractors, experienced and trained in the installation of torch-on products |
Outlets | Bailey Sure-flow stainless steel outlet - 40 mm (felt flange) - F-630–40. Bailey Sure-flow stainless steel outlet - 50 mm (felt flange) - F-630–50. Bailey Sure-flow stainless steel outlet - 62 mm (felt flange) - F-630–62. Bailey Sure-flow stainless steel outlet - 70 mm (felt flange) - F-630–70. Bailey Sure-flow stainless steel outlet - 75 mm (felt flange) - F-630–75. |
Sustainability data
Contains Red List materials | No |
