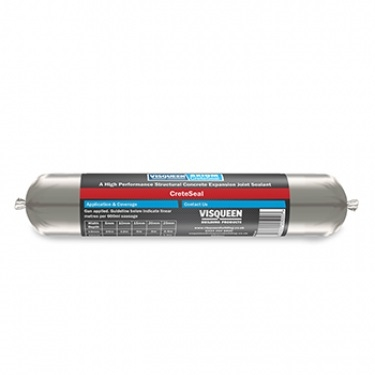

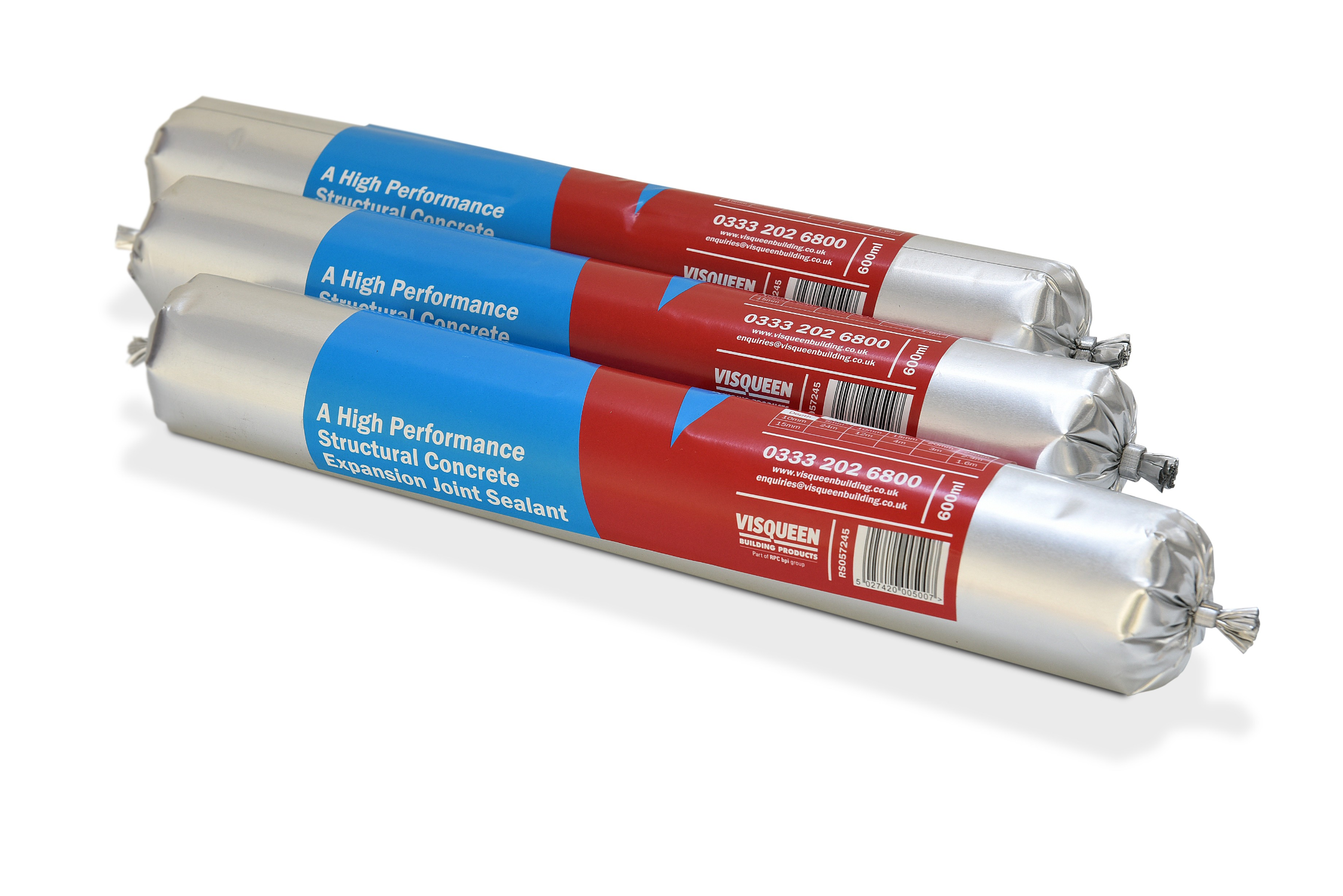

Visqueen Axiom CreteSeal is a low modulus structural concrete expansion joint sealant. The formulation contains both PU and silylated-PU technology resulting in a sealant which includes the best of both technologies and is easy to apply even at temperatures. It has been modified in order to give enhanced thixotropic properties.

The product cures by reaction with atmospheric humidity to produce a joint sealant with a 50% joint movement accommodation factor. Additionally it has been modified in order to have extrusion profile identical to hybrid PU or MS technology. The extrusion rate and tooling of the sealant remain the same throughout a very wide range of temperature and humidity conditions.

Features and benefits:

  • Easy to apply even at low temperatures.
  • Accommodates up to 50% joint movement.
  • Remains elastic < 0ºC.


The product is specially formulated for structural movement joints in concrete as part of the Visqueen Axiom Liquid Waterproofing range.

General information



Accommodates up to 50% joint movement


PU and silylated-PU

Uniclass 2015
Polyurethane (PUR) construction joint sealants (Pr_30_31_76_65)Primary
Specification data - Polyurethane (PUR) construction joint sealants
Product Reference

Visqueen Axiom CreteSeal



Standard product features

Technical characteristics:

  • Size: 600 ml.
  • Adhesion to concrete (ASTM D4541) > 20 (> 2) cm² (N/mm²).
  • Cure rate: 3-4 mm/ day.
  • Hardness (Shore A, ASTM D2240/ DIN 53505/ ISO R868) -25.
  • Modulus at 100% elongation (ASTM D412/ EN-ISO-527-3): 0.2 N/mm².
  • Elongation (ASTM D412/ EN-ISO-527-3): > 900%.
  • Thermal resistance (100 days, 80°C. EOTA TR011): Passed.
  • QUV Accelerated Weathering Test (ASTM G53): Passed, 2000 hours.
