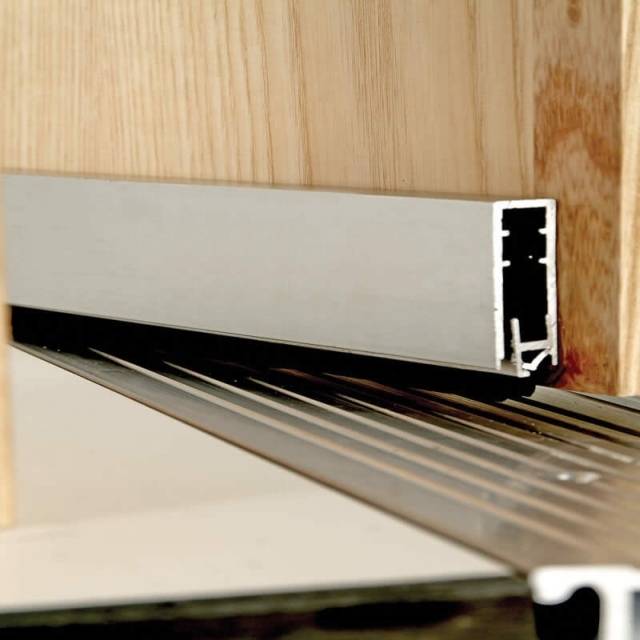

Automatic Door Bottoms Non-handed Surface and Semi-mortice
Description

Providing an effective barrier against; draughts, rodents, noise, light, smoke, odours and fumes, Automatic Door Bottoms also improve security by protecting against under door gap attack at a vulnerable position beneath the door leaf. Activated by the opening and closing action of the door, they employ low-force, which does not conflict with lock/ latch/ closer operation and do not require costly electrical connection or threshold obstruction to operate. They are self-levelling in the closed position.

Features:

  • Works on smooth, hard and uneven surfaces.
  • Easy to install, non-handed and fully reversible.
  • Fire tested to BS476-20 and -22 for 30 and 60 minutes.
  • Reduces maintenance costs.
  • Exceeds Building Regulation and DETR requirements.

Benefits:

  • Ensures staff and patient safety in the event of a fire by maintaining fire integrity of the door allowing safe evacuation.
  • Improves security by protecting against under door gap attack.
  • Saves maintenance costs.
  • Provides an effective barrier against draughts and weather, insects, rodents and other vermin, noise, light and smoke, odours and fumes.

General information

Features

Works on smooth, hard and uneven surfaces

Easy to install, non-handed and fully reversible

Fire tested to BS476-20 and -22 for 30 and 60 minutes

Reduces maintenance costs

Exceeds Building Regulation and DETR requirements

Finish

Milled aluminium

Uniclass 2015

Pr_35_90_33_23 Door threshold weatherstrips and sealsPrimary

CAWS

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/480 Doorsets

L20/55 Doorsets

Show more
Specification data - Door threshold weatherstrips and seals

Product Reference

4301CRL Non-handed Surface and Semi Mortice Automatic Door Bottom

4131CRL Non-handed Surface and Semi Mortice Automatic Door Bottom

434ARL Non-handed Full Mortice Automatic Door Bottom

411ARL Non-handed Full Mortice Automatic Door Bottom

411ARL-DS Automatic Door Bottom suitable for Double Swing Hinges

Length

838 mm

915 mm

1000 mm

1200 mm

Width

Up to 19 mm.

Standard product features

Finish:

Milled aluminium.
