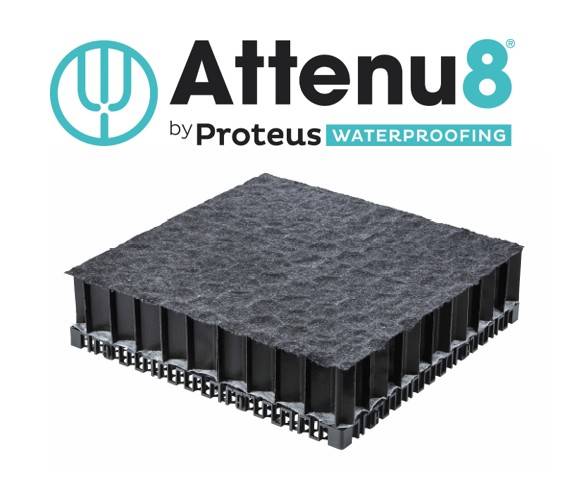

Attenu8® Lite Attenuation Layer - Blue Roof Component
Verified by manufacturer 30 days ago
55 mm depth
55 mm depth
Blue roof component.
Application
For use within the Attenu8® blue roof system.
Description
Attenu8® Lite Attenuation Layer is a drainage layer used in replacement of the heavier Attenu8® Cell units
in lower load rating applications.
Features and benefits:
- Unaffected by moulds and algae, soil borne chemicals, bacteria and bitumen.
- Can be used on a range of blue roof build ups including inverted, warm or uninsulated systems.
Should be installed in accordance with the requirements of BS 6229, BS 8217, BS 8000-0 and BS 8000-4.
See manufacturer's literature for full installation instructions.
General information
Color | Black |
Material | Polypropylene |
Shape | Rectangle |
Length | 2400 mm |
Width | 1200 mm |
Height | 55 mm 70 mm 95 mm 135 mm |
Warranty description | Other Guidance for specification option: Defects arising from lack of maintenance or abnormal use may fall outside of the cover of the Proteus Waterproofing guarantee. |
Uniclass | |
CAWS | Q37/350 Drainage layer |
SKU Code | A8AAL012 |
Specification data - Drainage layer corrugated boards
Classification data | |
Material | Corrugated polypropylene board. |
Compressive strength at 10% compression | 300 kN/m². Manufacturer guidanceMaximum compressive strength. |
Depth | 55 mm. |
Volume | 0.153 m³. Manufacturer guidanceGross volume. |
InternalWaterVolume | 0.15 m³. Manufacturer guidanceNet water volume. |
Unit weight | 5 kg. |
Porosity | 95%. |
DischargeFlowRate | 16 L/m·s. Manufacturer guidanceDischarge capacity at 0% gradient. |
Length | 2400 mm. |
Width | 1200 mm. |
Sustainability data
Contains Red List materials | No |
Material | Polypropylene |
