Ashgrid Duotherm Roofing System
Verified by manufacturer 4 months ago

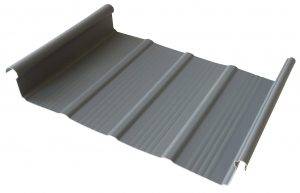

Profiled metal sheet roofing and support system.
Application
- Built-up roof systems (minimum roof pitch 4 degrees).
- Asbestos encapsulation.
- Pitched roofing.
- Sound absorption and acoustic management.
- Refurbishment
Description

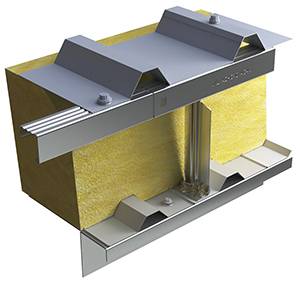

The AshGrid Duotherm system combines the AshGrid support system with high quality exterior roofing sheeting and all the required fixings and accessories.
Ash & Lacy offers a standard 32/1000 profile sheet and 19/1000 liner which is produced in-house.
A vast range of specification requirements can be achieved using AshGrid Duotherm systems, including aesthetics, U-values, acoustics, fire resistance and vapour control.
Features and benefits:
- Sheet length capability of 1.2 m to 11 m.
- 0.7 mm walkable liner & 0.4mm options.
- Lightweight building envelope construction.
- Class 1 and Class 3 rooflights available ex-stock in standard lengths.
- Liner testing based on ACR(M)001:2014 – Test for non-fragility of large element roofing assemblies.
Please note Ash & Lacy can provide a take-off service, including all fixings, AshGrid, insulation, rooflights, fillers and flashings.
General information
Color | Beige Black Blue Bronze Brown |
Finish | Coated |
Material | Steel |
Shape | Trapezoid |
Length | 11000 mm |
Width | 1000 mm |
Warranty description | 25 year |
Uniclass | |
CAWS | H31/10 Metal H31/120 Metal |
Specification data - Metal profiled sheet self-supporting roof covering systems
Liner sheets | |
Material | 32/1000 0.7 mm gauge steel.19/1000 0.4mm gauge steel.32/1000 0.7mm gauge steel with a perforated finish.Guidance for specification option: For ventilation or to provide sound absorption characteristics, perforated in house. |
Primary fasteners | Manufacturer guidanceConsult manufacturer and insert requirements. |
Spacers | AshGrid AG40 Bar and ABV BracketGuidance for specification option:
AshGrid AG40 Bar and AshGrid AB40 Bracket.Guidance for specification option:
|
Acoustic insulation | Manufacturer guidanceInsert requirements. |
Thermal insulation | Manufacturer guidanceInsert requirements. |
External sheets | |
Material | 32/1000 0.7 mm gauge steel. |
Primary fasteners | Manufacturer guidanceConsult manufacturer and insert requirements. |
Secondary fixings | Manufacturer guidanceConsult manufacturer and insert requirements. |
Glazing | None.Class 1 rooflights.Class 3 rooflights.Manufacturer guidanceAvailable ex-stock in standard lengths. |
System accessories | None.Profile fillers.Flashings. |
Finish | Plastisol coated steel. HPS200 steel. Prisma steel. Enamel coated steel. |
Sustainability data
Contains Red List materials | No |
Country of material origin | United Kingdom |
Country of product manufacture | United Kingdom |
Material | Steel |
