AS Acoustic, Smoke and Fire Door Seal

Verified by manufacturer 2 months ago

LP1004AS Acoustic, Smoke and Fire Door Seal

Lorient Variant:
Third party certifications:
  • BBA Agrément Certificate

    BBA Agrément Certificate

    Certificate type

  • QA Certificate

    QA Certificate

    Certificate type

  • Certifire Certificate

    Certifire Certificate

    Certificate type

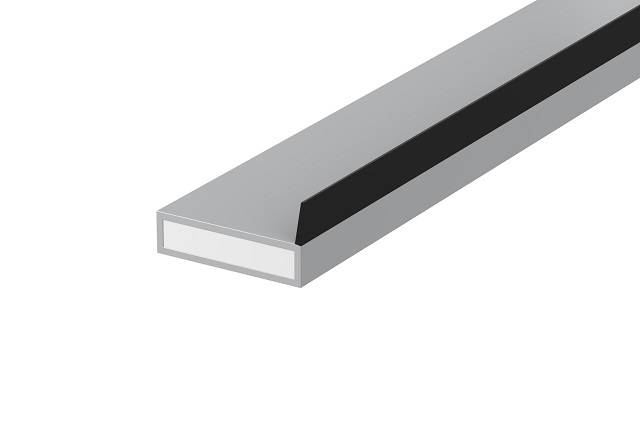

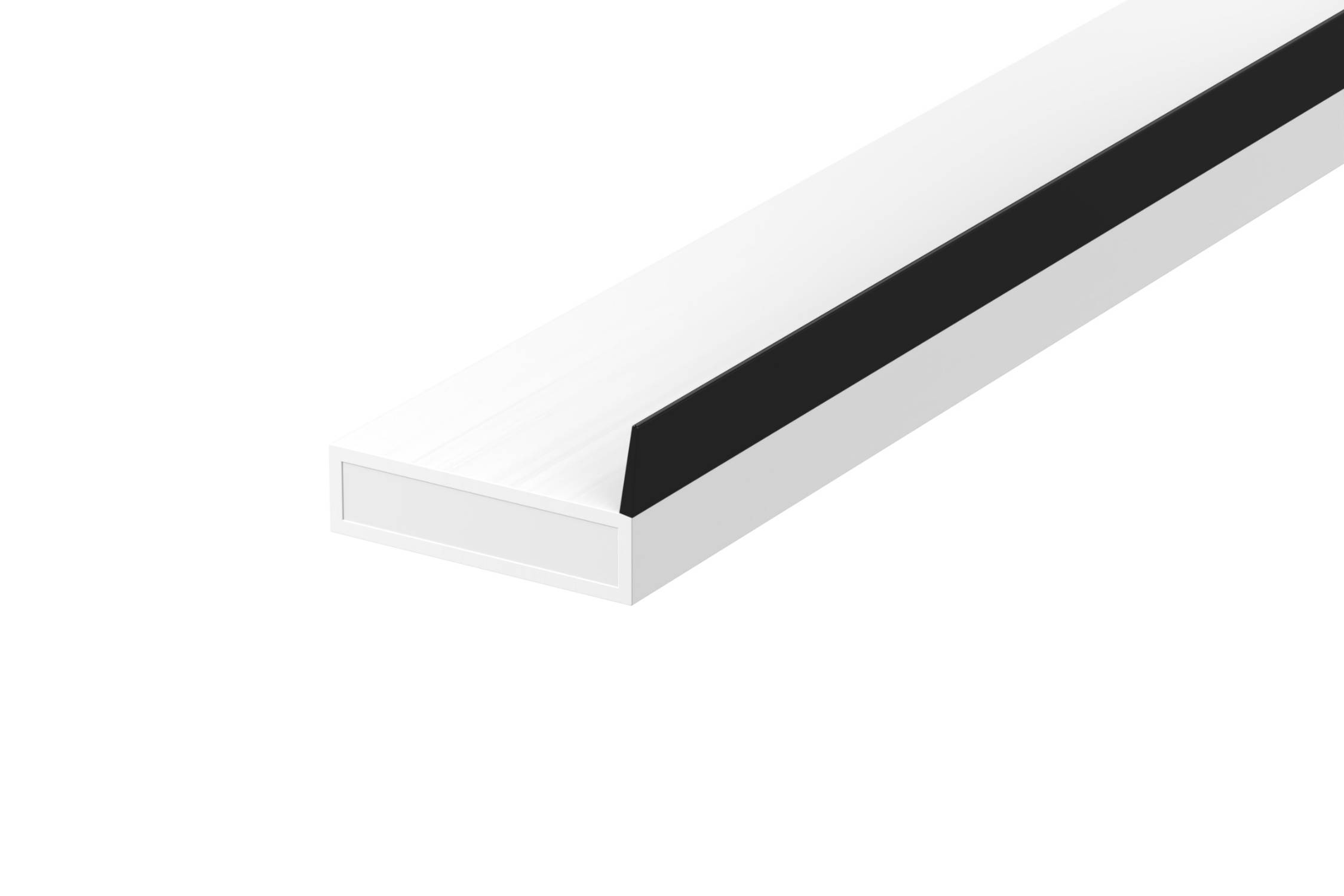

Acoustic, smoke and fire door seal with a single elastomeric fin.

Jump to:
+44 (0)1626 834252 www.lorientuk.com

Application

For single and double leaf doors to protect against sound, smoke and fire. Can be used with any architectural seals. Suitable for wheeled traffic.

Description

Smoke and fire door seal with a single elastomeric fin.

Features and benefits:

  • Door seal with an elastomeric fin, offering smoke and fire protection.
  • Available in a choice of sizes to cover 30 and 60 minute applications.
  • It includes very low frictional resistance for ease of door operation (Document M compliant) and meets smoke requirement BS 9999.
  • Height: Fin: 4 mm.
  • Height: Total: 8 mm.
  • Suitable gap width: 3–4 mm.
  • Fixing: Heavy duty self-adhesive tape.
  • Smoke: Tested to BS 476-31.1.

General information

Color

Black

Standard.

White

Standard.

Grey

Standard.

Brown

Standard, including dark brown.

Red

Available to special order.

Show more

Material

PVC

Polyvinyl chloride casing.

Sodium

Silicate - Encased in PVC.

Other

Elastomeric fin - Flexible.


Intumescent

Shape

Rectangle

Length

1000 mm

2100 mm

Bespoke

Width

10 mm

15 mm

20 mm

25 mm

Height

4mm with 4mm fin

4 mm

Uniclass

Pr_35_90_33_22 Door and window weatherstrips and sealsPrimary

CAWS

L20/20 Wood flush doors

L20/230 Wood flush doors

L20/25 Wood-panelled doors

L20/250 Wood-panelled doors

L20/270 Wood doors

L20/280 Doors

L20/30 Wood doors

L20/310 Wood door frames

L20/330 Wood door frames

L20/370 Door frames

L20/410 Wood doorsets

L20/420 Wood doorsets

L20/430 Wood doorsets

L20/480 Doorsets

L20/52 Wood door frames

L20/55 Doorsets

L20/610 Roller shutters/ curtains

Specification data - Door and window weatherstrips and seals

Standard

Fire: BS 476-22:1987. Fire: BS EN 1634-1:2008. Smoke: BS 476-31.1:1983.

Third party certification

Certifire CF330 & CF341 BBA IFC.

Functions

Acoustic, smoke and fire seals.

Size

Other sizes are available to special order, consult manufacturer for information.

10 x 8 mm.

Materials

-

Seals

Flexible elastomeric fins.

Carriers

Polyvinyl chloride (PVC) encased sodium silicate.

Colour

Black.

Standard.

White.

Standard.

Grey.

Standard.

Brown.

Standard.

Red.

Available to special order.

Silver.

Available to special order.

Cream.

Available to special order.

Dark brown.

Standard.

Length

1000 mm.

2100 mm.

Special order.

Insert requirement.

Width

10 mm.

Acoustic performance

To BS EN ISO 10140-2, 29 dB.

Fire resistance

Tested to BS EN 1634-1 and BS 476-22.

Durability

100 000 cycles.

Finishes

American cherry.

American sycamore.

American white oak.

Ash.

Beech.

Show more

Literature

Acoustic, Smoke and Fire Seals for doors brochure

Acoustic, Smoke and Fire Seals for doors brochure

Acoustic, smoke and fire door seals - datasheets

Acoustic, smoke and fire door seals - datasheets

Door seal finishes

Door seal finishes

AS Seal fitting instructions

AS Seal fitting instructions

Third party certifications

BBA Agrément Certificate

BBA Agrément Certificate

BBA Certificate 92/2841

Certifire Certificate

Certifire Certificate

Certifire CF341

Additional certifications:

  • IFC: Certificate: FRPP454
