Artema
Description

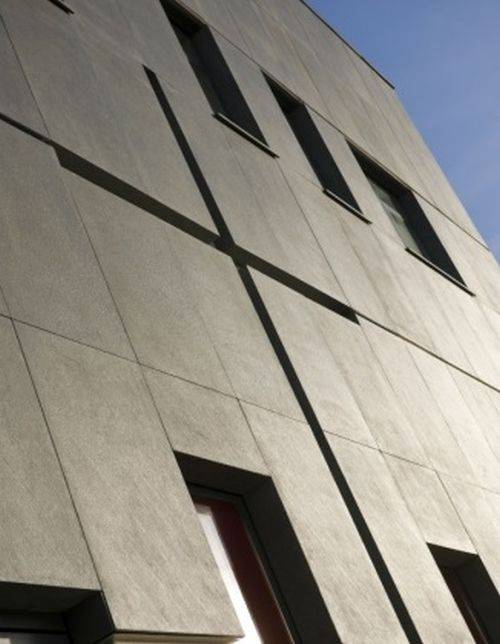

Grooved rainscreen cladding, made in mineral composite, designed for use as a decorative and protective façade over external walls of buildings. The panels offer a choice of different finishes and colours in different sizes. The system includes the panels the horizontal rails and the clamps only. Primary subframe not included.

General information

Finish

Gloss

Matt

Material

Mineral composite

Uniclass 2015

Ss_25_20_70_25 Drained and back-ventilated rainscreen cladding systemsPrimary

CAWS

H92/120 Rainscreen cladding

Specification data - Drained and back-ventilated rainscreen cladding systems

Product Reference

CAREA Anchor Panel Artema

Size

-

Panels

Insert requirements.

Joints

6 mm

7 mm

8 mm

Finish

Gloss

Matt

Colour

Moon

Papyrus

Rhodes

Riven

Shell

Taïga

Urba

Vegetal

Corners

Pre-coloured aluminium profile

Mitred edge panel

Welded corner piece

Standard product features

Material:

Mineral composite.

Thickness:

18 mm.

Air gap:

Nominal 50 mm.

Backing wall:

Suitable for:

  • Concrete.
  • Blockwork.
  • Brickwork.
  • Structural and lightweight steel framing.
  • Timber frame.
  • Curtain walling.

Weight:

Approximately 43 kg/m² (depending on finish).

Panel tolerances:

  • ± 1 mm in height.
  • ± 1.5 mm in length.

Wind resistance:

1.7 kN/m².

Impact resistance (to BS 8200):

  • Standard: D.
  • Reinforced: B.

Thermal conductivity:

1.65 W/mK.

Bending strength:

> 26 MPa.

Resilience:

> 1.3 kJ/m².

Product Options

Size (l x h):

  • Width: Up to 1000 mm.
  • Length: Up to 2400 mm.

Third party certifications
  • Centre Scientifique et Technique du Batiment (CSTB): Certificate: 2/15-1679
