Arriva - Concealed Frame Outward Opening Doors Interior

Arriva - Concealed Frame Outward Opening Doors Interior

SELO Third party certifications:
  • QA Certificate

    QA Certificate

    Certificate type

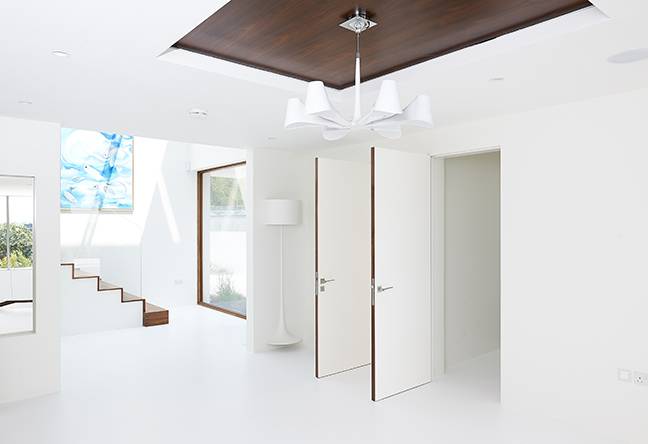

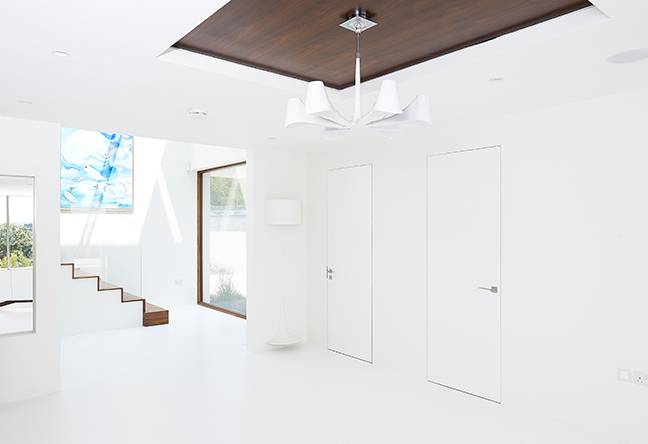

Two-part steel door frame and timber leaf for outward opening single swing doors in metal or timber stud internal walls.

Jump to:
+44 (0)203 8800339 www.selo-uk.com

Application

For gypsum board faced, metal or timber stud internal walls with a thickness of 86–310 mm (FD30) or 96–310 mm (FD60).

Description

Steel section combining two part door frame, reveal lining and edge bead for single swing doors in gypsum board faced, metal or timber stud internal walls.


Features and benefits:

  • Plaster is feathered over perforated face of frame to produce a seamless appearance.
  • Eliminates need for separate lining board or architrave.
  • Suitable for construction of jib doors.
  • Suitable for 30/60 fire rated doors. Maximum door sizes apply.
  • Rapid, economic installation.
  • Durable edges.
  • Choice of size. Specials available.
  • Cold rolled, pre galvanized and annealed steel. Gauge: 0.86 mm. Coating: G90 (approximately equivalent to 90 g/m²).
  • Supplied by manufacturer cut to finished length, fitted with head joiner insert at corners, punched for hinges and strike plate.
  • Door width (maximum): 1000 mm.
  • Door height (maximum): 3000 mm.


Door leaf size (maximum):

Where leaf size is specified, tolerances will be added by manufacturer. Actual maximum varies with door weight and number of hinges; consult manufacturer for details.


- FD30 (w x h):

  • Single: 1000 x 3000 mm.
  • Double: 1000/ 1000 x 3000 mm.


- FD60:

  • Single, wider variant: Widths of 901–955 mm have a maximum height of 2440 mm.
  • Single, taller variant: Widths of 900 mm or less have a maximum height of 2525 mm
  • Double, wider variant: Widths of 901–926 mm have a maximum height of 2440 mm.
  • Double, taller variant: Widths of 900 mm or less have a maximum height of 2480 mm.


Installation:

Screw frame through perforated face to edge studs at 200 mm centres (maximum). Double screw at ends and hinge points.

General information

Color

Available in standard RAL colours and wood veneer.

-

Finish

Choice of finish available to meet application.

-

Material

Steel

 Conforms to ASTM A653.

Timber

Shape

Rectangular

Size

All Arriva doorsets are made to order. Ranges from 400 x 1000 mm –926 x 3000 mm.

-

Uniclass 2015

Pr_30_59_24_97 Wood doorsetsPrimary

CAWS

L20/480 Doorsets

L20/55 Doorsets

Specification data - Wood doorsets Enhanced data

Configuration

Single leaf, single action.

Double leaf, single action.

Doorset size

Widths from 400926 mm. Height from 10003000 mm.

-

Performance

-

Fire performance

-

Fire integrity

Fire resistance:

  • Single leaf doors/ one-and-a-half leaf doors or double doors: 30 minutes or 60 minutes integrity and insulation to BS 476-22.
  • Maximum door sizes may apply; consult supplier.
  • Third party assessment may support applications in addition to those tested; consult supplier.

Unrated.

FD30.

FD60.

Acoustic performance

Not required.

23 dB.

25 dB.

29 dB.

30 dB.

32 dB.

Frame

-

Material

Folded mild steel.

Conforms to ASTM A653.

Perimeter seals or inserts

Not required.

Smoke seal.

Finish

Unfinished.

Galvanized steel, for site painting. As standard.

Polyester powder coated.

Special order. Minimum quantities may apply.

Colour

Standard RAL.

Door leaf

-

Thickness

44 mm.

29 kg/m².

54 mm.

35 kg/m².

Core

Solid core.

High density solid timber.

Facings

Timber, laminate.

Insert requirement.

Timber, paint grade.

For site finishing.

Timber, pre-painted.

Insert colour requirement.

Timber, wood veneer.

Insert requirement.

Perimeter seals

Not required.

Smoke seal.

Finish

Primed ready for site finish.

Pre-painted to standard RAL colour.

Laminated.

Timber veneered with clear lacquer.

Colour

-

External

Standard RAL.

Glazing

-

Type

Not required.

Clear glass.

Satin etched glass.

Hardware

Standard flush hinges are surface mounted to frame. Purpose made. ROC-York/ Tectus hinges are secured to back box on the frame with cut-outs provided, prior to frame installation. Hinge cutouts to doors are pre-prepared in the factory. Notch in timber substrate specific to each hinge.

Not required.

RY-45 ROC York three-way adjustable concealed hinge.

45 kg per pair, satin chrome finish, door thickness 44 mm only.

RY-80 ROC York three-way adjustable concealed hinge.

80 kg per pair, satin chrome finish, door thickness 44 mm only.

TE 527 Tectus FD60 three-way adjustable concealed hinge.

120 kg per pair, satin chrome finish, door thickness 54 mm only.

Visible butt hinge, 44 mm.

Stainless steel finish.

Visible butt hinge, 54 mm.

Stainless steel finish.

Latch hinge.

Stainless steel finish.

Accessories

Not required.

Vision panel.

Visible door closer.

Concealed door closer.

Strike plates

As schedule.

Stainless steel.

Standard, with plastic insert.

Door lining

Consult manufacturer and insert requirements.

Doorstop

Section C45.

Section C56.

Skirting

Not required.

Flush.

Surface mounted.

FSC certified

Required.

Not required.

Product Reference

Arriva - Concealed Frame Outward Opening Doors

Environmental information

Country of material origin

United Kingdom

Country of product manufacture

United Kingdom

Literature

Selo Concealed Frame Doorsets Brochure

Selo Concealed Frame Doorsets Brochure

Third party certifications

  • BM Trada Exova: Certificate: RF08025B : - FD30
  • BM Trada Exova: Certificate: RF13087 : - FD30
  • BM Trada Exova: Certificate: IF13002 : - FD30
  • BM Trada Exova: Certificate: IF13043 : - FD30
  • BM Trada Exova: Certificate: WF 375 661 : - FD30
  • BM Trada Exova: Certificate: FEIF14040 : - FD30
  • BM Trada Exova: Certificate: BMTFEIF14078 : - FD30
  • BM Trada Exova: Certificate: RF10029 : - FD60
  • BM Trada Exova: Certificate: RF12049 : - FD60
