Armstrong METAL Clip-In T-Clip F - Concealed Grid Ceiling System

Name: Armstrong METAL Clip-In T-Clip F - Concealed Grid Ceiling System
Brand: Knauf Ceiling Solutions Limited
SKU: 91vwc4HDj2qBQqTuizADx9

Verified by manufacturer 3 months ago

Unperforated infill units

Knauf Ceiling Solutions Limited

Armstrong METAL T-Clip F square and rectangular tiles available in a variety of perforations.

Jump to:

+44 (0)191 518 8600 Website

Application

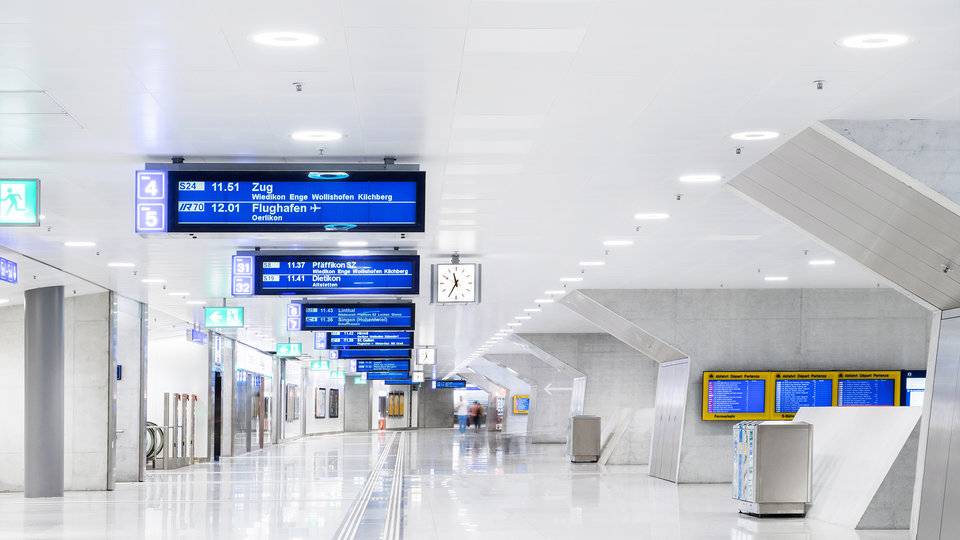

Used in a variety of ceiling areas from small service rooms to large commercial office buildings and major transportation terminals.

Description

Armstrong METAL T-Clip F square and rectangular tiles available in a variety of perforations, installed on the C-Channel and Sprint-T suspensions system.

Features and benefits:

Concealed grid for a monolithic effect.
Ease of installation (alignment) and fully demountable.
Maintenance-friendly system.
Bevelled edge.
Integrated swing-down function.
Available with an optional lock function.
System height 83 mm.
Additional design options available as part of the Vario Design range.

Part of the METAL Clip-In range, other systems specified separately.

General information

Color	Grey White Black Brown Beige Other Show more
Finish	Painted
Material	Metal
Shape	Square Guidance for specification option: Infill units. Rectangle Guidance for specification option: Infill units. Other Guidance for specification option: Overall system.
Length	500 mm Guidance for specification option: Infill units. 600 mm Guidance for specification option: Infill units. 750 mm Guidance for specification option: Infill units. 1200 mm Guidance for specification option: Infill units. 1500 mm Guidance for specification option: Infill units. Bespoke Guidance for specification option: Overall system. Show more
Width	300 mm Guidance for specification option: Infill units, 500 mm Guidance for specification option: Infill units, 600 mm Guidance for specification option: Infill units, Bespoke Guidance for specification option: Overall system.
Height	83 mm
Warranty description	- Manufacturer guidance Individual product and approved KCS System installed

Uniclass	Ss_30_25_22_51 Modular suspended ceiling systemsPrimary
CAWS	K40/115 Unit/ modular suspended ceiling system K40/10 Unit/ modular suspended ceilings K40/105 Suspended ceiling system

Specification data - Modular suspended ceiling systems

Classification data
Ceiling support	C-Channel and Spring-T. Guidance for specification option: See manufacturer's technical literature for full suspension details and consult manufacturer for further information.
Support fasteners	Manufacturer's standard.
Ceiling units	Clip-in, 500 x 500 mm, 5 x 5 bevelled edge. Clip-in, 600 x 300 mm, 5 x 5 bevelled edge. Clip-in, 600 x 600 mm, 5 x 5 bevelled edge. Clip-in, 675 x 675 mm, 5 x 5 bevelled edge. Clip-in, 750 x 750 mm, 5 x 5 bevelled edge. Clip-in, 1200 x 300 mm, 5 x 5 bevelled edge. Clip-in, 1200 x 600 mm, 5 x 5 bevelled edge. Clip-in, 1500 x 300 mm, 5 x 5 bevelled edge. Manufacturer guidance See also Perforations (variants) and Colour for related options.
Barriers in ceiling void	-
Acoustic barriers	Acoustic fleece. Not required.
Samples required	Product samples Demountable suspended ceiling prototypes Not required Manufacturer guidance Consult manufacturer for options.
Weight	4.6–5.5 kg/m². Manufacturer guidance Weight varies depending on the edge detail and acoustic infill.
Light reflectance	85%. Manufacturer guidance Applicable for RAL 9010 only; consult manufacturer for details of other colours.
Constant humidity resistance	90% RH.
Acoustic performance	To EN ISO 10140-2, Rw 19 dB.
Third-party certification	Indoor Air Quality Class A+. Cradle to Cradle Certified Silver. Manufacturer guidance Cradle to Cradle certification applies to RAL 9010 only.
Reaction to fire	To EN 13501, Euroclass A1. Manufacturer guidance Applicable for RAL 9010 only; consult manufacturer for details of other colours.
Colour	RAL 9010 White. Guidance for specification option: Standard. RAL 9003. RAL 9005. RAL 9006. RAL 9007. RAL 9016. Global White. Wood effect, Ash. Wood effect, Natural Bamboo. Wood effect, Caramel Bamboo. Wood effect, Maple. Wood effect, Oak. Wood effect, American Cherry. Wood effect, American Walnut. Manufacturer guidance Infill units only.
Perforations	Unperforated.
Type	Solid.
Materials	Infill units: post-coated, 0.5–0.6 mm galvanized steel.
Perimeter trims	Not required. RA 1 Trim. Guidance for specification option: Consult manufacturers literature for more details. RA 2 Trim. Guidance for specification option: Consult manufacturers literature for more details. RA 3 Shadowline trim. Guidance for specification option: Consult manufacturers literature for more details. RA 4 F trim. Guidance for specification option: Consult manufacturers literature for more details. RA 5 F Shadowline trim. Guidance for specification option: Consult manufacturers literature for more details. RA 6 F Shadowline trim. Guidance for specification option: Consult manufacturers literature for more details. RA 9 F trim. Guidance for specification option: Consult manufacturers literature for more details. RA 1 S trim. Guidance for specification option: Consult manufacturers literature for more details. Ra 3 S Shadowline trim. Guidance for specification option: Consult manufacturers literature for more details.
Bulkhead	Not required. Type 1B, 200 mm. Guidance for specification option: Consult manufacturers literature for more information. Type 1B, 300 mm. Guidance for specification option: Consult manufacturers literature for more information. Type 1B, 400 mm. Guidance for specification option: Consult manufacturers literature for more information. Type 1B, 600 mm. Guidance for specification option: Consult manufacturers literature for more information. Type 2A, 200 mm Guidance for specification option: Consult manufacturers literature for more information. Type 2A, 300 mm. Guidance for specification option: Consult manufacturers literature for more information. Type 2A, 400 mm. Guidance for specification option: Consult manufacturers literature for more information. Type 2A, 750 mm. Guidance for specification option: Consult manufacturers literature for more information. Type 2A, 1000 mm. Guidance for specification option: Consult manufacturers literature for more information.

Sustainability data

Contains Red List materials	No
Country of material origin	Europe
Country of product manufacture	Europe
Material	Metal
Recyclability	95% Manufacturer guidance Please refer to EPD
Recycled content As defined in clause 7.8 of BS EN ISO 14021	14 %
