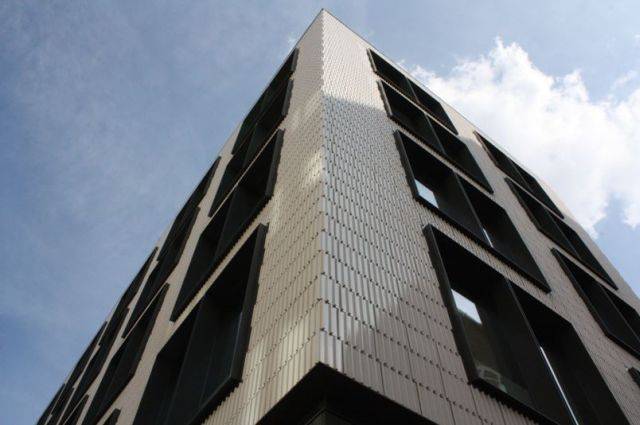

Argeton Terracotta Rainscreen Cladding System

Type:

Drained and back ventilated.

Rainscreen panels:

- Dimensions:

• Height: 150–500 mm in 12.5 mm increments.

• Length: 150–1500 mm to suit individual project.

• Thickness: 30 mm.

Joints:

• Vertical joints: 4/ 8 mm.

• Horizontal joints: 12 mm.

- Joint profiles:

• Drainage profile system providing 4 or 8 mm panel joints.

• Spring profile.

Framing system:

- Horizontal rail support:

• Manufactured from aluminium grade 6063 T6.

• Horizontal rail: 55/ 25.

• Top clip (h x w x d): 40 x 20 x 34 mm overall.

• Intermediate clip (h x w x d): 39 x 20 x 31 mm overall.

• Lower clip (h x w x d): 48 x 20 x 31 mm overall.

- Vertical rail support:

• Manufactured from aluminium grade 6063 T6.

• T-section (w x d): 120 x 45 mm overall.

• Top hat section (w x d): 120 x 30 mm overall.

• Top clip (h x w x d): 45 x 20 x 22.5 mm overall.

• Intermediate clip (h x w x d): 63.5 x 20 x 22.5 mm overall.

• Lower clip (h x w x d): 42.5 x 20 x 22.5 mm overall.

Colour:

• 26 natural colours available - contact manufacturer for details.

• Engobes and glazes to custom colours available.
