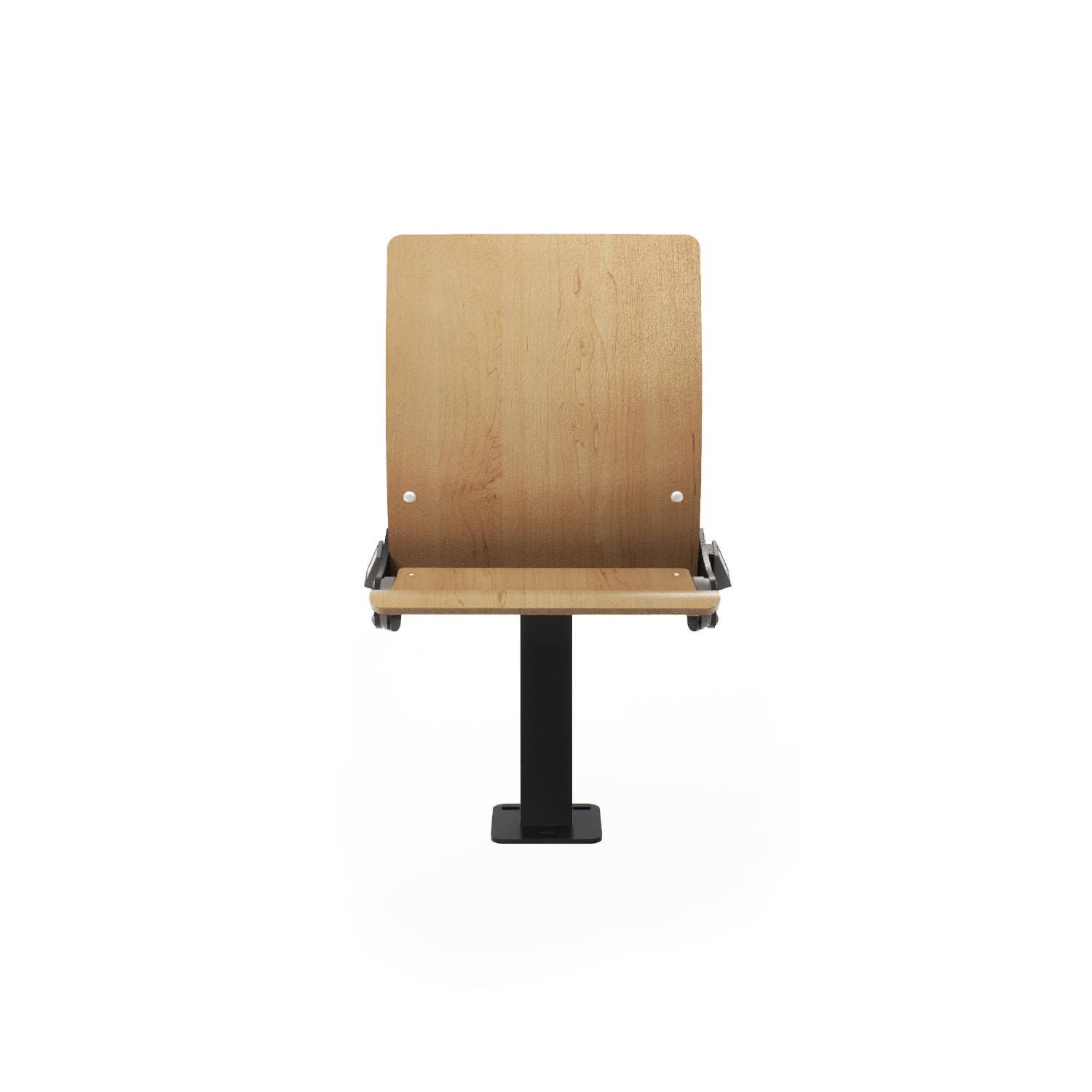

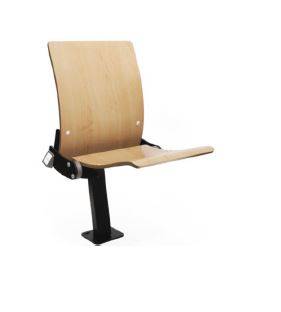

Ferco's ARC Wood seat is a low-maintenance tip-up seat which is perfect for auditorium or education venues. With optional sound dampening, the ARC Wood enhances audience experience in any layout.

Jump to:
+44 (0)1743 761244 www.fercoseating.com

Application

Working best in auditorium & education settings, the ARC Wood fits multiple room and chair layouts

Description

The ARC Wood Auditorium Seat is an ergonomically designed modern tip up seat which lends itself equally to either contemporary or classic projects. The ARC Wood offers a tactile aesthetic with double walled wooden shells and optional sound dampening perforations ensuring the best possible auditorium aesthetics.


It is available with upholstery options amongst others and can accommodate Ferco's Wrimatic™ A3 writing tablet.


Features and benefits:


  • Ergonomic design for maximum comfort
  • High back rest option option
  • Shared or individual armrests
  • Compatible with Wrimatic™ writing tablet
  • Contemporary materials and colours
  • Virtually maintenance free
  • Variety of finishing options including desking
  • Floor, beam or riser mounted
  • Flexible layouts including radial
  • Double stitching
  • No finger traps
  • Strong silent tip up mechanism


Options:


• Padded back and seat.

• ARC cup holder

• ARC MULTI 2010 armrest

• ARC Wrimatic

• ARC Wrimatic left end armrest

• Row lettering on end cap

• Riser mounted

General information

Color

Consult manufacturer for further details

-

Material

Wood

Height

890 mm

WarrantyDescription

Five year

Uniclass

Pr_40_30_29_72 Retractable seatsPrimary

CAWS

N10/172 Retractable/ demountable seating system

N10/25 Chairs

Specification data - Retractable seats Enhanced data

Fire performance

Flammability compliance with BS 5852 section 3 ignition source 5.

Form

Floor-fixed.

Seats and backs

-

Material

  • UV Inhibitors are added at a rate to ensure no significant colour or plastic deterioration for a period of five years.
  • Seat and Back is free of fasteners for upholstery pads.
  • Seat pad is constructed of injection molded polypropylene inner with molded polyurethane foam cushion and upholstered in vinyl.
  • Back pad is constructed of injection molded polypropylene inner (typical wall thickness 3.5 mm) with a 30 mm polyurethane foam covering and upholstered in vinyl.
  • Beam mounted tip-up seat with ergonomically design back and seat

13 mm thick wooden backrest and seat.

Insert requirements, refer to Ferco standard wood chart for details.

Finish

Epoxy.

Galvanized.

Frames

-

Material

All metal parts exposed shall be stripped and cleaned with iron phosphate, hot water rinsed and then chromic acid rinsed.

Finish

All metal parts are coated with a galvanized finish or epoxy finish of at least 60 microns for indoor use.

-

Integral accessories

Cup holder.

Multi 2010 armrest.

Rear mounted.

Row lettering on end cap.

Seat Numbering.

Wrimatic™ A3 writing tablet.

Wrimatic™ left end armrest.

Depth

Seat Depth Close: 490 mm. Seat Depth Open: 640 mm.

Structure

Horizontal beam structure of 60 x 40 x 3 mm thick. 76 x 38 x 2.3 mm thick rectangle hollow section, support by 8 mm thick foot plate. BS 3692 Specification for ISO metric precision hexagon bolts, screws and nuts. Metric Units. BS EN 12727: 2000 Specification for strength and durability.

Backrest height

890 mm.

Environmental information

Contains Red List materials

No

Country of material origin

Malaysia

Country of product manufacture

Malaysia

Recyclability

Component parts are fully recyclable
