Arborguy Root Ball Guying

Description

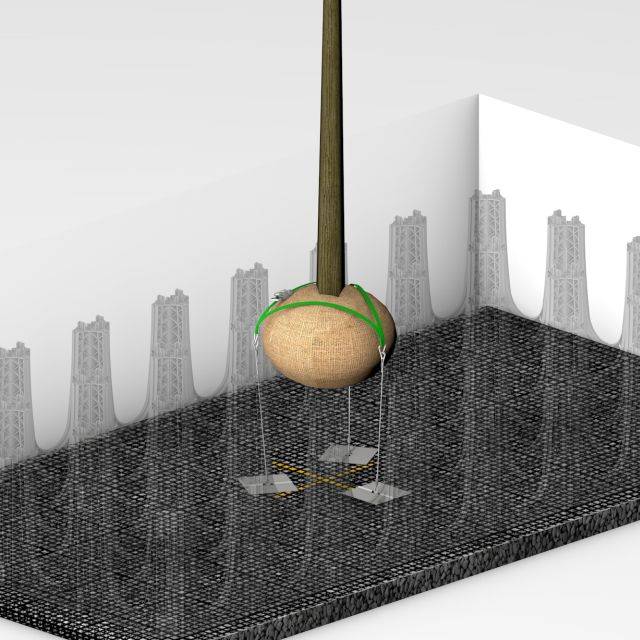

Ground anchors and Arborguy ratchet strap for going over the rootball (no wires or cables make contact with the root ball).

Features and benefits:

  • Suitable for large root-balled trees in the urban and rural environment.
  • Easy to apply, inexpensive and invisible.
  • Can be easily re-tensioned at a later date if required.
  • Strapping will not cut the root ball so no mats or timber required.
  • Ground anchors manufactured from very high strength composite.
  • ArborPlate versions incorporate unique deadman plate system.

General information

Uniclass 2015

Pr_45_63_64_72 Rootball securing framesPrimary

CAWS

Q31/512 Tree pit irrigation and ventilation accessories

Specification data - Rootball securing frames

Product Reference

Arborguy Root Ball Guying

Type

SASMCB

Medium anchor system with drive in composite anchors for trees up to 250 mm girth.

SASLCB

Large anchor system with drive in composite anchors for trees up to 450 mm girth.

SASAP06A

Large ArborPlate system for use with RootSpace 600 one cell deep for trees up to 450 mm girth.

SASAP12A

Large ArborPlate system for use with RootSpace 600 two cell deep for trees up to 450 mm girth.
