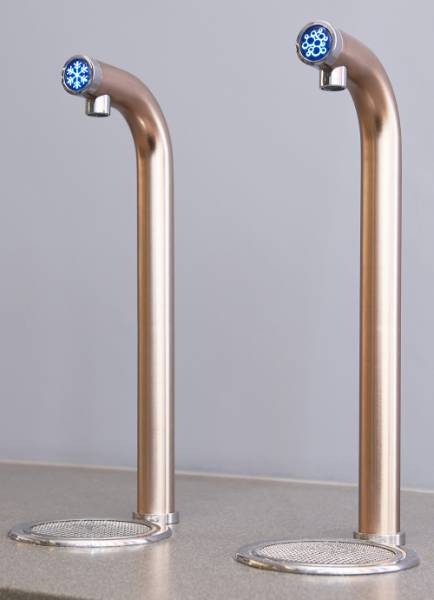

Chilled water tap.
Suitable for workplaces and offices.
A multi-function water system that can dispense chilled water.
Features and benefits:
ColorAvailable in any RAL colour. | - |
Height | 685 mm |
Length | 575 mm |
Width | 565 mm |
Size | 685 x 565 x 575 mm H x W x D. |
WarrantyDescription | One year 12 months on parts and labour. |
Uniclass | |
CAWS | N12/380 Sinks, taps, traps and wastes N11/350 Sinks, taps, traps and wastes N11/30 Sinks, taps, traps and wastes N12/380 Sinks, taps, traps and wastes |
Third party certification | ISO 14001, WRAS approved system components: 2010318, 1806330, 1906330, 1712074. |
Water | Chilled. |
Duty | - |
Tank capacity | Up to 45 litres. |
Cold cups | 180 per hour at 250 ml. |
Dimensions | 685 x 565 x 575 mm. |
Electrical connection | - |
Power | 1 No. 50 Hz twin switched 13 A power socket. |
Voltage | 220–240 V. |
Water inlet | 1 No. potable cold mains water supply terminating in a 15 mm Ballofix isolation valve. |
Safety features | Base cabinet leak detector. |
Components | Watercooler, tap. |
Water pressure | 2.5 Bar (minimum). |
Flowrate | 300 L/h. |
Ventilation(cabinet) | Required. Please visit www.aqualibra.com/resources for all ventilation options and insert requirements. |
Colour/ FinishAvailable in any RAL colour; insert requirements. | - |
NBS BIM object standard
This BIM object has been authored to meet the requirements of the NBS BIM object standard.
Find out more about the NBS BIM object standard.
