Antro - Clay Facing Brick
Verified by manufacturer 2 months ago
WF
WF
QA Certificate
Certificate type
ISO 14001 Environmental Management Systems
Certificate type

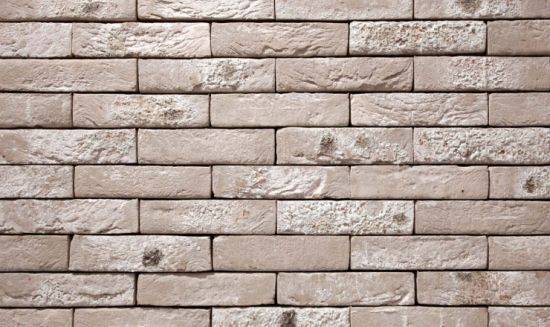

A light grey brick with intense white shades.
Description
A mix of different kinds of clay forms the basis for this facing brick. Löss, the local loam of Aeolian origin dating from the Ice Age, is the most important base material. This löss mainly consists of a silt-like fraction, suited for the manufacturing of hand form bricks. By using specific sand types for surface covering, the desired colour is achieved.
Features and benefits:
- Hand formed.
- Multi-shade.
- Five joint styles available.
For more information about Vandersanden and to discover our complete range of specifier solutions, please visit www.vandersanden.com.
Be informed and inspired by the potential of brick to transform your projects. Register for our specifier Inspiration Guide here
Over 1.1 million possibilities!
Create, download and visualise beautiful brick facades with our New Texture Generator here
Stay up to date and discover new trends, techniques, and innovations with our RIBA CPDs here
General information
Color | Grey White |
Finish | Sanded Coated |
Material | Clay |
Shape | Rectangle |
Length | 211 mm 213 mm |
Width | 100 mm 102.5 mm |
Height | 50 mm 65 mm |
Uniclass | |
CAWS | F10/110 Clay facing brickwork F10/5 Facing brickwork |
Product range |
Specification data - Clay bricks
Standard | To BS EN 771-1. |
Brick description | Facing brick. |
Appearance | Light grey with intense white shades, with a sanded-coated and grained structure. |
Work size (length x width x height) | 210 x 100 x 50 mm. |
Tolerances | - |
Mean value | T2. |
Range | R1. |
Compressive strength | - |
Mean compressive strength (minimum) | ≥20 N/mm².Tested to the bed face. |
CategoryManufacturer's standard. | - |
Durability designation | F2. |
Density | - |
Gross dry | 1610 kg/m³. |
Net dry | 1720 kg/m³. |
Tolerance | D1. |
Water absorption | ≤15% m/md. |
Configuration | Frogged. |
Recycled contentManufacturer's standard. | - |
Thermal conductivity | ≤0.55 W/m·K.Lambda 50/50. |
Thermal resistance | Manufacturer's standard |
Water vapour permeability | 5/10 µ. |
Bond strength | General 0.15 N/mm²; thin layer: 30 N/mm². |
Reaction to fire | Class A1. |
Active soluble salts | S2. |
Jointing | Beige. Dark grey. Grey. Joint free. White. |
Environmental information
Country of material originEurope. | - |
Country of product manufacture | Belgium |
Third party certifications
ISO 14001 Environmental Management Systems
ISO14001 certificate
Additional certifications:
- CE marked
