Description

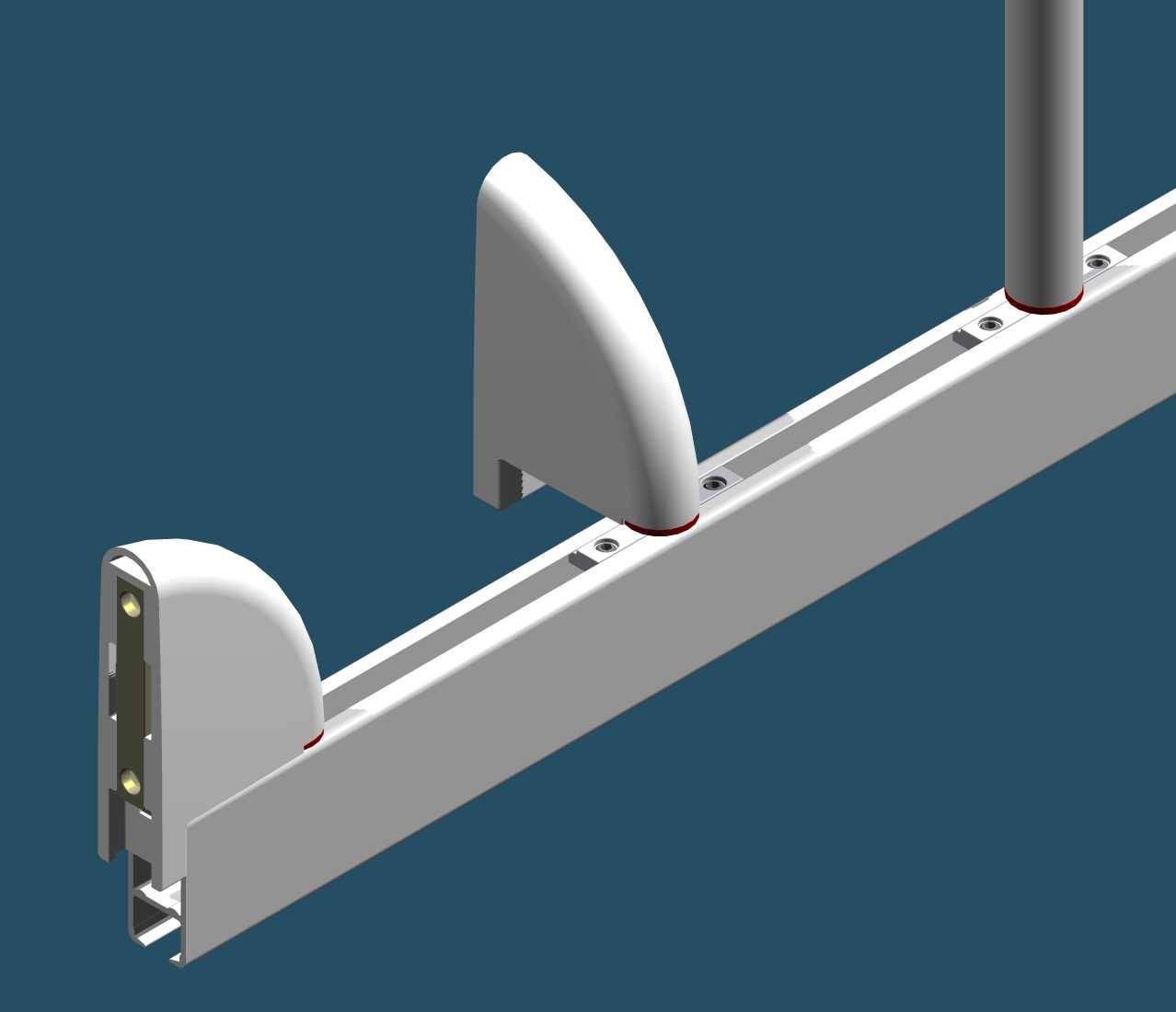

Anti-ligature Load Release System is designed for use with G-Rail 4100 and 5100. This patented system meets health care requirements for anti-ligature privacy rails. The system is designed to activate at an applied load of 35 kg + 2 kg.

The system allows the rail to release in a controlled manner when incorporated with privacy rails, shower rail or garment hanging rail. The Load Release System allows for normal rail use, but will separate at the load release suspension points when the calibrated control load is reached.

General information

Uniclass 2015

Pr_40_30_20_96 Window curtain supportsPrimary

CAWS

N10/230 Curtain supports

Specification data - Window curtain supports

Product Reference

Anti-ligature Load Release System

Finish/ Colour

Satin silver anodized

White RAL 9010 powder coated

Fixing

Ref 4154-LRS

For use with G-Rail 4100.

Ref 4064-LRS

For use with G-Rail 4100.

Ref 4155-LRS

For use with G-Rail 4100.

Ref 4149-LRS

For use with G-Rail 4100.

Ref 5154-LRS

For use with G-Rail 5100.

Ref 5064-LRS

For use with G-Rail 5100.

Ref 5155-LRS

For use with G-Rail 5100.

Ref 5149-LRS

For use with G-Rail 5100.

Product Options

Fixing:

4100 rail:

  • Ref 4154-LRS: Ceiling fixing with mini suspension hanger.
  • Ref 4155-LRS: Ceiling fixing with suspension hanger.
  • Ref 4064-LRS: Ceiling fixing with strut hanger.
  • Ref 4149-LRS: Wall fixing with wall support.

5100 rail:

  • Ref 5154-LRS: Ceiling fixing with mini suspension hanger.
  • Ref 5155-LRS: Ceiling fixing with suspension hanger.
  • Ref 5064-LRS: Ceiling fixing with strut hanger.
  • Ref 5149-LRS: Wall fixing with wall support.
