Anicius - Clay Facing Brick

Verified by manufacturer 8 days ago

WF

Vandersanden Brick Variant:

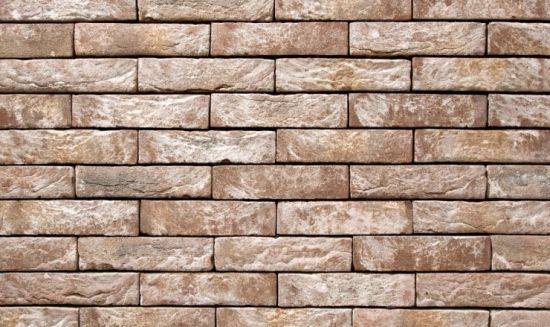

A dark brown brick with shades of white and light brown.

Jump to:
+44 (0) 1954 268075 Website

Application

Brickwork applications.

Description

The raw materials are excavated in Weichsel loam layers, the local loam of Aeolian origin dating from the Ice Age. This löss mainly consists of a silt-like fraction, suited for the manufacturing of hand form bricks. By using specific sand types for surface covering, the desired colour is achieved.


Features and benefits:

  • Hand formed.
  • Multi-shade.
  • Five joint styles available.

General information

Color

Brown

Guidance for specification option:

Base colour

Grey

White

Yellow

Finish

Sandfaced

Guidance for specification option:

Sanded-coated.

Material

Clay

Shape

Rectangle

Length

214 mm

211 mm

Width

101 mm

100 mm

Height

50 mm

65 mm

Material

Clay

Uniclass

Pr_20_93_52_15 Clay bricksPrimary

CAWS

F10/110 Clay facing brickwork

F10/5 Facing brickwork

Product range

Bricks

Specification data - Clay bricks

Standard

To BS EN 771-1.

Brick description

Facing brick.

Appearance

Dark brown brick with shades of white and light brown, with a sanded-coated and grained structure.

Work size (length x width x height)

211 x 100 x 50 mm.

Tolerances

-

Mean value

T2.

Range

R1.

Compressive strength

-

Mean compressive strength (minimum)

≥20 N/mm².

Guidance for specification option:

Tested to the bed face.

Category

-

Manufacturer guidance

Manufacturer's standard

Durability designation

F2.

Density

-

Gross dry

1630 kg/m³.

Net dry

1740 kg/m³.

Tolerance

D1.

Water absorption

≤14% m/md.

Configuration

Frogged.

Thermal conductivity

≤0.60 W/m·K.

Guidance for specification option:

– Lambda 50/50

Water vapour permeability

5/10 µ.

Bond strength

0.15 N/mm² (bond strength general); 0.30 N/mm² (bond strength thin layer).

Reaction to fire

Class A1 to BS EN 13501-1.

Active soluble salts

S2.

Jointing

Beige.

Black/ Anthracite.

Grey.

Joint free.

White.

Sustainability data

Country of material origin

-

Manufacturer guidance

Europe.

Country of product manufacture

Belgium

Material

Clay

Recyclability

Recyclable
