Ancon MDC Nexus Brick Faced Support System

Name: Ancon MDC Nexus Brick Faced Support System
Brand: Leviat
SKU: 5nHjvJRpE7ESWCpJiUwekH

Verified by manufacturer 1 day ago

Leviat

Product certifications:

BBA Agrément Certificate
Certificate type
BBA Agrément Certificate
Certificate type
EPD
Certificate type

The NEXUS XI range of mechanically-fixed brick-faced soffit systems comprises both standard and bespoke solutions to enable the creation of deep reveals and soffits.

Jump to:

+44 (0) 114 275 5224 Website

Application

Designed and prefabricated to fit any size or shape soffit
Any brick type and bond pattern can be accommodated
Suitable for buildings over 11m high
BBA Certified for any building height

NEXUS XI provides an innovative, mechanically fixed suspended brickwork soffit and lintel solution and carries a Reaction to Fire classification of A2-s-1,d0 as stated in the BBA certificate,

meaning it can be specified and installed with confidence on high-rise buildings over 11 metres, in compliance with building regulations in all UK home nations.

The system comprises a stainless steel soffit tray or lintel with an A2 rated chemical bond to reduce vibrational forces between the brick slip and stainless steel.

Description

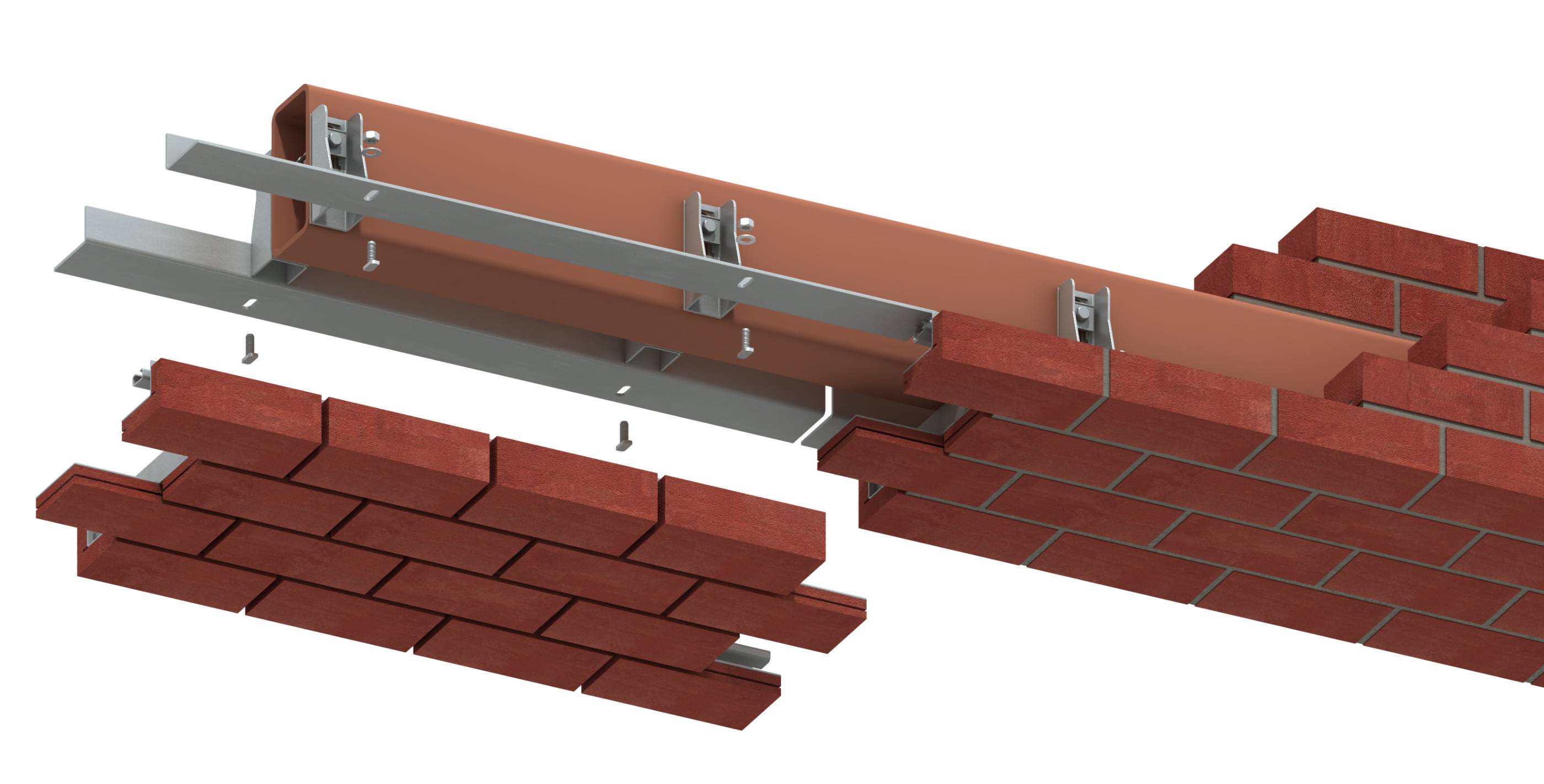

Brick faced steel unit supplied by Ibstock used with Ancon MDC brick support angle to create brick faced soffits. The advanced design units are lightweight, easy to install and can be simply aligned using a unique two part system to create a flawless joint with the main brickwork façade, no unsightly supporting steelwork left exposed.

The system combines a high integrity stainless steel brickwork support system with prefabricated brick faced units which can be simply lifted and bolted into position by hand. Prefabricated brick faced stainless steel lintels are also available.

Features and benefits:

Two part system allows full adjustment for perfect alignment.
Lighter and easier to handle than precast concrete systems.
Designed and fabricated to fit any size or shape soffit and is easily bolted into position.
Any brick type and bond pattern can be accommodated.
Increase your project’s pre-manufactured value with this offsite solution

General information

Color	Silver
Finish	Stainless steel
Material	Stainless steel
Shape	Other
Length	Bespoke
Width	Bespoke
Height	Bespoke

Uniclass	Pr_20_85_03_50 Masonry angle supportsPrimary
CAWS	F30/260 Angle supports F30/265 Support systems

Product range	Masonry Support

Specification data - Masonry angle supports

Classification data
Material	High grade stainless steel, CE marked.
Components, arrangement and dimensions	Brick slips: 25 mm thick and manufactured in accordance with BS 4729, BS EN 771-1 and CE marked. Adhesive: Metolux Metofix 3-1 epoxy adhesive.
Product Reference	Ancon MDC Nexus Brick Faced Support System
Type	Guidance for specification option: Ancon MDC systems are tailored to suit each project, based on the cavity size at the support and the masonry load to be carried. Manufacturer guidance Type: Ancon will design an economical configuration of channel, bracket and angle. Most brick and masonry types, bond patterns and styles can be accommodated. Consult manufacturer for details and insert requirements.
