Ancon MDC Nexus Brick Faced Support System

Name: Ancon MDC Nexus Brick Faced Support System
Brand: Leviat
SKU: 5nHjvJRpE7ESWCpJiUwekH

Verified by manufacturer 6 months ago

Leviat

Third party certifications:

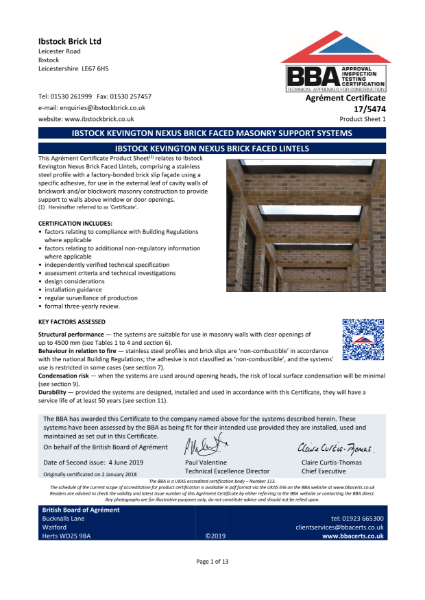

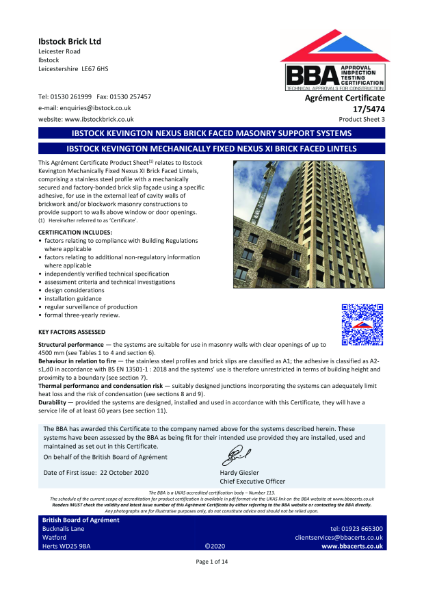

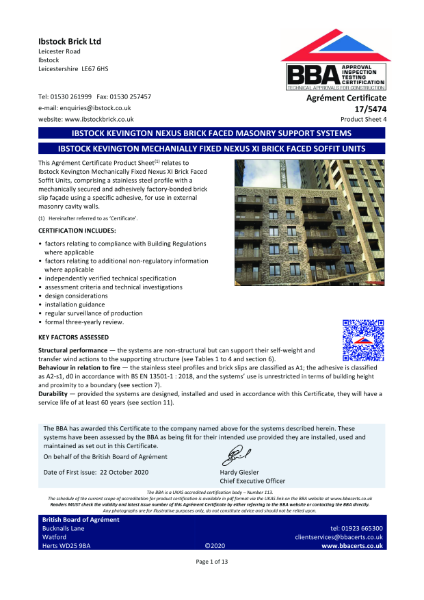

BBA Agrément Certificate
Certificate type

Brick-faced steel unit to create soffits with perfect alignment.

Jump to:

+44 (0) 114 275 5224 Website

Application

Suitable for use to create feature brick-faced soffits.

Description

Brick faced steel unit supplied by Ibstock used with Ancon MDC brick support angle to create brick faced soffits. The advanced design units are lightweight, easy to install and can be simply aligned using a unique two part system to create a flawless joint with the main brickwork façade, no unsightly supporting steelwork left exposed.

The system combines a high integrity stainless steel brickwork support system with prefabricated brick faced units which can be simply lifted and bolted into position by hand. Prefabricated brick faced stainless steel lintels are also available.

Features and benefits:

Two part system allows full adjustment for perfect alignment.
Lighter and easier to handle than precast concrete systems.
Designed and fabricated to fit any size or shape soffit and is easily bolted into position.
Any brick type and bond pattern can be accommodated.

General information

Color	Silver
Material	Stainless steel

Uniclass	Pr_20_85_03_50 Masonry angle supportsPrimary
CAWS	F30/260 Angle supports F30/265 Support system

Product range	Masonry Support

Specification data - Masonry angle supports

Material	High grade stainless steel, CE marked.
Components, arrangement and dimensions	Brick slips: 25 mm thick and manufactured in accordance with BS 4729, BS EN 771-1 and CE marked. Adhesive: Metolux Metofix 3-1 epoxy adhesive.

Product Reference	Ancon MDC Nexus Brick Faced Support System
Type	Guidance for specification option: Ancon MDC systems are tailored to suit each project, based on the cavity size at the support and the masonry load to be carried. Manufacturer guidance Type: Ancon will design an economical configuration of channel, bracket and angle. Most brick and masonry types, bond patterns and styles can be accommodated. Consult manufacturer for details and insert requirements.
