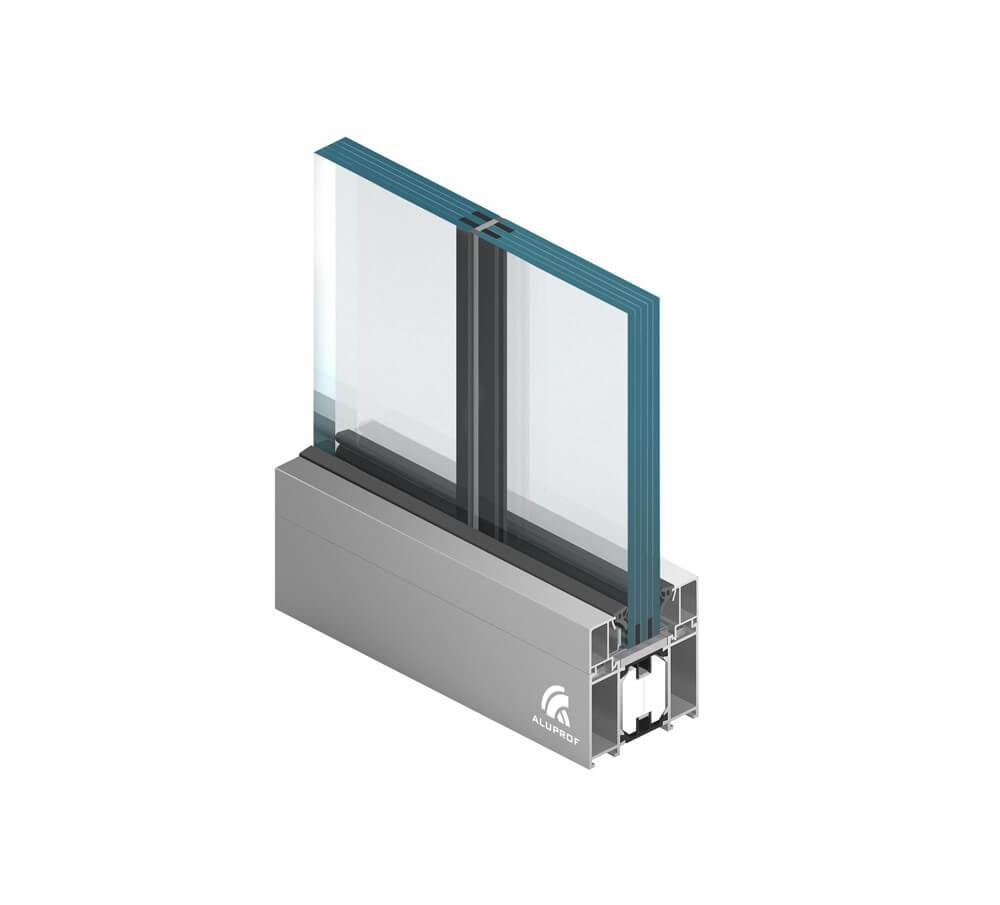

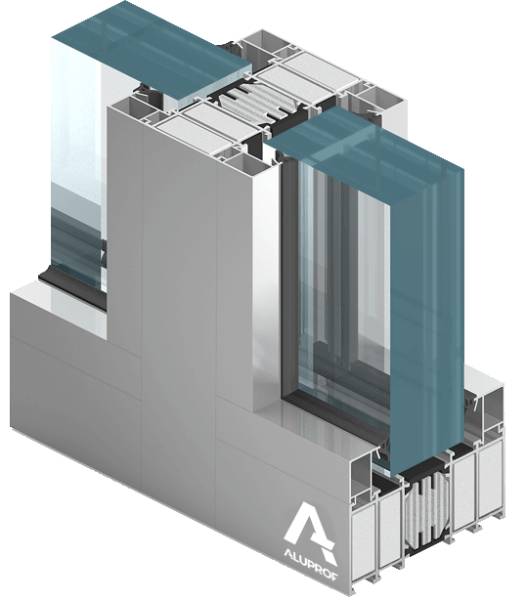

Aluprof MB-78EI - Fire Resistant Glazing System

Verified by manufacturer 8 months ago

Aluprof MB-78 EI15 external framed system - 15 minute integrity and insulation rated

Aluprof UK Variant:
Third party certifications:
  • ISO 9001 Quality Management

    Certificate type

  • Qualicoat approval

    Qualicoat approval

    Certificate type

  • EPD

    EPD

    Certificate type

Up to EI90 fire resistant aluminium fixed screens.

Jump to:
+44 (0)161 9414005 Website

Application

Fire-rated partitions from EI15 to EI90 fire resistance:

  • Internal
  • External

For buildings or all types:

  • New build
  • Refurbishment
  • Low-rise buildings
  • High-rise buildings
  • Commercial
  • Public sector
  • Industrial
  • Residential
  • Retail
  • Leisure
  • Hospitality

Description

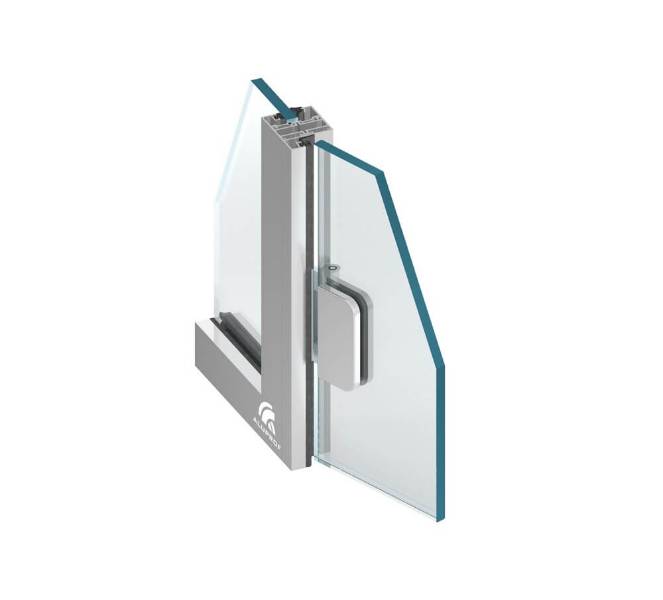

Fire-rated aluminium fixed screens, available in EI15 to EI90 variants in accordance with EN 13501-2. Also available with glass-to-glass joints in the screens up to EI60.


Performance:

  • Air permeability to PN-EN 12207:2001: Class 2.
  • Watertightness to PN-EN 12208:2001: Class 5A.
  • Thermal insulation (Uf) from 1.6 W/m²K.
  • Acoustic insulation (Rw) to 41 dB.

General information

Finish

Anodized

Powder-coated

Guidance for specification option:

Polyester powder-coated.

Material

Aluminium

Glass

Shape

Other

Square

Rectangle

Circle

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

25 year

Guidance for specification option:

Polyester powder-coating finish.

Ten year

Guidance for specification option:

Anodized finish.

Manufacturer guidance

Consult manufacturer for details of marine and industrial environments.

Uniclass

Ss_25_12_65_65 Panel partition systemsPrimary
Pr_25_71_57_60 Partition panels

CAWS

L10/56 Glazed screen system

L10/550 Glazed metal screens

Specification data - Panel partition systems

System performance

EI15.

EI30.

Guidance for specification option:

Up to 4800 mm screen height.

EI60.

Guidance for specification option:

Up to 5160 mm screen height.

EI90.

Manufacturer guidance

Maximum height varies based on performance required.

Panel partitioning

Partition panels.

Fasteners

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

Joint treatment

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

Joint finish

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

System accessories

-

Manufacturer guidance

Consult manufacturer for options and insert requirements.

System completion

The MB-78 EI system specified above shall be fabricated and installed by Aluprof approved companies only, in complete accordance with the information and guidance distributed by Aluprof UK Ltd.

Screen height

Guidance for specification option:

Insert requirements.

  • Up to 4180 mm for EI30 systems.
  • Up to 5160 mm for EI60 systems.
  • Consult manufacturer for options for EI15/ EI90 systems.

Sound insulation rating

Guidance for specification option:

Consult manufacturer for options and insert requirements; up to 41 dB Rw.

Thermal performance

Guidance for specification option:

From 1.6 W/m²K; consult manufacturer for details and insert requirements.

Glazing details

Guidance for specification option:

Insert requirements; Insulating glass units (IGUs) up to 65 mm thick.

Incorporated features

Guidance for specification option:

Consult manufacturer for options and insert requirements.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Recyclability

Cradle to Cradle

Third party certifications

Third party certifications

ISO 9001 Quality Management

ISO 9001 Quality Management

Aluprof ISO 9001 Certificate

Qualicoat approval

Qualicoat approval

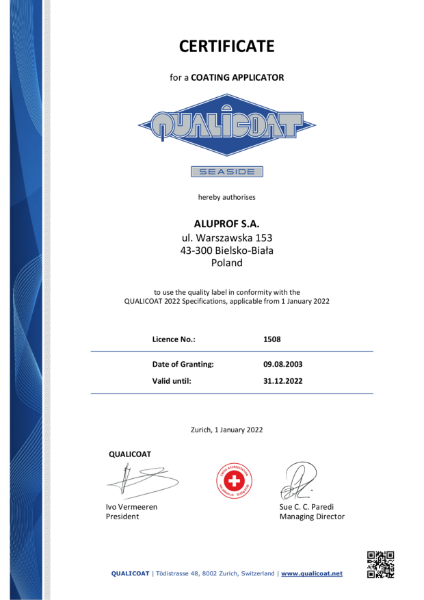

Aluprof Qualicoat Certificate 2022

EPD

EPD

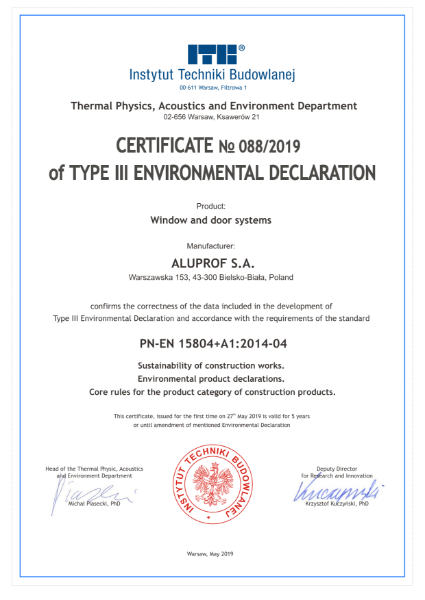

Aluprof Environmental Product Declaration to EN 15804 - Window & Door Systems

Literature

Modern Partitioning Systems

Modern Partitioning Systems

MB-78 EI Fire rated glazing system - Product information

MB-78 EI Fire rated glazing system - Product information

Fire Rated & Smoke Exhaust Glazed Systems

Fire Rated & Smoke Exhaust Glazed Systems

Company Brochure

Company Brochure

Aluprof Systems Overview

Aluprof Systems Overview

Architectural Product Guide

Architectural Product Guide
