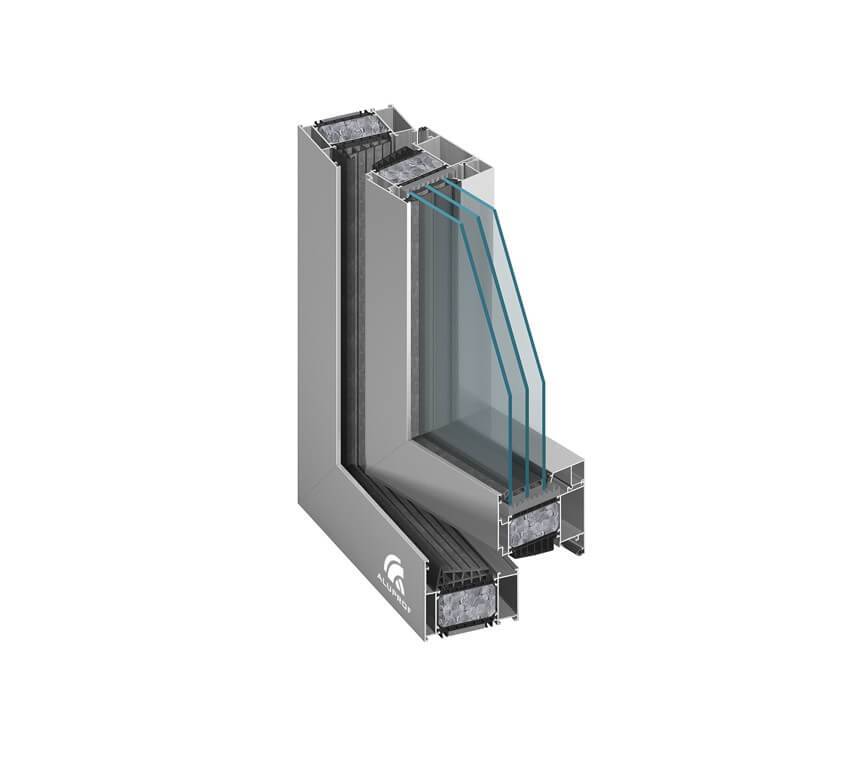

Aluprof MB-104 - Window System (Passivhaus Certified)

Verified by manufacturer 29 days ago

Aluprof MB-104 SI - Passiv Haus Certified - inward opening high insulation framed system

Aluprof UK Variant:
Third party certifications:
  • EPD

    EPD

    Certificate type

  • ISO 14001 Environmental Management Systems

    Certificate type

  • ISO 9001 Quality Management

    Certificate type

  • Passivhaus

    Passivhaus

    Certificate type

  • Qualicoat approval

    Qualicoat approval

    Certificate type

  • Cradle to Cradle Certified

    Cradle to Cradle Certified

    Certificate type

Passive House Certified, high performance thermally broken aluminium window system.

Jump to:
+44 (0)161 9414005 Website

Application

  • Passivhaus certified buildings.
  • New build.
  • Refurbishment.
  • Low-rise buildings.
  • High-rise buildings.
  • Commercial.
  • Hospitality.
  • Leisure.
  • Public sector.
  • Industrial.
  • Residential.
  • Retail.

Description

Thanks to its excellent thermal performances, the thermally broken window system MB-104 meets all the requirements for the components used in passive buildings, confirmed by certificates granted by the Passive House Institute PHI Darmstadt.


This system is intended for external elements such as various types of windows, doors, shop fronts and spatial structures, which are highly resistant and characterized by excellent water and air tightness, and thermal and acoustic insulation performance.


Features and benefits:

  • Windows certified by the Passive House Institute PHI Darmstadt. ( MB-104 SI to phC, MB-104 AERO to phB)
  • Excellent weather tightness and thermal insulation performance.
  • Wide range of glazing, up to 81 mm thick allowing double and triple glazing unit options.
  • 'Euro' grooves allow the fitting of most of the available hardware, both for aluminium and PVC windows.
  • Can use visible or concealed hinges.
  • Anti-burglary windows up to RC3 class.
  • MB-104 SI and MB-104 AERO doors are also available, specified separately.


Performance:

  • Air permeability to EN 12207:2001: Upto class 4.
  • Wind load resistance to EN 12210:2001: Upto class CE3300/BE3300.
  • Water tightness to EN 12208:2001: Upto class E3600.
  • Acoustic test to EN ISO 717-1: 46 dB Rw (-2;-3)
  • Thermal insulation performance to meet the latest Part L requirements: Uw from 0.45 W/m2k (AERO) or 0.47 W/m2k (SI)
  • Security to EN1627: Upto RC3

General information

Finish

Anodized

Guidance for specification option:

By Aluprof to Qualanod standard, 25 µm film thickness.

PPC

Guidance for specification option:

Polyester powder coated to Qualicoat or Qualideco standards (including 'seaside' standard).

Anodised

Powder-coated

Polyester Powder Coated

Material

Aluminium

Shape

Rectangle

Other

Square

Formless

Length

Bespoke

Width

Bespoke

Height

Bespoke

Warranty description

30 year

Guidance for specification option:

(up to). Polyester powder coating finish. Consult manufacturer for details of marine and industrial environments.

Ten year

Guidance for specification option:

Anodized finish.

Uniclass

Pr_30_59_98_02 Aluminium window unitsPrimary

CAWS

L10/25 Aluminium windows

L10/330 Aluminium windows

Specification data - Aluminium window units

Standard

Non-fire and/ or smoke rated windows to EN 14351-1 and BS 4873.

Third-party certification

PASSIV HAUS Institute, CE marked, Q-Mark, Qualicoat/ Qualanod/ Qualideco, ITB - EPD Certification.

Dimensions and configurations

Bottom hung (open in).

Side hung (open in).

Tilt & turn (open in).

Fixed light.

Manufacturer guidance

Maximum dimensions of opening vents: Height max = 2900 mm, width max = 1700 mm. Maximum weight of the sash = 160 kg.

Product performance

-

Weather performance

-

Air permeability

To EN 1026: 2001, EN 12207: 2001, up to class 4.

Watertightness

To BS EN 1027: 2001, EN 12208: 2001, up to class E3600.

Resistance to wind load

To BS EN 12211: 2001, EN 12210: 2001, up to class CE3300/ BE3300.

Durability

-

Operation and strength characteristics

Up to Class 4.

Safety

-

Security level

Standard.

RC2.

RC3.

Environmental

-

Acoustic performance rating

Up to 46 (-2,-3) dB Rw.

Thermal

-

Whole window U-value

From 0.59 W/m²K.

Frame

-

Profile

Aluprof K Range suitable for the project.

Guidance for specification option:

Consult manufacturer for details and insert requirements. 95 mm depth.

Finish as delivered

-

Coating

Anodized by Aluprof to Qualanod standard, 25 µm film thickness.

Polyester powder-coated by Aluprof to Qualicoat standard, 60 µm film thickness.

Polyester powder-coated by Aluprof to Qualicoat 'seaside' standard, 60 µm film thickness.

Polyester powder-coated by Aluprof to Qualideco standard, 60 µm film thickness.

Polyester powder-coated by Aluprof to Qualideco 'seaside' standard, 60 µm film thickness.

Bespoke.

Guidance for specification option:

Insert details of external and internal and coatings choices from the list above. Colours specified separately below.

Colour

RAL, Matt.

Guidance for specification option:

Polyester powder-coated coatings only; insert colour requirements.

RAL, Satin Gloss.

Guidance for specification option:

Polyester powder-coated coatings only; insert colour requirements.

RAL, High Gloss.

Guidance for specification option:

Polyester powder-coated coatings only; insert colour requirements.

RAL, Structure.

Guidance for specification option:

Polyester powder-coated coatings only; insert colour requirements.

RAL, imitation anodized.

Guidance for specification option:

Polyester powder-coated coatings only; insert colour requirements.

NCS.

Guidance for specification option:

Polyester powder-coated coatings only; insert colour requirements.

Special effects.

Guidance for specification option:

Polyester powder-coated coatings only; includes fine and coarse structure, metallic effect or diverse gloss. Consult manufacturer for details and insert requirements.

Decoral (wood grain effect).

Guidance for specification option:

Polyester powder-coated coatings only; insert colour requirements.

Natural silver.

Guidance for specification option:

Anodized only.

Coloured anodized to Aluprof 'C' range.

Guidance for specification option:

Anodized only; insert colour requirements.

Brushed silver anodized.

Heavy brushed silver anodized.

As External colour.

Film thickness (minimum)

60 µm (PPC) or 25 µm (Anodized).

Guidance for specification option:

Dependent on coating specified.

Ventilator

None.

Ventilators by others.

Glazing or infill

-

Standard

Relevant parts of BS EN 1279.

Requirements

Guidance for specification option:

Insert requirement, available 18–53.5 mm (opening); 9–44.5 mm (fixed).

Hardware

Silver.

White.

Brown.

Silver anodized.

RAL colour to match frame.

Guidance for specification option:

Specify if interior and exterior values differ.

Operation

-

Type

Fixed.

Manual.

Teleflex winding gear.

Electronic actuators.

Fixing features

Lug fix.

Direct fix.

Curtain wall adaptor.

Execution

See Installation below.

Environmental Product Declaration (EPD)

Cradle to Cradle.

Installation

The MB-104 window system specified above shall be fabricated and installed by Aluprof approved companies only, in complete accordance with the information and guidance distributed by Aluprof UK Ltd.

Sustainability data

Contains Red List materials

No

Country of product manufacture

United Kingdom

Guidance for specification option:

United Kingdom

Recyclability

-

Manufacturer guidance

Cradle to Cradle

Recycled content

As defined in clause 7.8 of BS EN ISO 14021

59.57 %

EPD

Third party certifications

EPD

EPD

Aluprof Environmental Product Declaration to EN 15804 - Window & Door Systems

ISO 14001 Environmental Management Systems

ISO 14001 Environmental Management Systems

Aluprof ISO 14001 Certificate

ISO 9001 Quality Management

ISO 9001 Quality Management

Aluprof ISO 9001 Certificate

Passivhaus

Passivhaus

Aluprof MB-104 AERO Passivhaus Certificate phB

Passivhaus

Passivhaus

Aluprof MB-104 SI Passivhaus Certificate phC

Qualicoat approval

Qualicoat approval

Aluprof Qualicoat Certificate 2022

Cradle to Cradle Certified

Cradle to Cradle Certified

Cradle to Cradle Certified™ - Bronze
