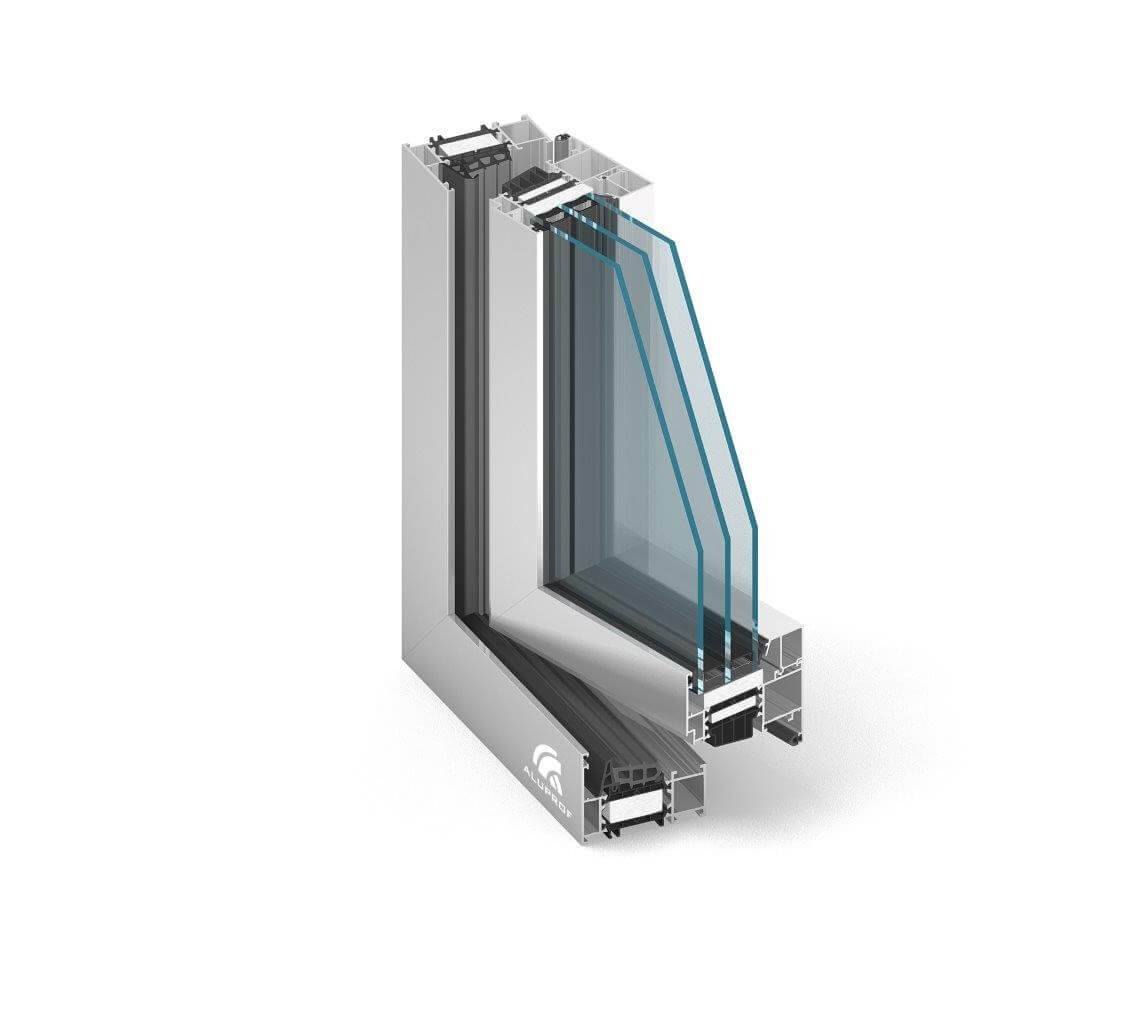

Aluprof MB-86 - Window System

Name: Aluprof MB-86 - Window System
Brand: Aluprof UK
SKU: 4SqiwEtw9oTeVG9H2dLVtE

Verified by manufacturer 6 months ago

MB-86 AERO

Aluprof UK

Third party certifications:

EPD
Certificate type
ISO 14001 Environmental Management Systems
Certificate type
ISO 9001 Quality Management
Certificate type
Qualicoat approval
Certificate type
Cradle to Cradle Certified
Certificate type
BM Trada
Certificate type
Secured By Design
Certificate type

High performance thermally broken aluminium window systems.

Jump to:

+44 (0)161 9414005 Website

Application

Windows for high performance requirements: thermal, acoustic, design sizes etc.

All building types:

New build projects.
Refurbishment projects.
Residential.
Commercial.
Public buildings etc.

Description

The MB-86 window and door series have been designed to offer high insulation properties.

Offered in four main variations:

MB-86 ST - Standard option.
MB-86 SI - Super insulated option.
MB-86 AERO - Ultimate insulation option.
MB-86 US - Concealed sash option.

In addition to the thermal variations, the MB-86 system also features an exceptional rate of profile inertia that allows for greater construction in size and weight capability over typical window systems.

Features and benefits:

Large selection of profiles available.
Opening vents are available up to 1700 mm wide and 2800 mm high with a maximum weight of 160 kg.
Multi-component central gasket.
Glazing strips with an additional sealing option.
Glazing thicknesses up to 70.5 mm, enabling all types of double and triple glazing with allowances for acoustic and security, and anti-burglary glazing.
PAS24 and Secured by Design certified.
Large, wire-free glass areas.
Appropriate for a variety of hardware, including concealed hinges.
Water draining available in both traditional and concealed options.
Highly energy efficient from 0.5 W/m²K.
Clean, sharp lines of narrow extruded aluminium framing.
Various finishes available.

System Performance:

Air permeability to EN 12207:2001: Class 4.
Wind load resistance to EN 12210:2001: Class C5.
Watertightness to EN 12208:2001: Class E1950.
Acoustic test to EN ISO 717-1: 47 dB R_w (-2;-6).
Thermal insulation performance to meet the latest Part L requirements: U_w from 0.72 W/m²K.
PAS 24 and Secured by Design certification available

General information

Finish	Anodized Powder-coated Matt Gloss Textured Manufacturer guidance Bespoke dependent on requirements.
Material	Aluminium
Shape	Rectangle Square Other
Length	Bespoke
Width	Bespoke
Height	Bespoke
Warranty description	25 year Guidance for specification option: Polyester powder coating. Consult manufacturer for details of marine and industrial environments. Ten year Guidance for specification option: Anodized.

Uniclass	Pr_30_59_98_02 Aluminium window unitsPrimary
CAWS	L10/25 Aluminium windows L10/330 Aluminium windows

Specification data - Aluminium window units

Standard	Non-fire and/ or smoke rated windows to EN 14351-1 and BS 4873. Manufacturer guidance Consult manufacturer for details.
Third-party certification	CE marked; Q-Mark; ITB - EPD Certification; Qualicoat/ Qualanod/ Qualideco; Secured by Design. Manufacturer guidance Consult manufacturer for details.
Dimensions and configurations	- Manufacturer guidance Consult manufacturer for details and insert requirements. Technical characteristics: Depth of frame: 77 mm. Depth of leaf: 86 mm. Size (h x w): 2800 x 1700 mm (maximum). Weight: 150 kg (maximum).
Product performance	-
Fire performance	-
Fire resistance	not applicable
Fire egress	not applicable
Weather performance	-
Air permeability	To EN 12207:2001: Class 4.
Watertightness	To EN 12208:2001: Class E1500.
Resistance to wind load	To EN12210:2001: Class C5.
Safety	-
Anti-ligature standard	not applicable
Security level	To Secured by Design standard. To PAS 24. To BS EN 1627, RC 3.
Thermal	-
Whole window U-value	- Manufacturer guidance Consult manufacturer for details and insert requirements. Thermal insulation (U_f): od 0.57 W/m²K.
Frame	-
Profile	Aluprof K Range suitable for the project. Guidance for specification option: Consult manufacturer for details and insert requirements.
Finish as delivered	-
Coating	Anodized. Polyester powder coated. Manufacturer guidance Consult manufacturer for details and insert requirements.
Colour	- Manufacturer guidance Consult manufacturer for details and insert requirements.
Film thickness (minimum)	Minimum 60 microns for polyester powder coated profiles Minimum 25 microns for anodized profiles.
Glazing or infill	-
Standard	Relevant parts of BS EN 1279.
Requirements	- Manufacturer guidance Consult manufacturer for details and insert requirements, including beading. Glazing thickness: 13.5–61 mm for fixed frame and 21–70 mm for opening vent.
Hardware	Silver. White. Brown. Silver anodized. RAL colour to match frame. Guidance for specification option: Specify if interior and exterior values differ. Manufacturer guidance Consult manufacturer for details and insert requirements.
Operation	-
Type	Fixed. Manual. Teleflex winding gear. Electronic actuators.
Fixing features	Lug fix. Direct fix. Curtain wall adaptor. Manufacturer guidance Consult manufacturer for details and insert requirements.
Execution	See Installation for details.

Type	Super insulation framed system Guidance for specification option: K518612X. Manufacturer guidance Various profile options available. Consult literature for details.
Ironmongery	- Manufacturer guidance Consult manufacturer for details and insert requirements.
Accessories	- Manufacturer guidance Consult manufacturer for details and insert requirements.
Installation	The MB-86 window system specified above shall be fabricated and installed by Aluprof approved companies only, in complete accordance with the information and guidance distributed by Aluprof UK Ltd.

Sustainability data

Contains Red List materials	No
Country of product manufacture	United Kingdom
Recyclability	- Manufacturer guidance Cradle to Cradle.
Recycled content As defined in clause 7.8 of BS EN ISO 14021	59.57 %
